119
Maintenance and Monitoring
Wireless Settings
Event Log
To view transmit/receive statistics for a particular access point, navigate to Status >
Events on the Administration Web pages for the access point you want to monitor.

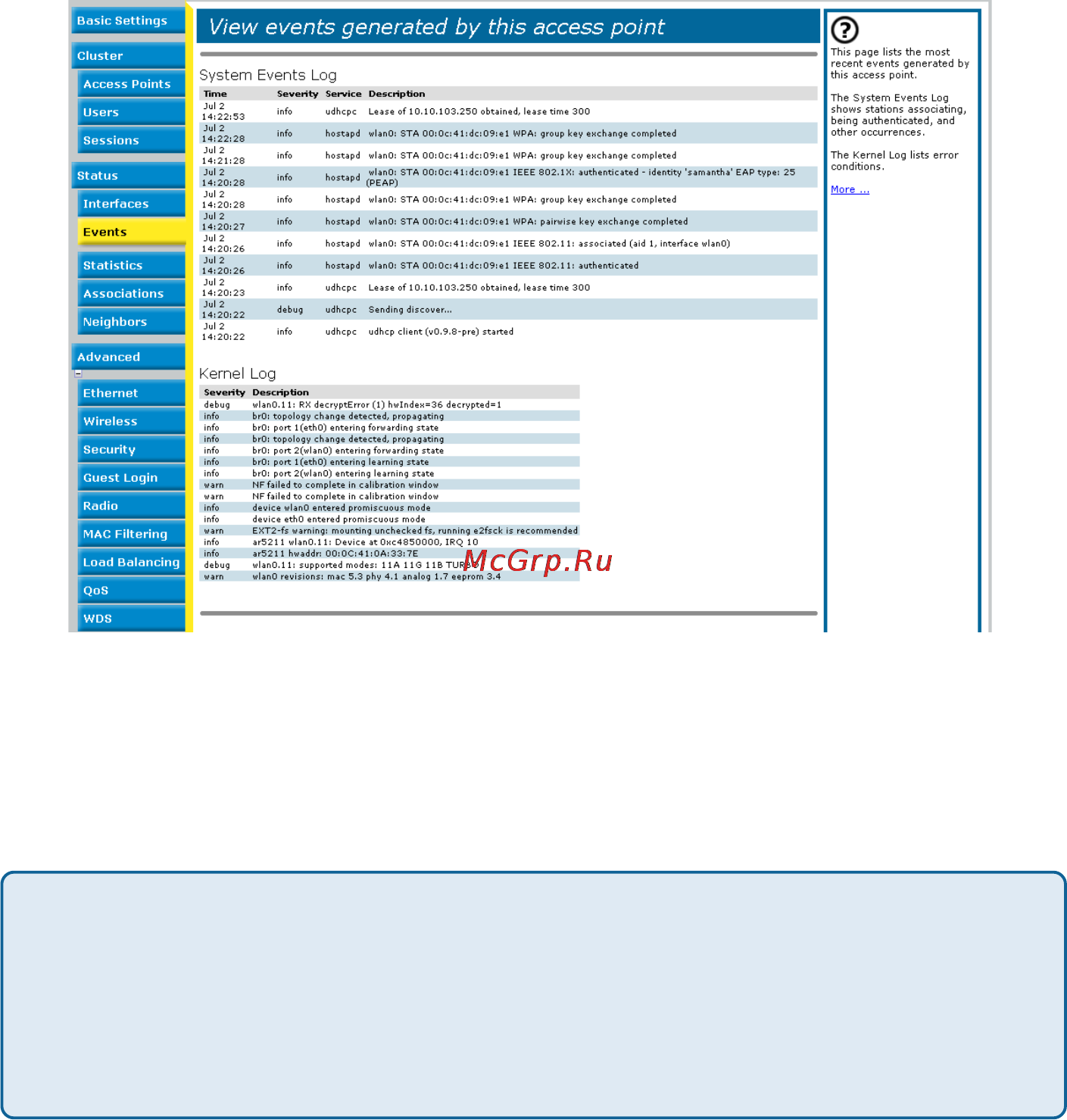

This page lists the most recent events generated by this access point.
It displays the System Events Log, which shows stations associating, being
authenticated, and other occurrences.
It provides a Kernel Log, which lists error conditions, such as dropping frames.
The D-Link DWL-2210AP acquires its date and time information using the
network time protocol (NTP). This data is reported in UTC format (also known
as Greenwich Mean Time). You need to convert the reported time to your
local time.
For information on setting the network time protocol, see “Enabling the Network
Time Protocol Server” in this manual.
The Radio Interface settings radio Mode, and Channel. Also shown here are MAC
addresses (read-only) for internal and guest interfaces. (See “Setting the Wireless
Interface” in this manual and “Configuring Radio Settings” in this manual for more
information.)
If you want to change any of these settings, click the “Configure” link.
