D-Link DWL-2200AP [33/192] Summary of settings

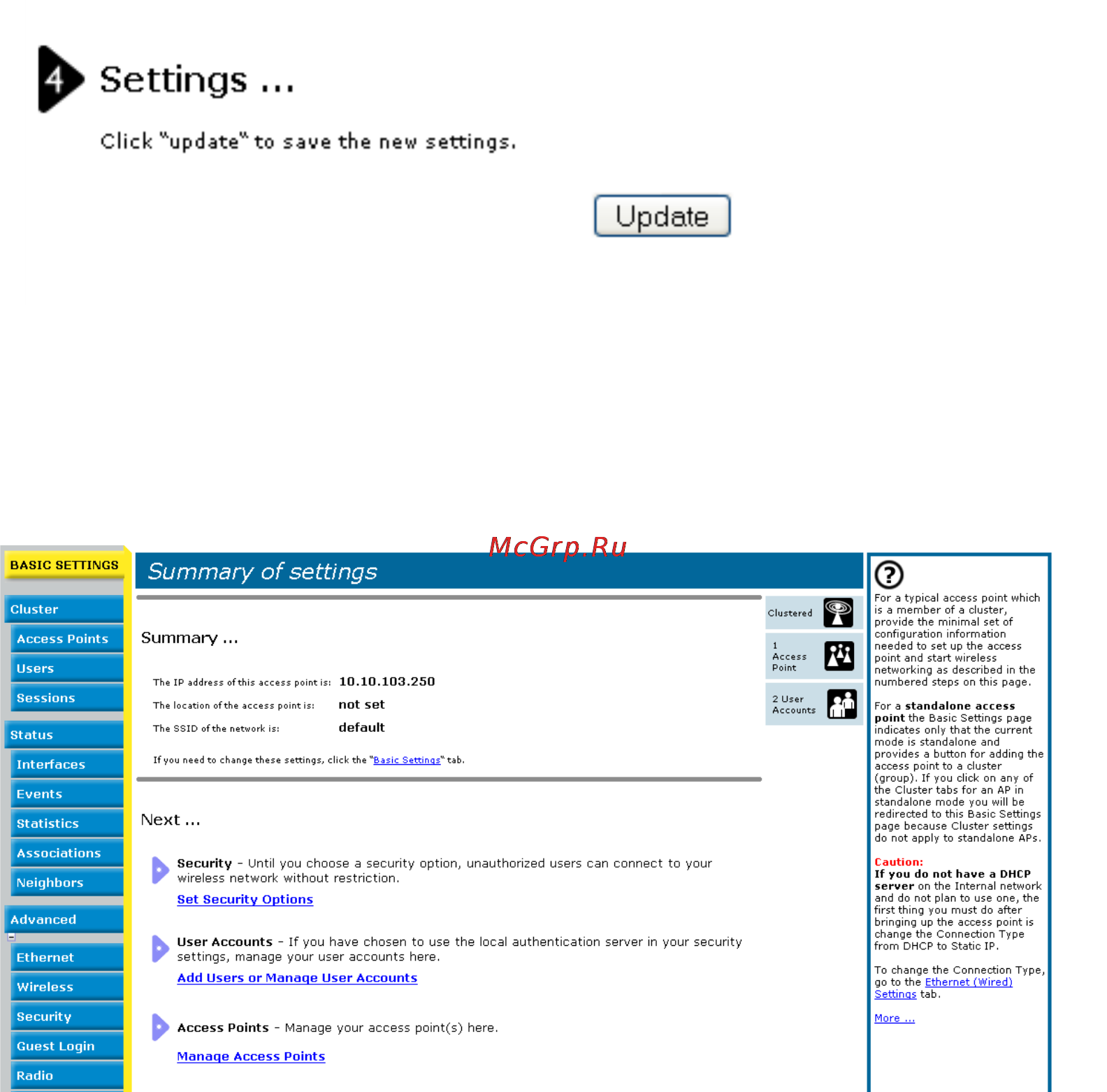

When you have reviewed the new configuration, click Update to apply the settings

and deploy the access points as a wireless network.

Summary of Settings

When you update the Basic Settings, a summary of the new settings is shown along

with information about next steps.

At initial startup, no security is in place on the access point. An important next step is

to configure security, as described in “Configuring Security” in this manual.

At this point if you click Basic Settings again, the summary of settings page is replaced

by the standard Basic Settings configuration options.

Update Basic Settings

Configuring Basic Settings
