125
Maintenance and Monitoring
Upgrading the Firmware
As new versions of the D-Link DWL-2210AP firmware become available, you can
upgrade the firmware on your devices to take advantages of new features and
enhancements.
To upgrade the firmware on a particular access point:
1. Navigate to Advanced > Upgrade on the Administration Web pages for that
access point.
You must do this per access point; you cannot upgrade firmware automatically
across the cluster. Keep in mind that a successful firmware upgrade restores
the access point configuration to the factory defaults. (See “Default Settings for
the D-Link DWL-2210AP” in this manual.)

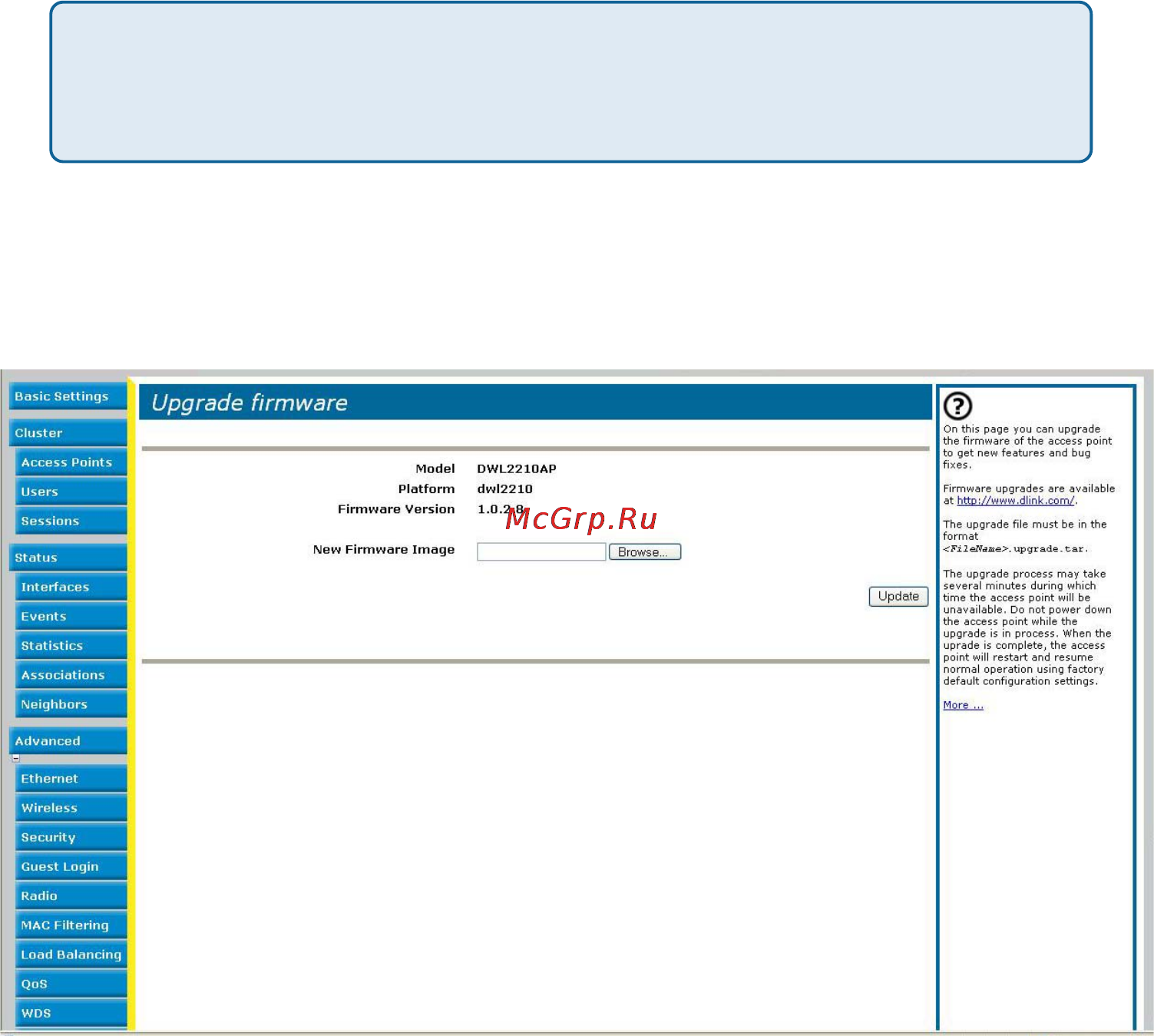

2. If you know the path to the New Firmware Image file, enter it in the textbox.
Otherwise, click the Browse button and locate the firmware image file.
Information about the current firmware version is displayed and an option to
upgrade a new firmware image is provided.
