D-Link DWL-2200AP [124/192] Resetting the configuration

124

Maintenance and Monitoring

Resetting the Configuration

If you are experiencing extreme problems with the D-Link DWL-2210AP and have tried

all other troubleshooting measures, use the Reset Configuration function. This will

restore factory defaults and clear all settings, including settings such as a new password

or wireless settings.

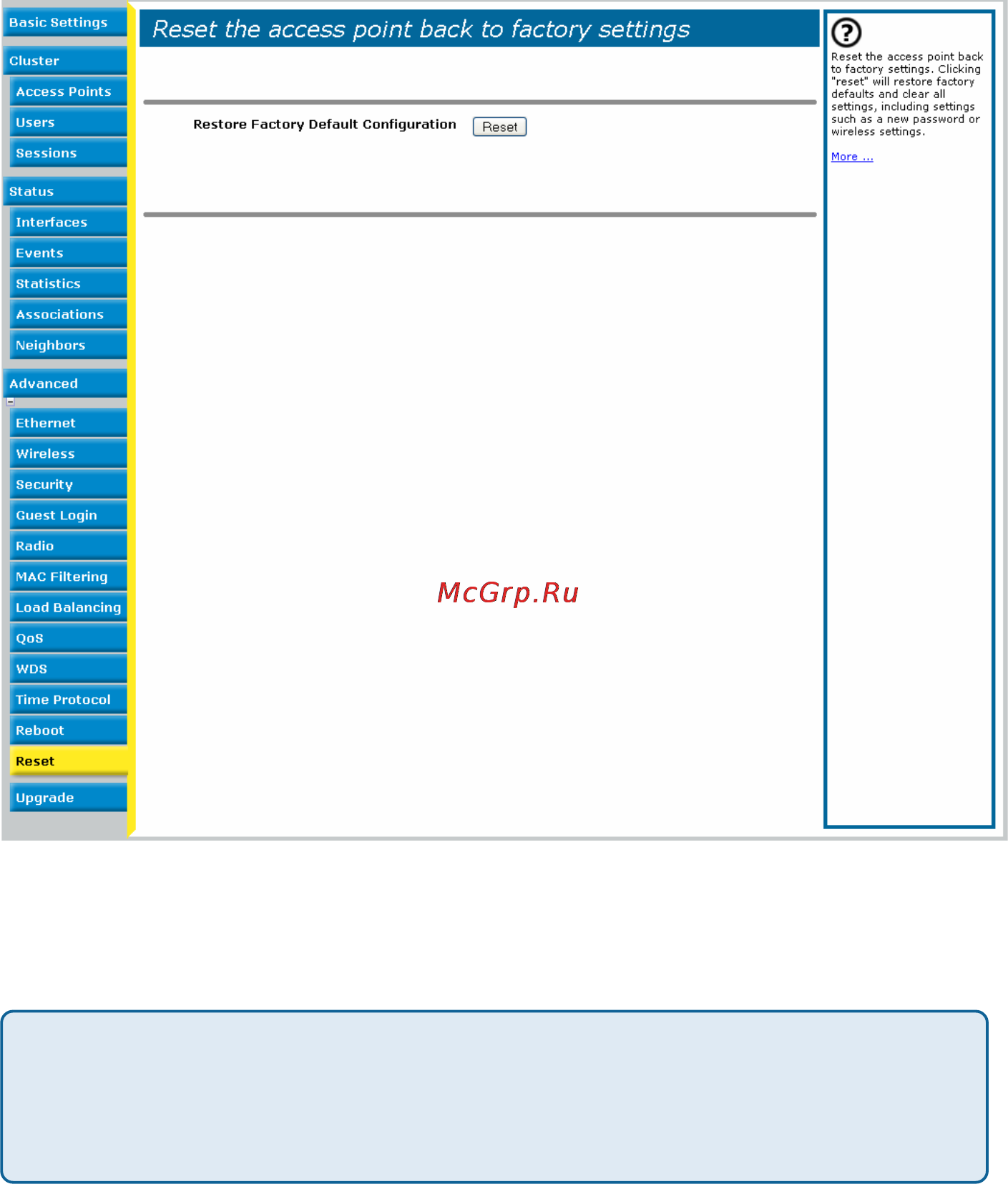

1. Click the Advanced > Reset tab.

2. Click the Reset button.

Factory defaults are restored.

Keep in mind that if you do reset the configuration from this page, you are

doing so for this access point only; not for other access points in the cluster.

For information on the factory default settings, see “Default Settings for the

D-Link DWL-2210AP” in this manual.
