D-Link DWL-2200AP [116/192] Deployment example

116

Setting up Guest Access

Deployment Example

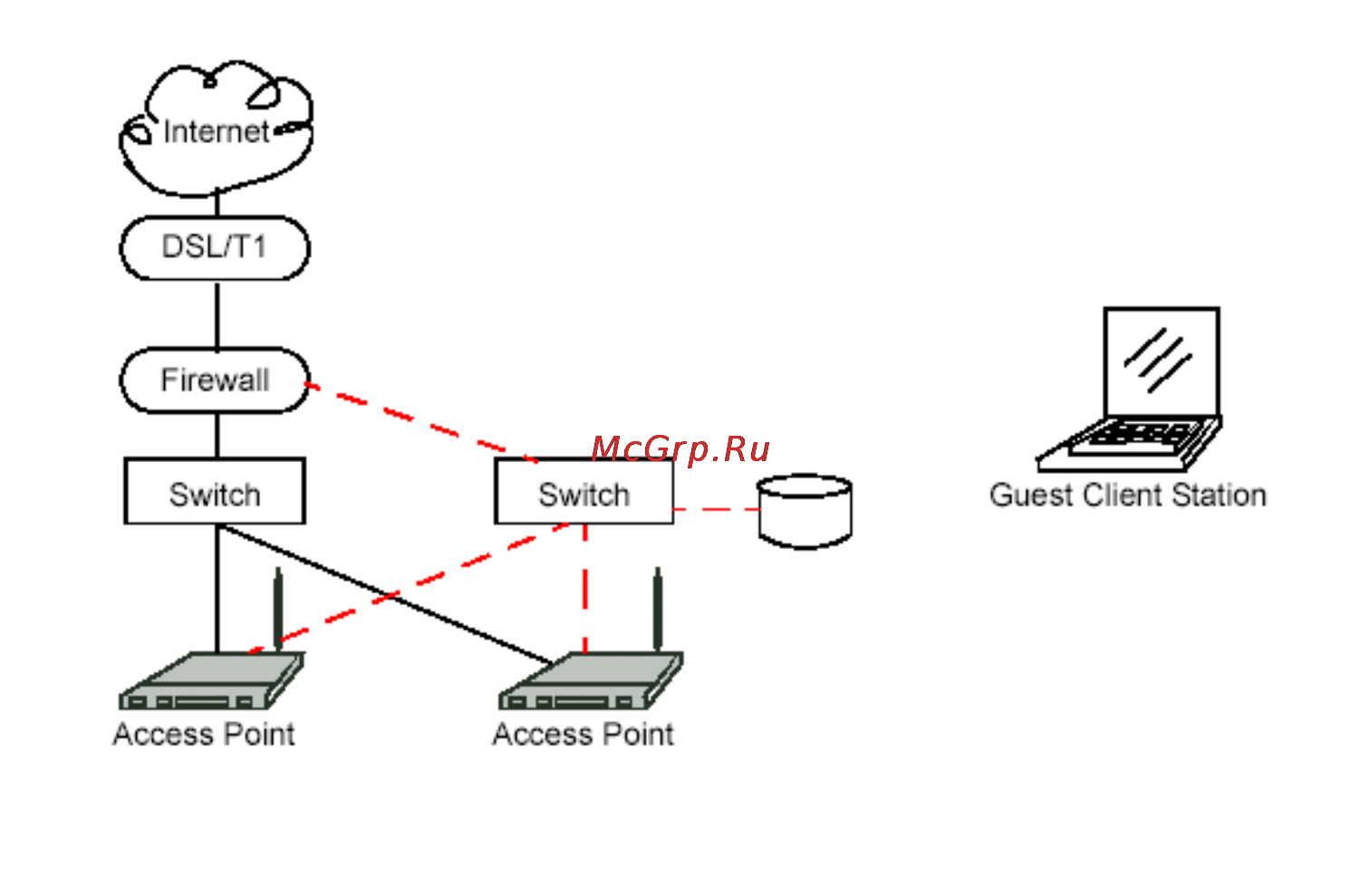

In the figure below, the dotted red lines indicate dedicated guest connections.

All access points and all connections (including guests) are administered from the same

D-Link DWL-2210AP Administration Web pages.
