72

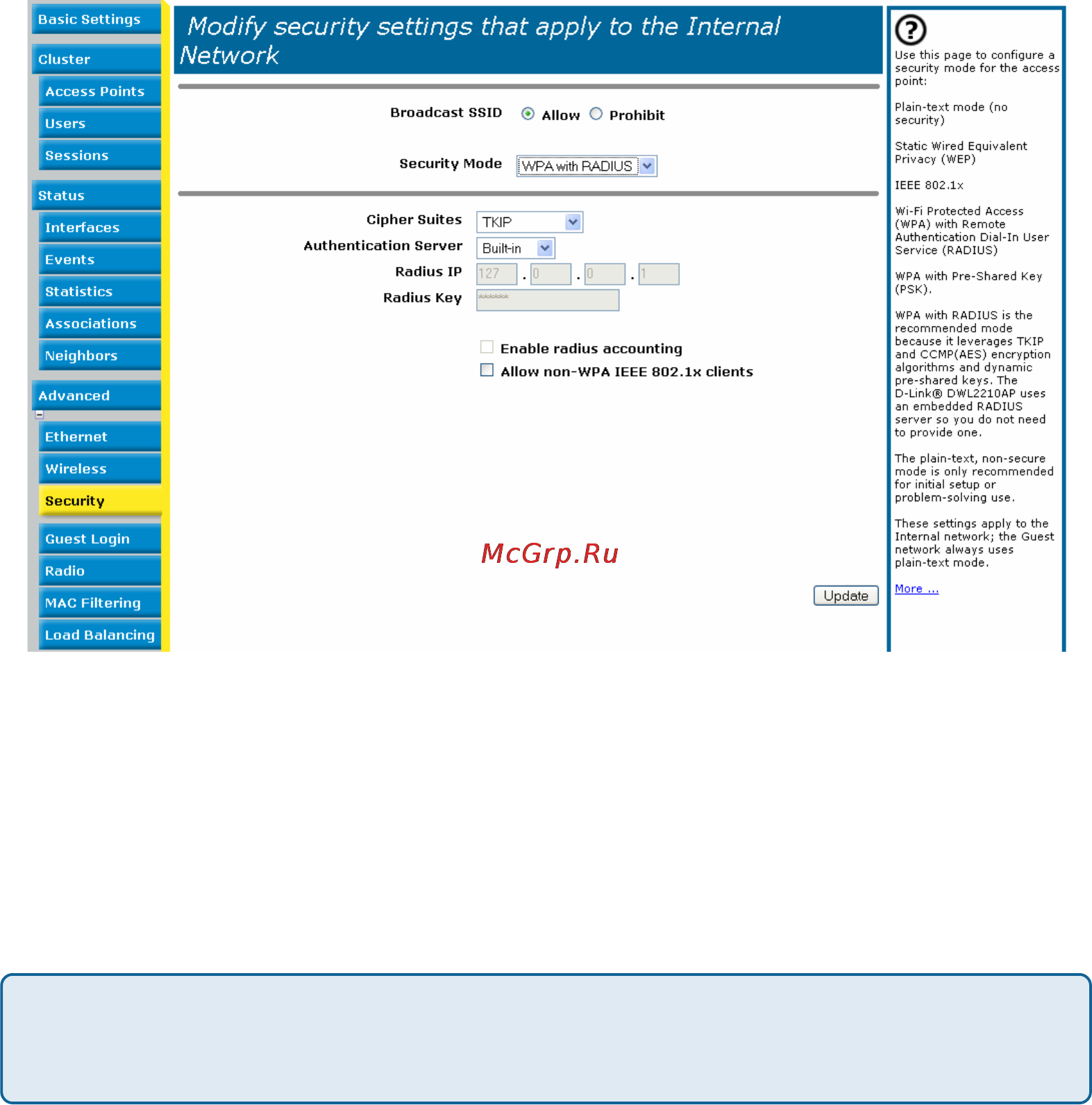

Navigating to Security Settings
To set the security mode, navigate to the Advanced > Security tab, and update the
fields as described below.
Configuring Security Settings
The following configuration information explains how to configure security modes on the
access point. Keep in mind that each wireless client that wants to exchange data with
the access point must be configured with the same security mode and encryption key
settings consistent with access point security.
On a two-radio AP, these security settings apply to both radios.
Broadcast SSID and Security Mode
To configure security on the access point, select a security mode and fill in the related
fields as described in the following table. (Note you can also allow or prohibit the Broadcast
SSID as an extra precaution as mentioned below.)
Security modes other than Plaintext apply only to configuration of the “Internal” network.
On the “Guest” network, you can use only Plaintext mode. (For more information about
guest networks, see “Setting up Guest Access” in this manual.)
Configuring Security
