Appendix A: Configuring Security Settings on Wireless Clients
1. Configure the following settings on the Association tab on the Network Properties
dialog.
Enable (click to check) this option.
Choose Smart Card or other Certificate.
Authentication Tab
Enable IEEE 802.1x
authentication for this network
EAP Type
2. Configure these settings on the Authentication tab.
Association Tab
Network Authentication Open
Data Encryption WEP
Note: An RC4 stream cipher is used to encrypt the
frame body and cyclic redundancy checking (CRC) of
each IEEE 802.11 frame. This is the same encryption
algorithm as is used for Static WEP; therefore, the data
encryption method configured on the client for this
mode is WEP.
This key is provided for me
automatically
Enable (click to check)
Select (check) the name of
certificate on this client
(RADIUS server
in a prerequisite procedure)

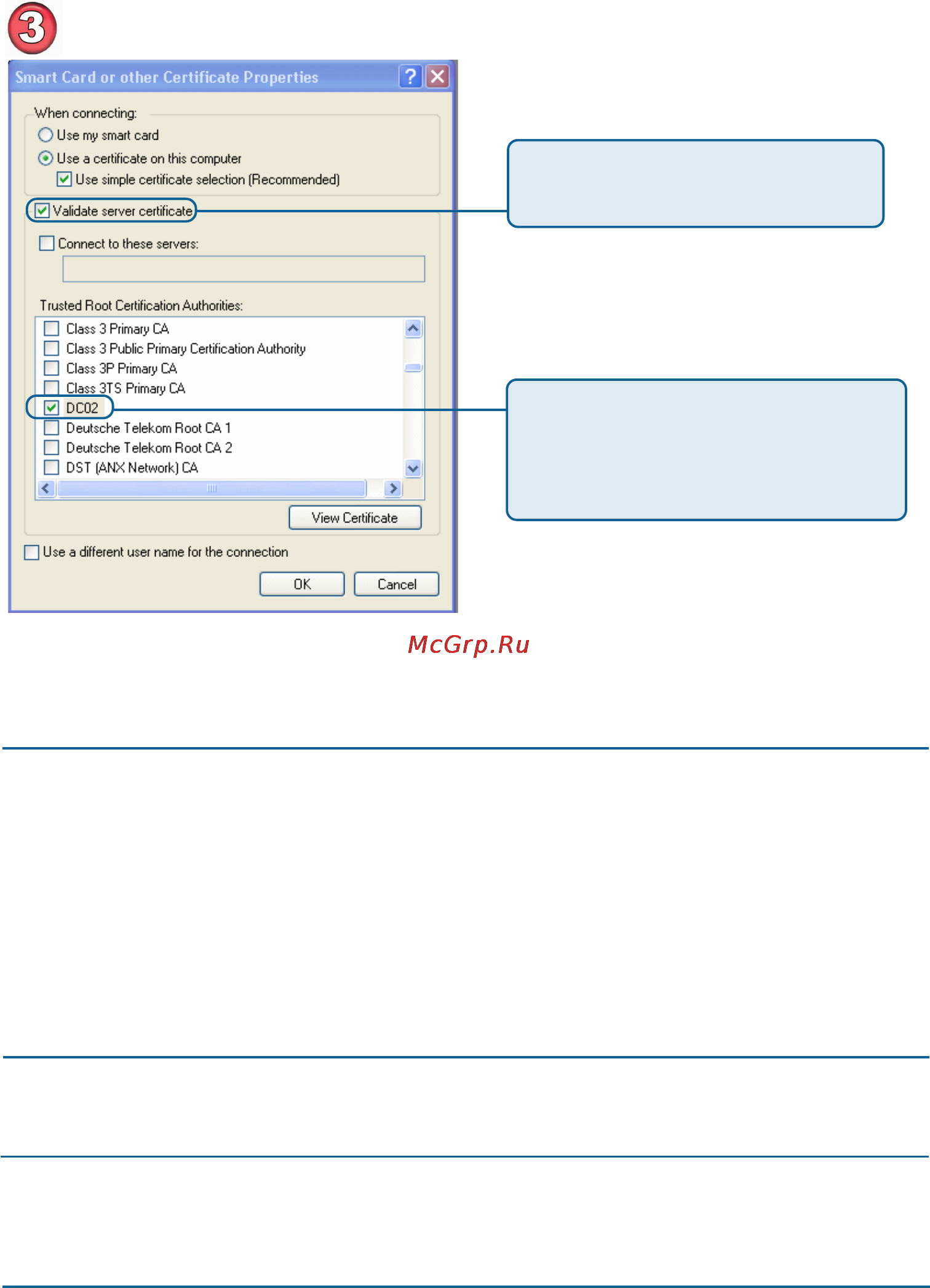

Enable (click to check) “validate
server certificate.”
