133

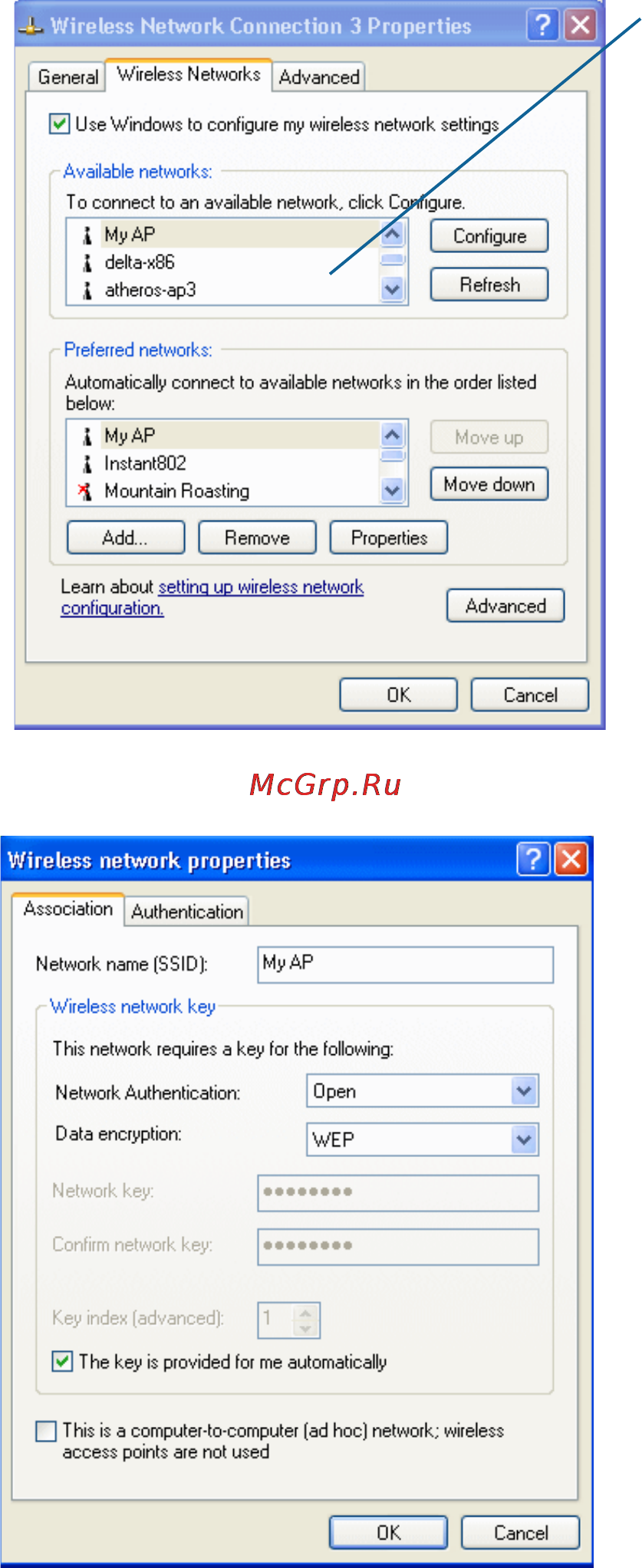

List of available networks will
change depending on client
location. Each network (or access
point) that is detected by the client
shows up in this list. (“Refresh”
updates the list with current
information.)
For each network you want to
connect to, configure security
settings on the client to match the
security mode being used by that
network.
Note: The exception to this is if the
AP is configured to prohibit
broadcast of its network name, the
name will not show on this list. In
that case you would need to type
in the exact network name to be
able to connect to it.
Appendix A: Configuring Security Settings on Wireless Clients
This brings up the Wireless
Network Connection Properties
dialog with the Association and
Authentication tabs for the selected
network.
From the list of “Available networks”,
select the SSID of the network to
which you want to connect and
click Configure.
Use this dialog for configuring all
the different types of client security
described in the following
sections. Make sure that the
Wireless Network Properties
dialog you are working in pertains
to the Network Name (SSID) for
the network you want to reach on
the wireless client you are
configuring.
2.
