139

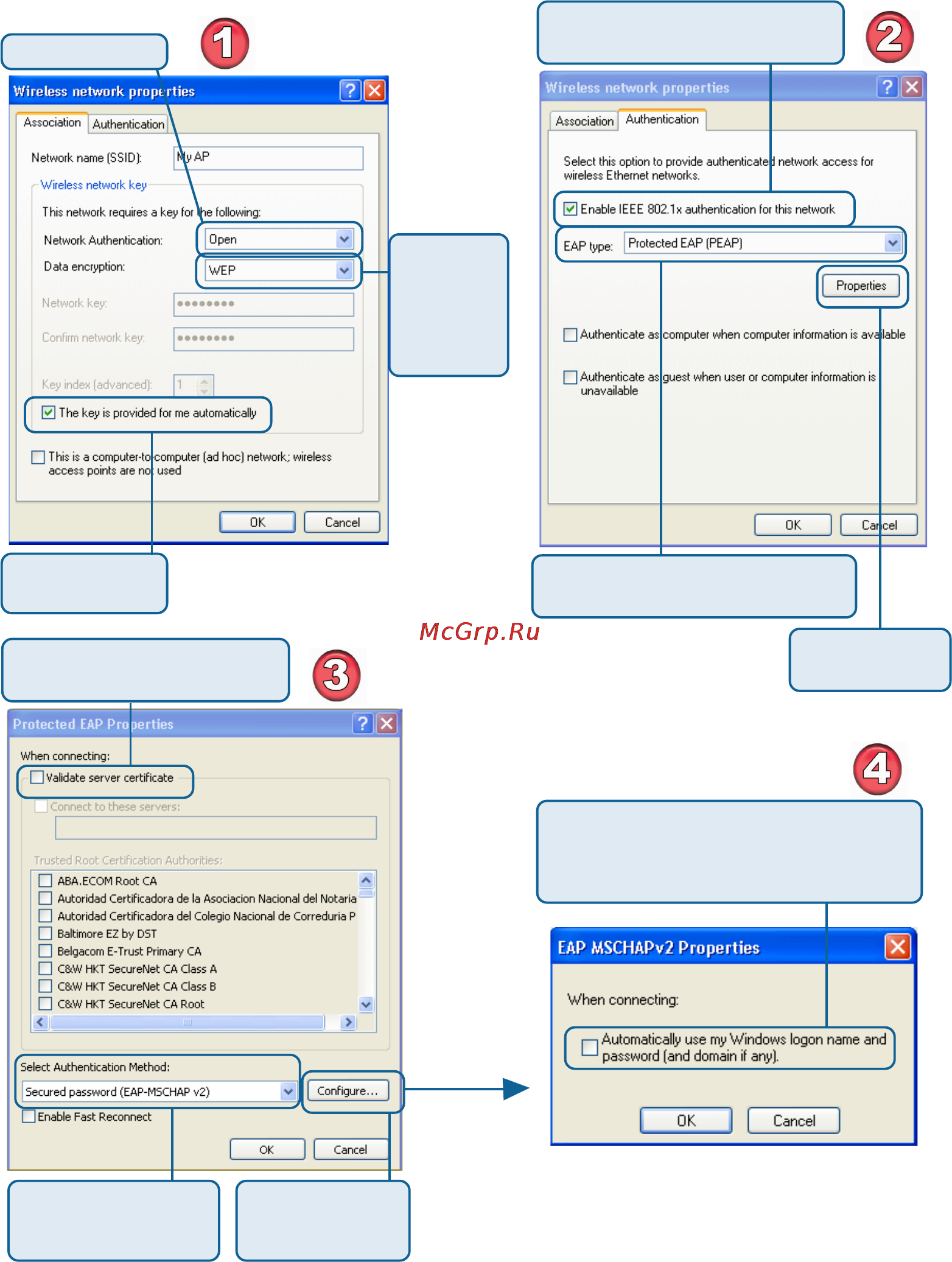

Appendix A: Configuring Security Settings on Wireless Clients

Choose

WEP

Data

Encryption

mode

Enable auto

key option

Choose Protected EAP (PEAP)

Disable (click to uncheck)

“Validate server certificate”

Choose “secured

password (EAP-

MSCHAP v2)”

. . . then click

“Configure”

Choose Open

. . . then, click

“Properties”

Enable (click to check) IEEE

802.1x authentication

Disable (click to uncheck) option to

automatically use Windows logon

name and password
