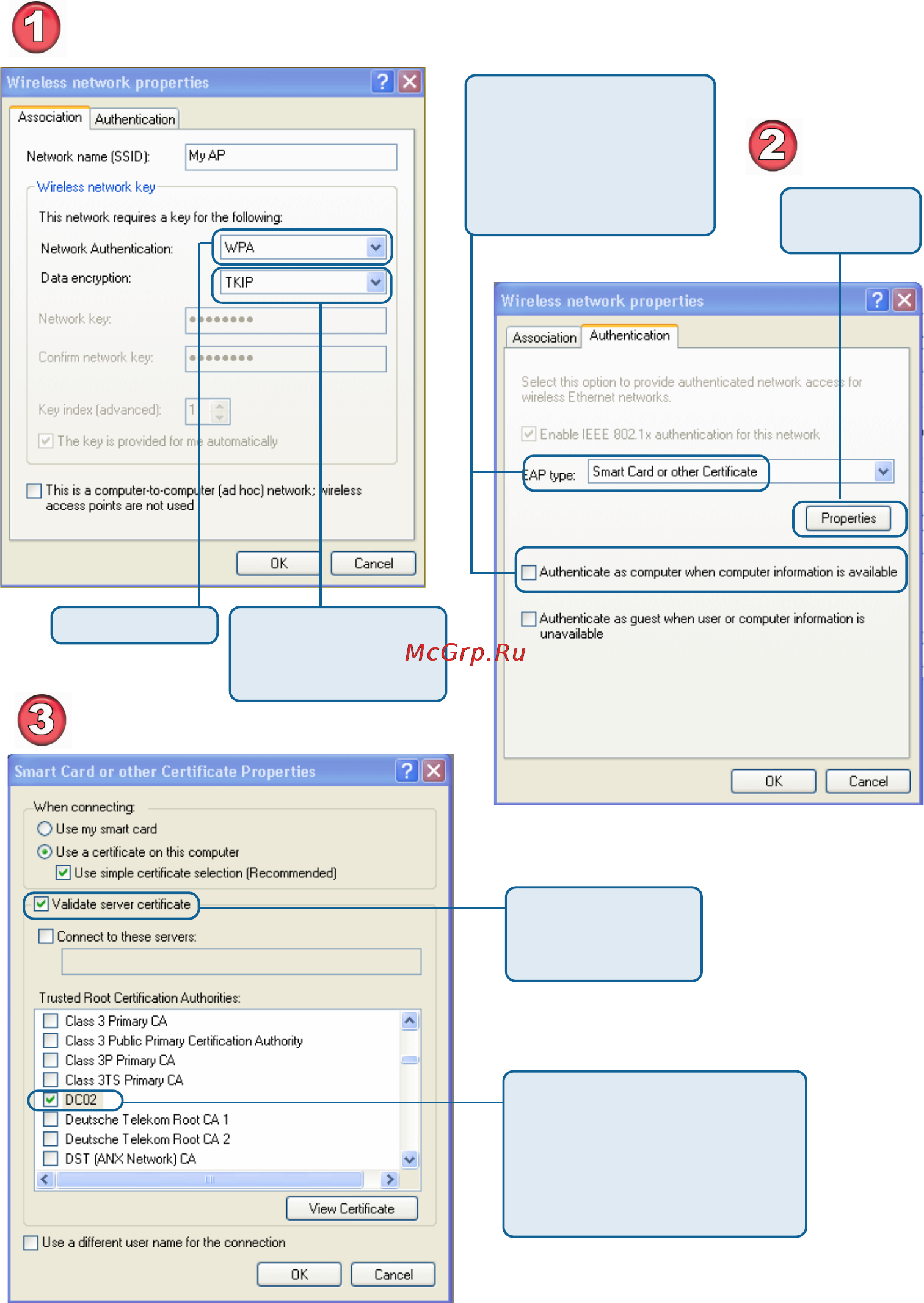

Appendix A: Configuring Security Settings on Wireless Clients

Choose WPA

Choose either TKIP

or AES for the Data

Encryption mode

Choose Smart Card or

other certificate and

enable “Authenticate

as computer when info

is available”

Then click

“Properties”

Enable (click to

check) “Validate

server certificate”

Select (check) the name of

the certificate on this client

(RADIUS

server in a prerequisite

procedure)
