156

Appendix A: Configuring Security Settings on Wireless Clients

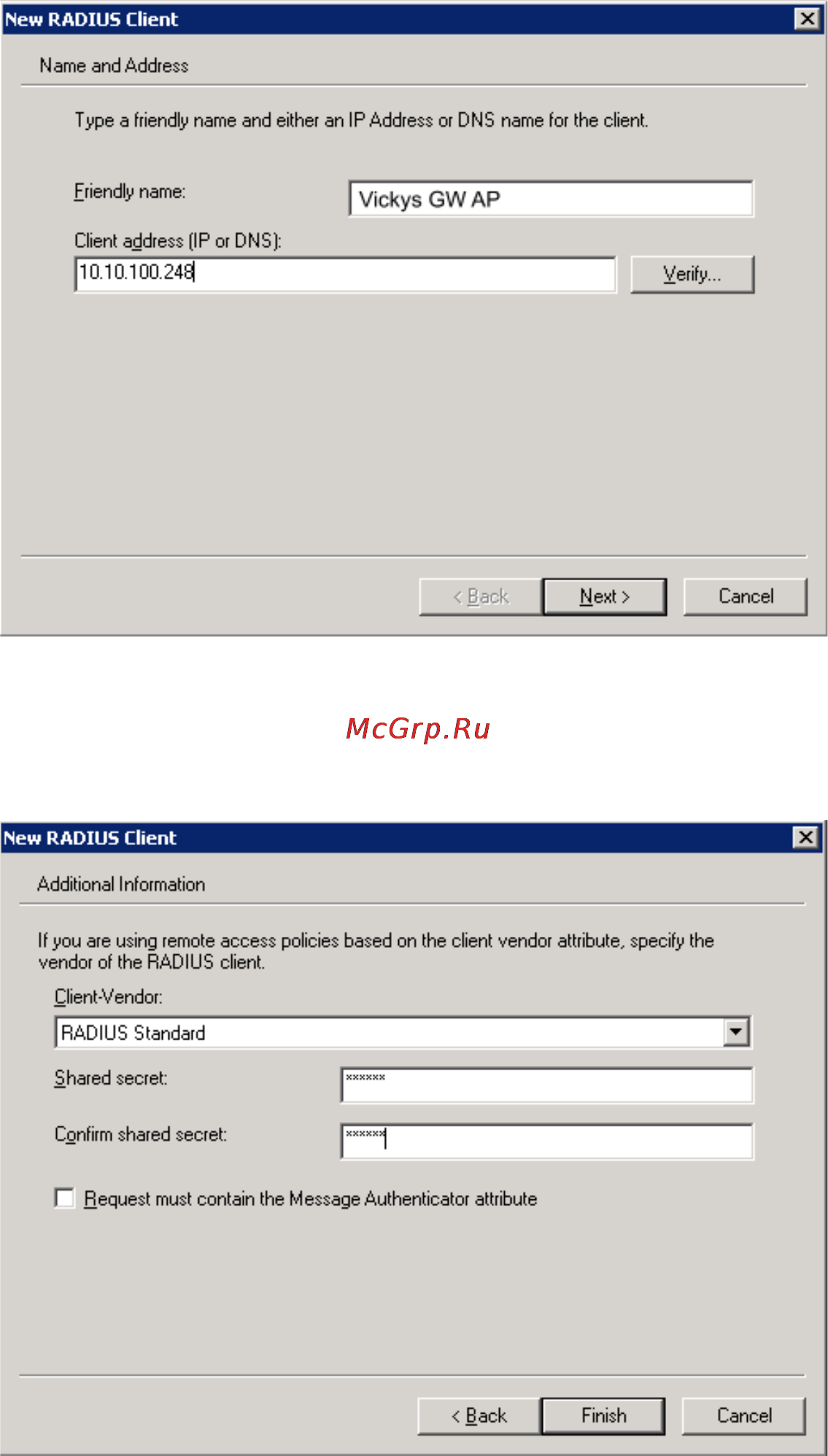

4. For the “Shared secret” enter the RADIUS Key you provided to the access point (on

the Advanced >Security page). Retype the key to confirm.

• IP address for the access point.

Click Next.
