161

Appendix A: Configuring Security Settings on Wireless Clients

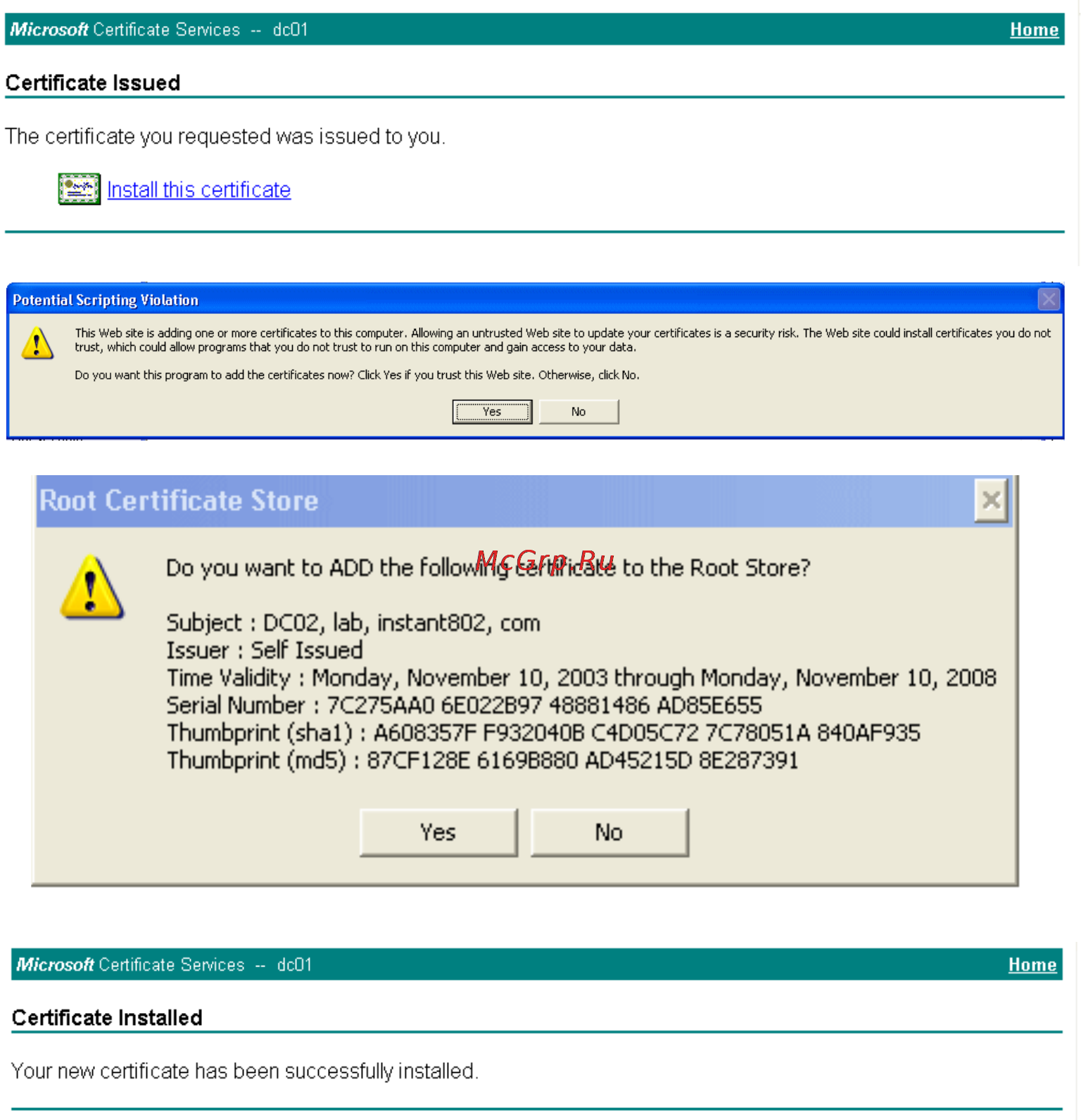

8. Click “Install this certificate” to install the newly issued certificate on your client

station. (Also, click “Yes” on the popup windows to confirm the install and to add the

certificate to the Root Store.)
