Chapter1 Basic Configuration

1-11

1.3.3.2 Use Public Key to Login by SSH

Process

The following configuration steps are taking the example of Secure CRT

implementation.

1. Create private/public key (generate public key via Secure CRT) by

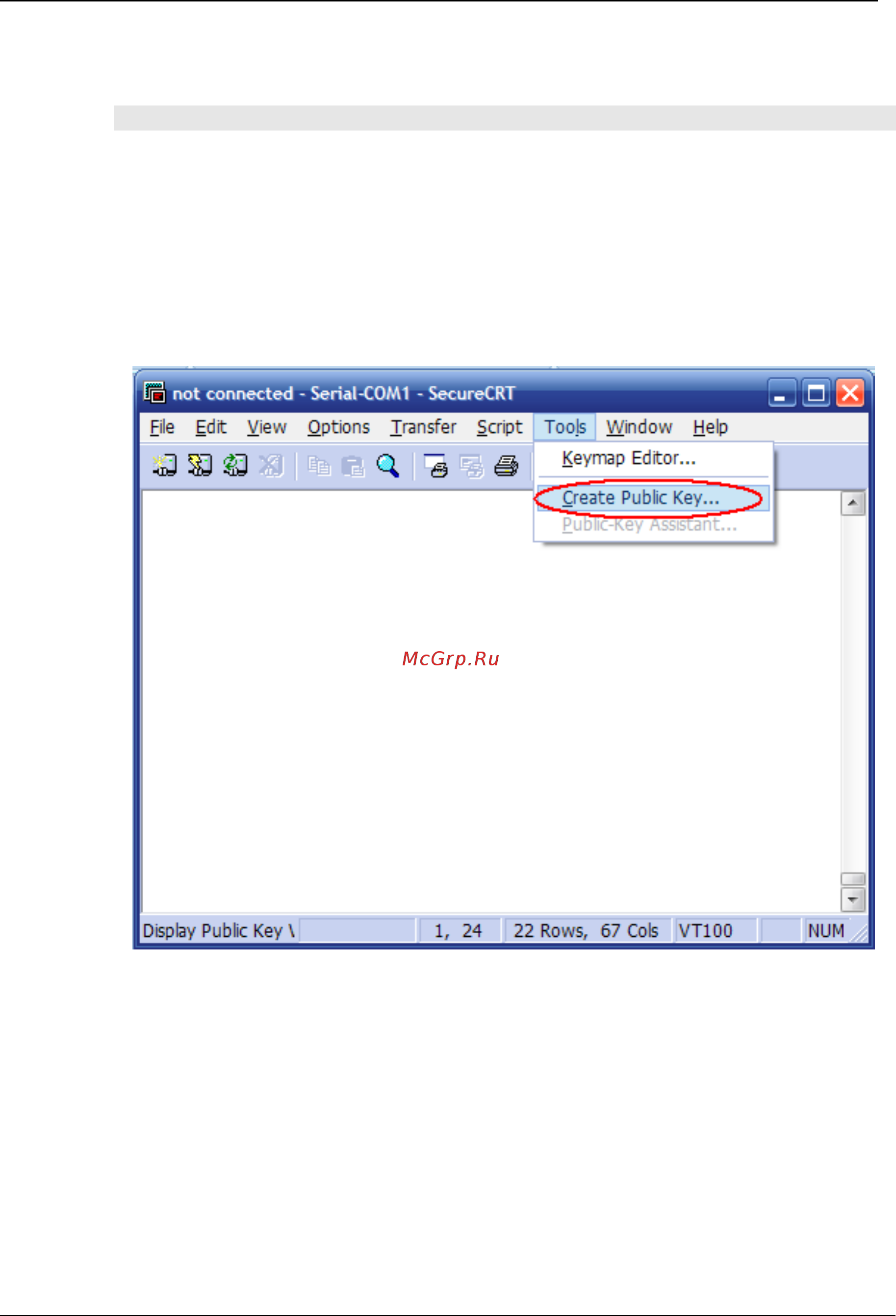

clicking option „Create Public Key‟ in the Tools of Secure CRT menu bar,

referring to Figure Create Private/Public Key

Figure Create Private/Public Key

2. Click „Next‟ button from pop-up dialog [Key Generation Wizard], referring

to Figure Generate SSH Private/Public Key (1):
