Chapter8 Reliability Configuration

8-40

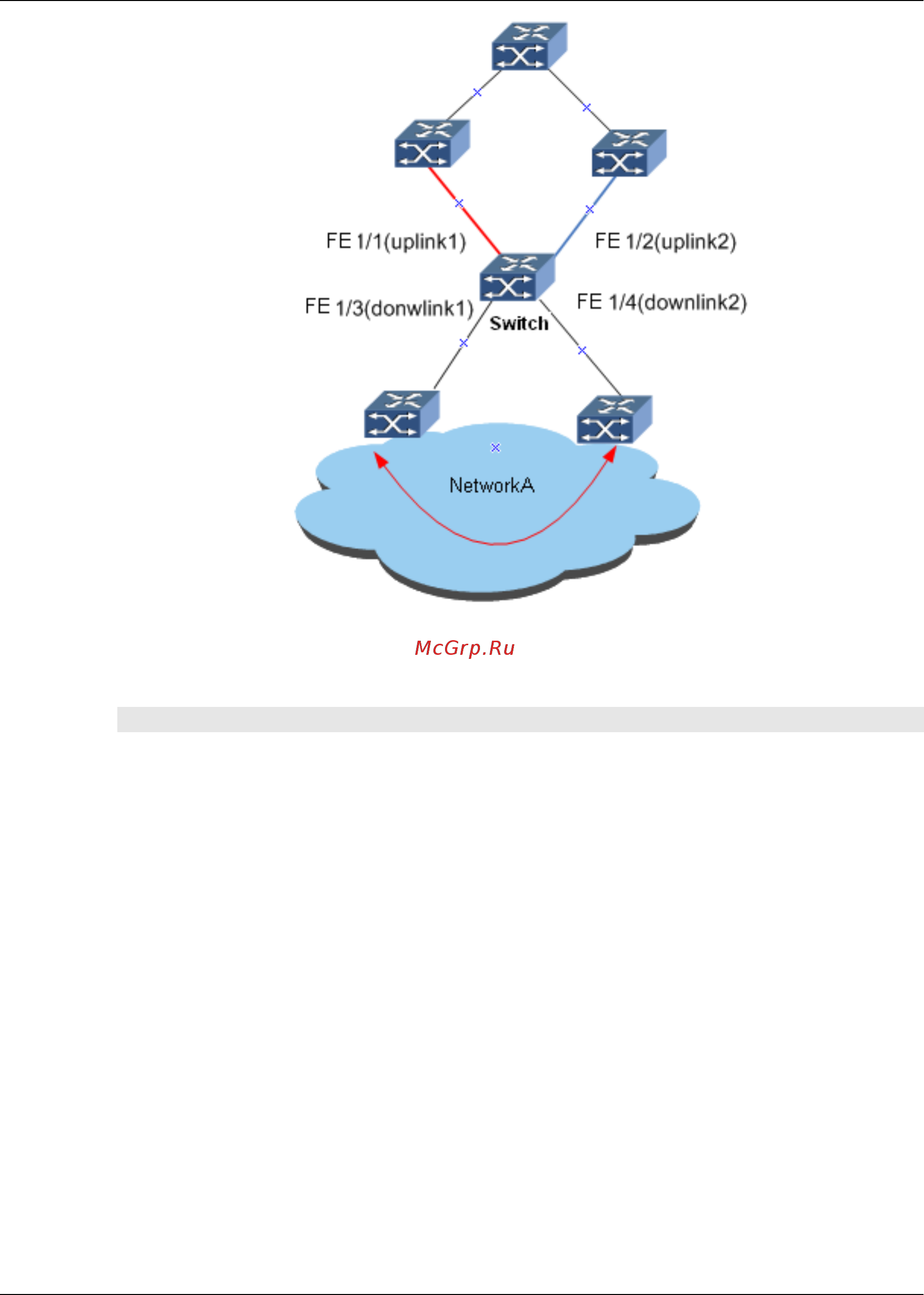

Figure MLINK Linkage Function Topology

Configuration Steps

1. Create MLINK group.

Switch#configure

Switch(config)#mlink group 1

Switch(config-mlink1)#quit

Switch(config)#

2. Add fe1/1 to MLINK group1 and make it to be uplink1 interface.

Switch(config)#interface fastethernet 1/1

Switch(config-fe1/1)#join mlink group 1 uplink

Switch(config-fe1/1)#mlink enable

Switch(config-fe1/1)#quit

Switch(config)#

3. Add fe1/2 to MLINK group1 and make it to be uplink2 interface.

Switch(config)#interface fastethernet 1/2
