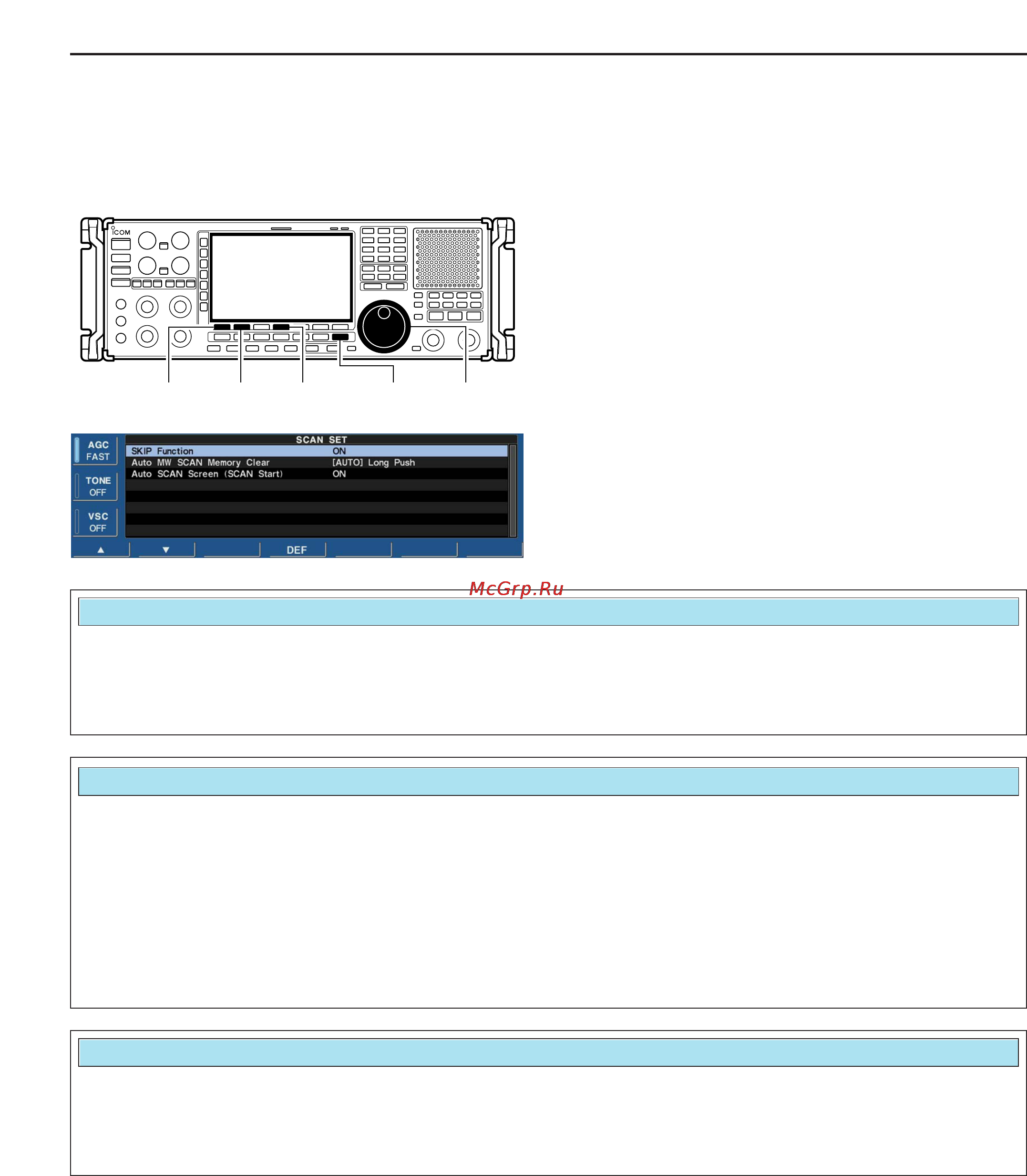

8-4
8
SCANS
■ Scan set mode
This set mode is used to set the skip scan setting,
memory clear condition for auto memory write chan-
nels and appearing scan screen setting.
q Push [F-5•SCAN] to select scan screen.
w Push [F-7•SET] to select scan set mode.
e Push [F-1•Y] or [F-2•Z] to select the desired item.
r Rotate the main dial to select the desired condition.
• Push and hold [F-4•DEF] for 1 sec. to select the default
setting.
t Push [EXIT/SET] to return to scan menu.
[F-1•Y] [F-2•Z] [F-4•DEF] [EXIT/SET] Main dial
Select the skip scan function ON or OFF. • ON : Scan skips the programmed memory channel
in the skip memory bank while scanning (de-
fault)
• OFF : Skip function OFF
SKIP Function
ON
Set the clearing condition for the auto memory write
scan’s memories channels.
•ON: Auto memory channels are cleared when
starting the auto memory write scan.
• [AUTO] Long Push
: Auto memory channels are cleared when
pushing and holding [AUTO]. (default)
• OFF : Auto memory channels must be cleared man-
ually and auto memory write scan stops when
100 channels (A00 to A99) are wrote.
Auto MW SCAN Memory Clear
[AUTO] Long Push
Set the automatic scan screen ON function when
starting a scan.
•ON: When starting a scan, scan screen appears
automatically. (default)
• OFF : Scan screen does not appear until [F-
5•SCAN] is pushed.
Auto SCAN Screen (SCAN Start)
ON
