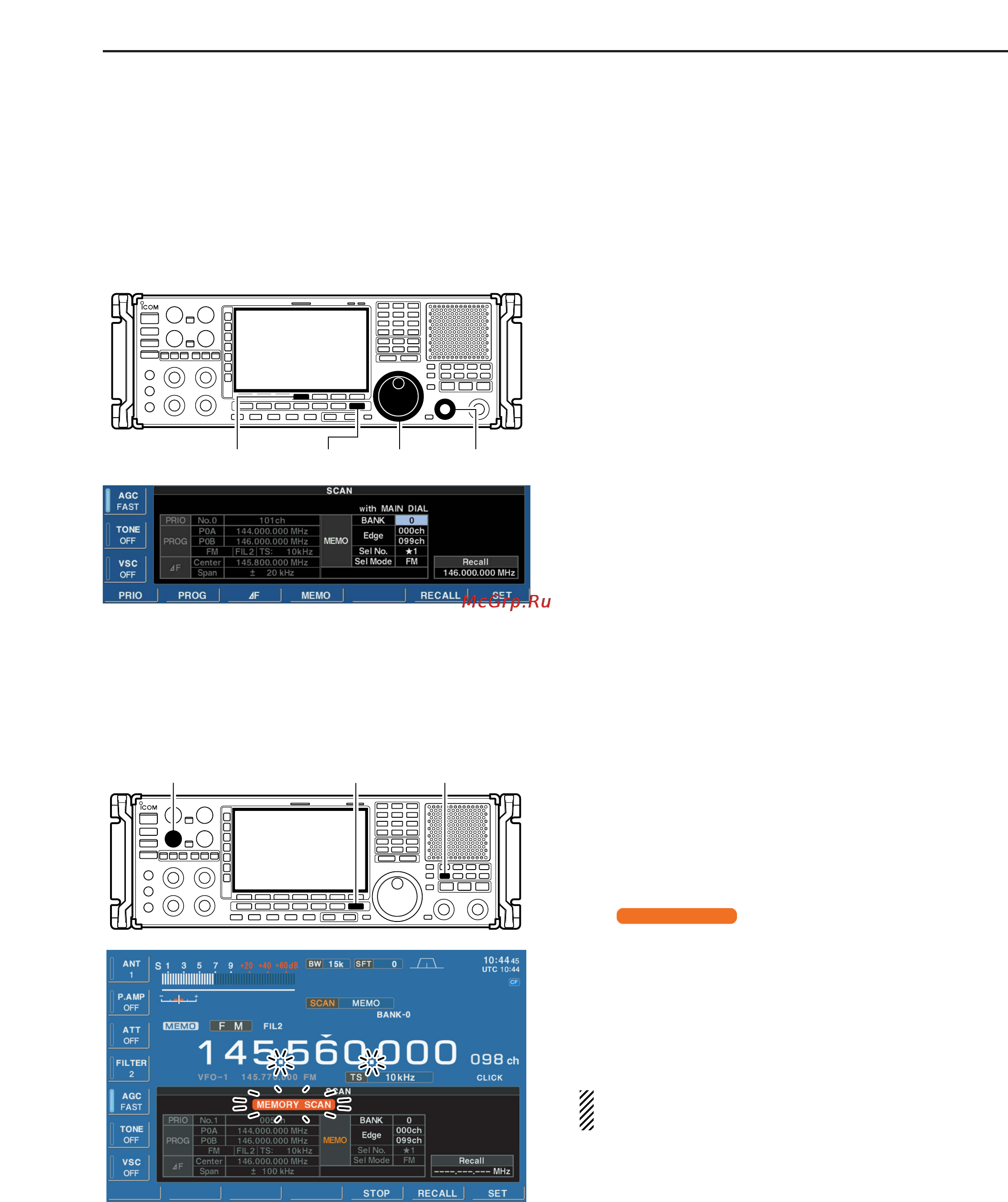

![Icom IC-R9500 [113/194] Memory scan](/views2/1074327/page113/bg71.png)
8-11
8
SCANS
■ Memory scan
All memory channels (except skip channels) in the se-
lected bank are scanned at up to 40 ch/sec.
DD
Setting
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [F-5•SCAN] to select scan setting screen.
e Push [F-4•MEMO] once to enter the bank selection.
r Rotate the main dial to select the bank limit setting.
• Selected bank number or OFF (Bank OFF) appears.
t Or rotate [BANK] to select the other bank.
y Push [F-4•MEMO], then rotate main dial to select
the edge channel.
u Push [F-4•MEMO], then rotate main dial to select
the other edge channel.
i Push [F-4•MEMO], then rotate main dial to select
the desired select memory channel group for select
memory scan.
•‘★1’ to ‘★9’ and ‘ALL’ are available.
o Push [F-4•MEMO] to set the memory scan.
[F-4•MEMO] [EXIT/SET] Main dial [BANK]
DD
Memory scan operation
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Set the [SQUELCH] control open or closed.
• See page 8-3 for squelch condition.
e Push [MEMO] to start the memory scan.
• Scan screen appears and memory mode is selected au-
tomatically.
•“ ” and decimal points blink during
memory scan.
r When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
t To cancel the scan, push [MEMO].
• Pushing [F5•STOP] also cancels the scan.
• Pushing [EXIT/SET] closes the scan screen.
2 or more memory channels must be programmed
for memory scan to start.
MEMORY SCAN
[EXIT/SET] [MEMO][SQUELCH]
