Icom IC-R9500 [33/194] D separately recording audio and frequency

2-9

INSTALLATION AND CONNECTIONS

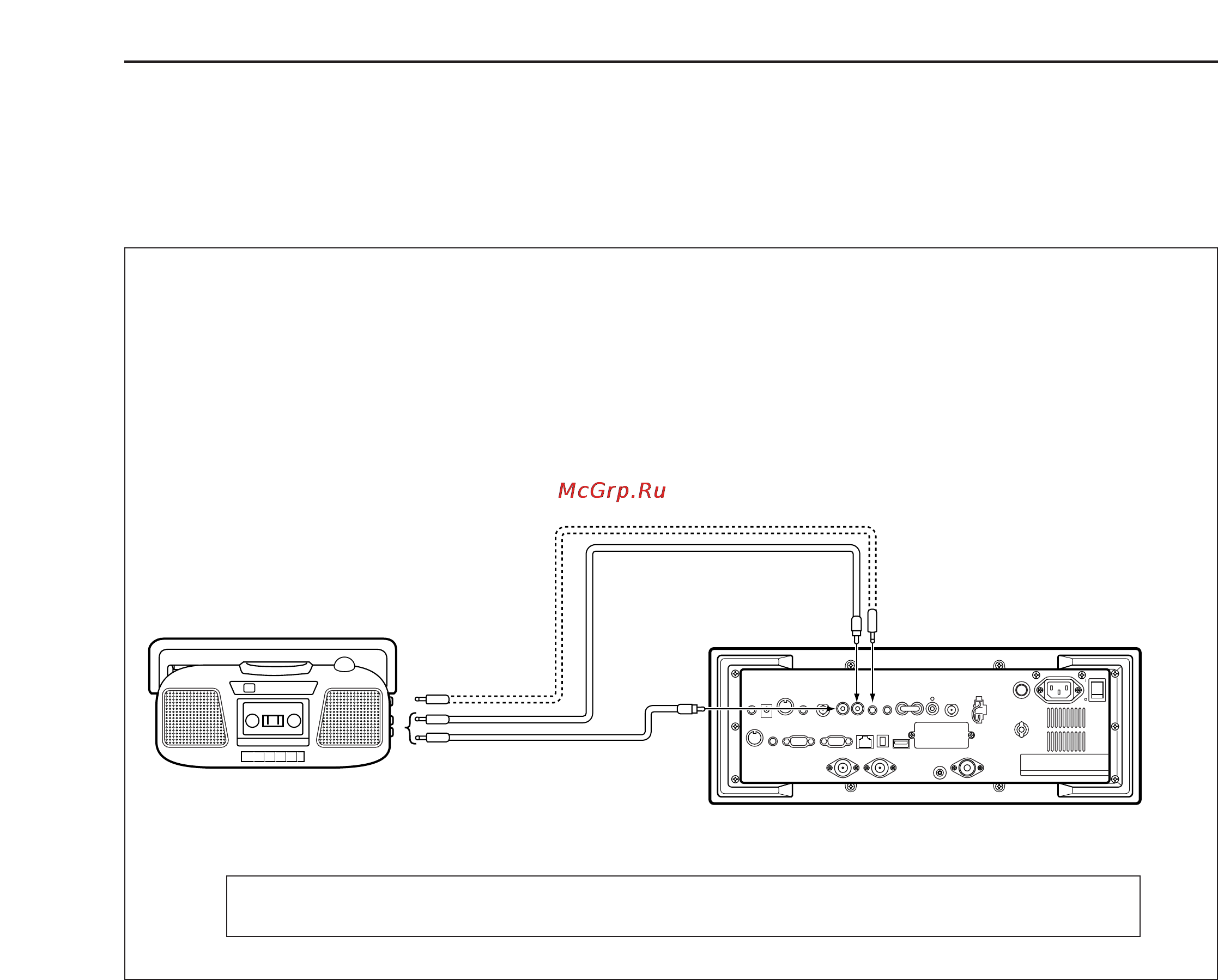

Separately recording audio and frequency

When using a stereo tape recorder for recording,

received audio and a frequency with a synthesized

voice can be separately recorded.

When recording this way, you can search ahead of

the audio signal recorded in the tape recorder using

the frequency recording channel search.

•Be sure the “REC SPEECH” item is turned ON, and “SPEECH Mix” item is select OFF in the others set

mode (p. 11-11).

REAR

[LINE OUT]

350 mVrms

4.7 kΩ

[SPEECH OUT]

350 mVrms

4.7 kΩ

[AUX IN] jacks L and R

[REMOTE] jack

[REC REMOTE]

When you wish to control a tape

recorder via the REMOTE jack.
