10-3

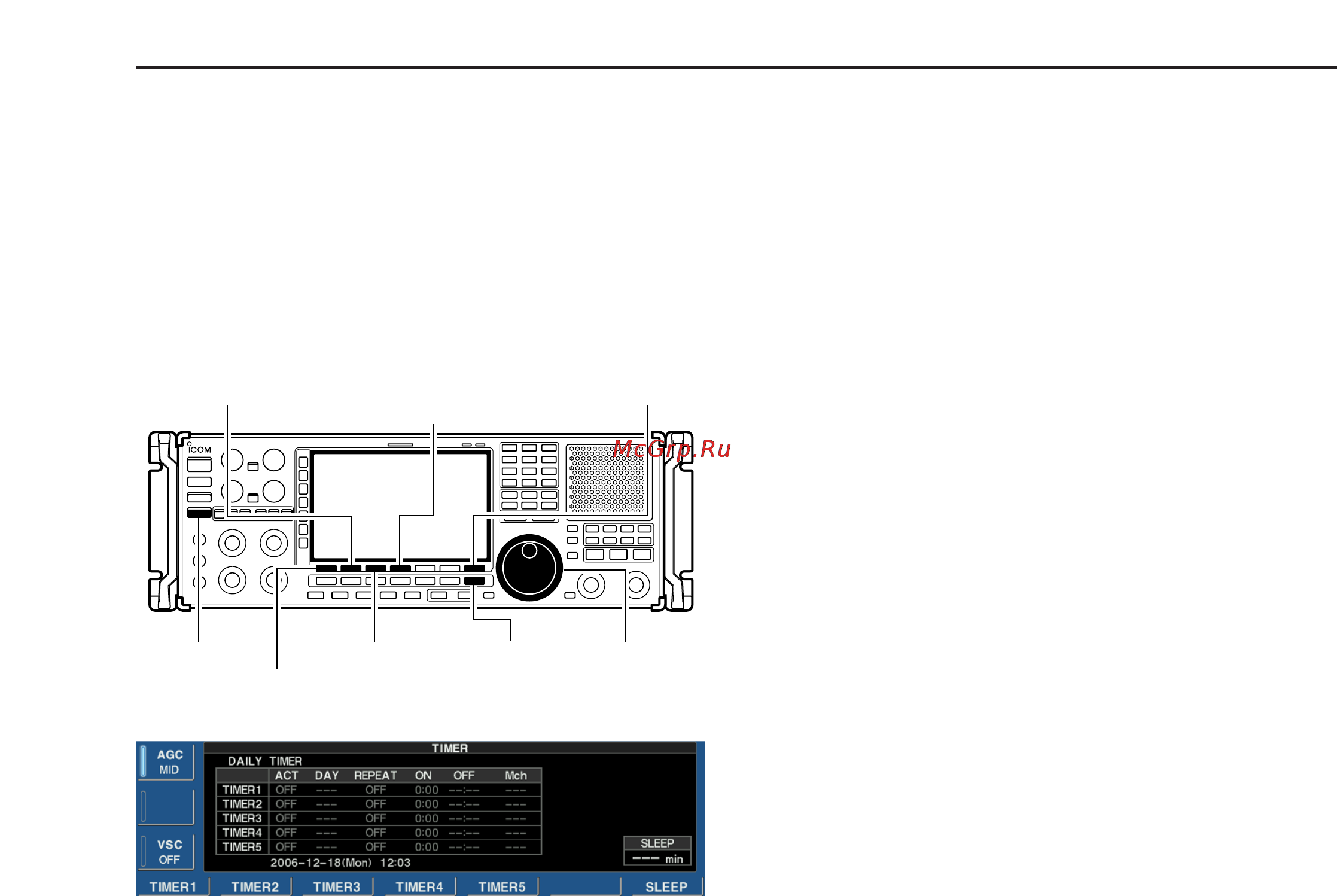

■ Daily timer setting
The receiver turns power ON and/or OFF automatically
at the specified day and time, with the specified fre-
quency settings.
q Push [EXIT/SET] several times to close multifunc-
tion screen, if necessary.
w Push [TIMER] for 1 sec. to select timer set screen.
e Push one of [F-1•TIMER1] to [F-5•TIMER5] to se-
lect the desired timer.
r Rotate the main dial to select the timer action ON
and OFF.
t Push [F-2•≈] to select the “DAY” cell, then rotate the
main dial to select the desired day of the week.
• Select “– – –” not to specify daily operation and activate
the timer every day.
• Once a day of the week is selected, push [F-4•CLR] for
1 sec. to select “– – –.”
y Push [F-2•≈] to select the “REPEAT” cell, then ro-
tate the main dial to select the repeat function ON
or OFF.
•ON: The timer functions every selected day of the
week. (repeats)
• OFF : The timer does not repeat.
u Push [F-2•≈] to select the “ON” cell, then rotate the
main dial to set the desired receiver power ON time.
• When using power OFF timer only, push [F-4•CLR] for
1 sec. to select “– – –.”
i Push [F-2•≈] to select the “OFF” cell, then rotate the
main dial to set the desired receiver power OFF
time.
• When using power ON timer only, push [F-4•CLR] for
1 sec. to select “– – –.”
o Push [F-2•≈] to select the “Mch” cell, then rotate the
main dial to select the desired memory channel
number in the main readout.
• If using the currently set VFO condition in main readout,
push [F-4•CLR] for 1 sec. to select “– – –.”
!0 Push [F-7•SET] to set the timer.
• The timer indicator above [TIMER] switch lights green.
!1 Repeat steps e to !0 to set other timers, if desired.
!2 Push [EXIT/SET] to exit timer set screen.
[EXIT/SET]
[F-4•TIMER4]/[F-4•CLR]
[F-3•TIMER3]
[TIMER]
[F-7•SET]
[F-1•TIMER1]/[F-1•Ω]
[F-2•TIMER2]/[F-2•≈]
Main dial
10
CLOCK AND TIMERS
