Icom IC-R9500 [30/194] Advanced connections

2-6

INSTALLATION AND CONNECTIONS

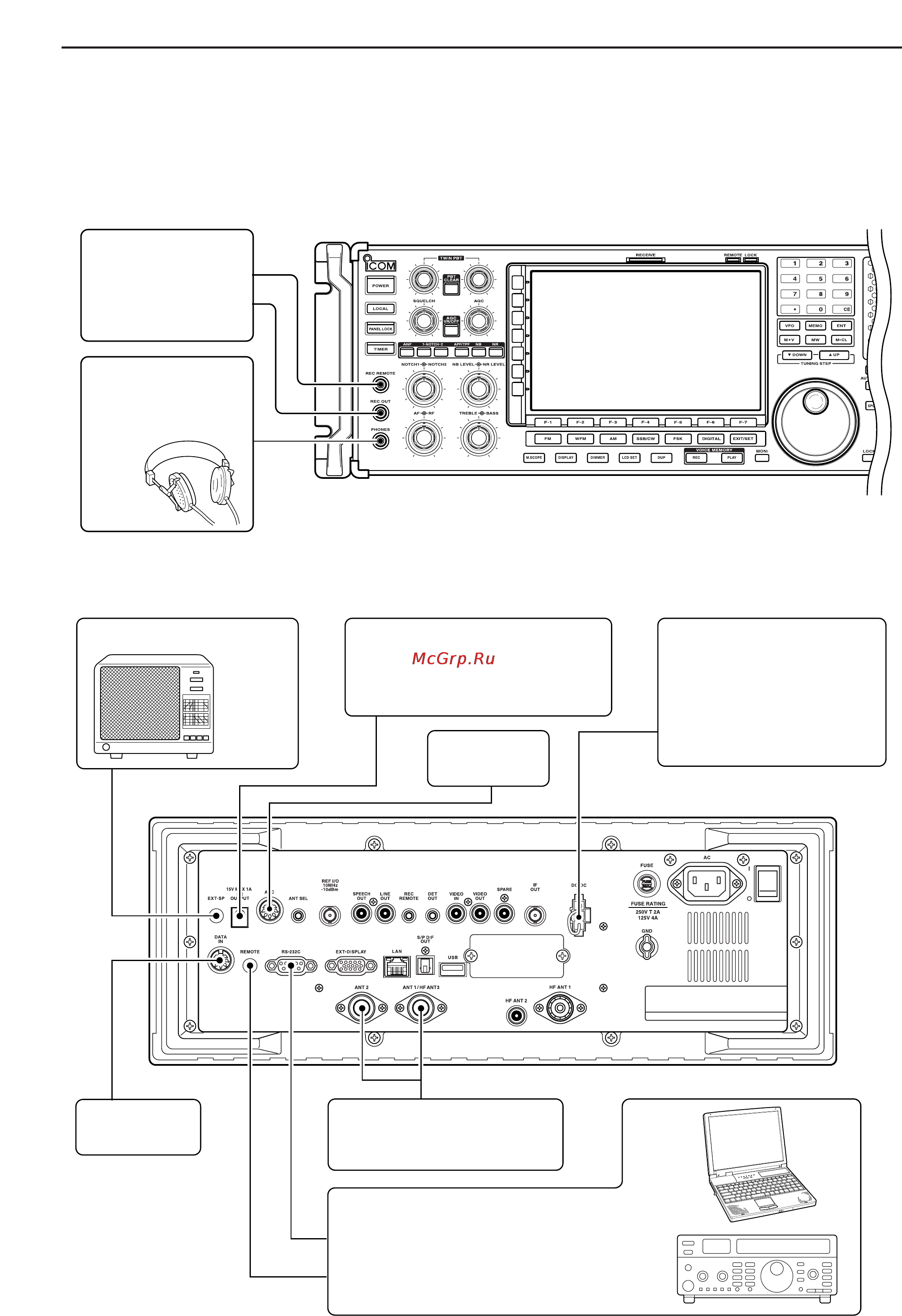

■ Advanced connections

Front panel

Rear panel—1

External speaker (p. 14-4)

ACC socket

(pgs.2-12)

DATA socket

(pgs.2-12)

Antenna 1, 2

Connects a pre-amplifier,

converter, etc.

SP-20

(option)

[REMOTE], [RS-232C] (p. 13-2)

Used for computer control and transceive

operation.

The optional CT-17 is required when con-

necting a PC to [REMOTE].

[DC OUTPUT]

Outputs regulated 15 V (approx.)

DC for external equipment power

supply. (max. 1 A capacity)

Connects an external pow-

er supply (DC 13.5–15 V at

least 10 A).

Only regulated DC power

may be connected.

[DC-DC IN]

[REC REMOTE],

[REC OUT] (p. 2-8)

Connects a tape re-

corder or other au-

dio equipment.

Accepts headphones

with 8–16 Ω impe-

dance.

Headphones
