Icom IC-R9500 [186/194] Firmware update pc

15-6

■ Firmware update— PC

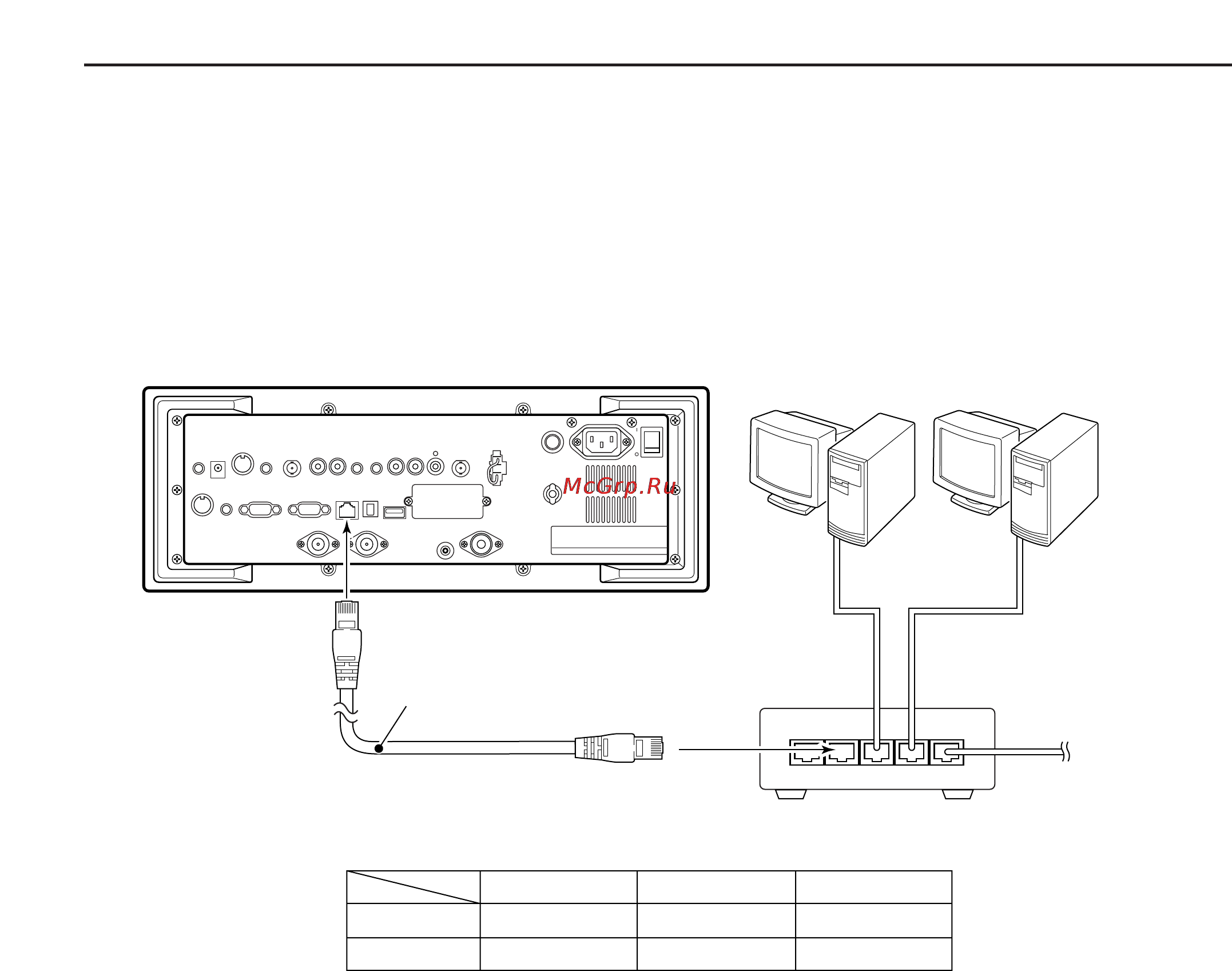

Connections Connect the IC-R9500 and the PC through a LAN

(Local Area Network) as follows.

= × × × ×

*Purchased separately

to WAN

/Internet network

Ethernet cable*

(Patch cable)

to crossover port

• IP address setting example

Hub/Router*

IC-R9500 (192.168.100.13)

PC1

(192.168.100.11)

PC2

(192.168.100.12)

PC1

192.168.100.11

255.255.255.0

IP address

Subnet mask

PC2

192.168.100.12

255.255.255.0

IC-R9500

192.168.100.13

255.255.255.0

UPDATING THE FIRMWARE
