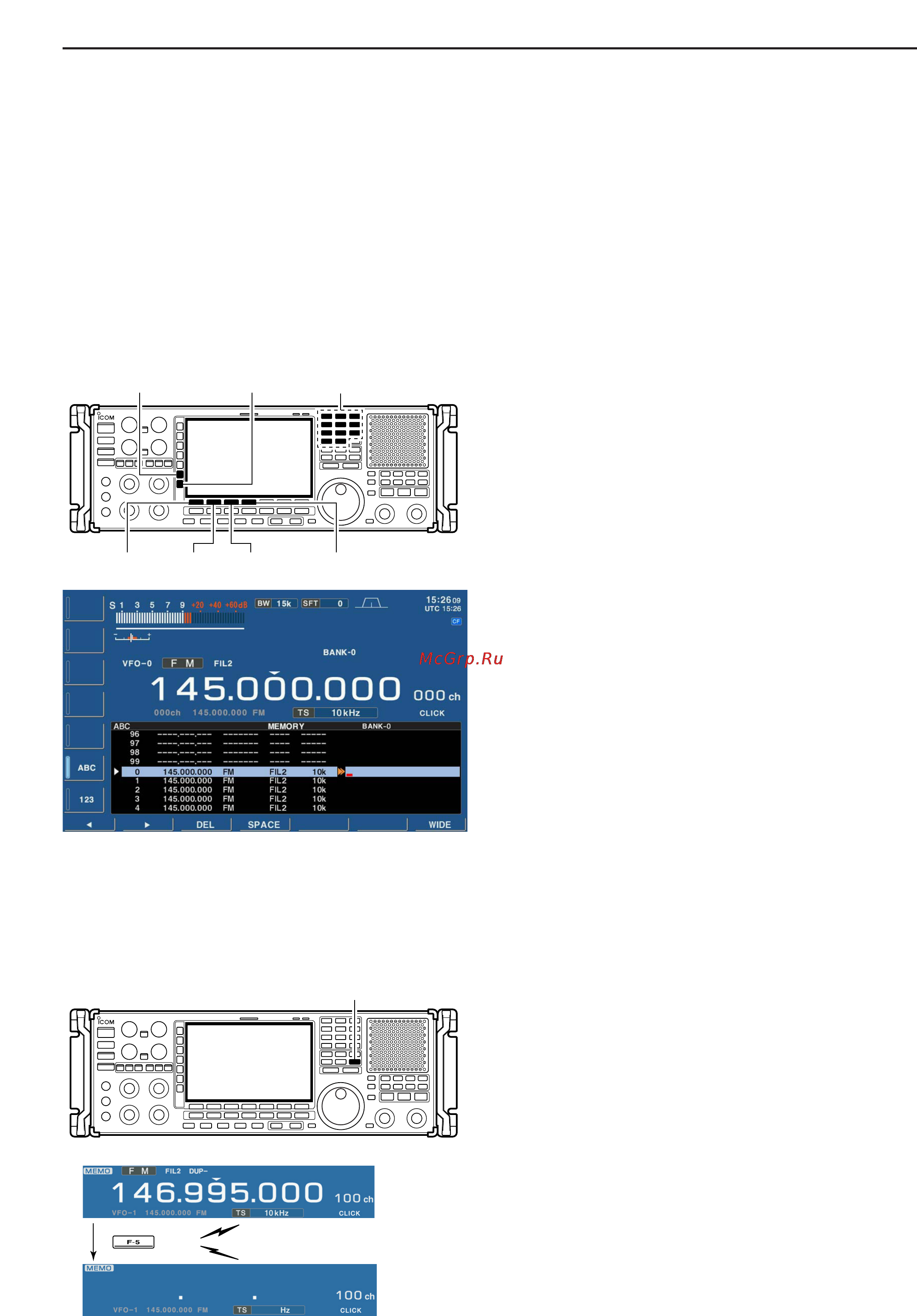

![Icom IC-R9500 [98/194] Memory clearing](/views2/1074327/page98/bg62.png)
7-6
7
MEMORY OPERATION
■ Memory names
All memory channels (including scan edges) can be
tagged with alphanumeric names of up to 10 charac-
ters each.
Capital letters, small letters, numerals, some symbols
(! # $ % & ¥ ? " ’ ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _
~
@)
and spaces can be used.
DD
Editing (programming) memory names
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [F-4•MEMORY] to select memory list screen.
e Select the desired memory channel.
r Push [F-4•NAME] to edit memory channel name.
•Acursor appears and blinks.
• Memory channel names of blank channels cannot be
edited.
t Input the desired character by rotating the main dial
or by editing the keypad for number input.
• Push [ABC] or [abc] to toggle capital and small letters.
• Push [123] or [Symbol] to toggle numerals and symbols.
• Push [F-1•Ω] or [F-2•≈] for cursor movement.
• Push [F-3•DEL] to delete the selected character.
• Push [F-4•SPACE] to input a space.
• Using the receiver’s keypad, [0]–[9], can also enter nu-
merals.
y Push [EXIT/SET] to input and set the name.
• The cursor disappears.
u Repeat steps e to y to program another memory
channel’s name, if desired.
i Push [EXIT/SET] to exit memory list screen.
■ Memory clearing
Any unused memory channels can be cleared. The
cleared memory channels become blank channels.
q Select memory mode with [MEMO].
w Push [F-4•MEMORY] to select memory list screen.
e Select the desired memory channel with [M-CH].
r Push and hold [M-CL] for 1 sec. to clear the con-
tents.
• The programmed frequency and operating mode disap-
pear.
t To clear other memory channels, repeat steps e
and r.
Push for 1 sec.
Beep
Beep
Beep
(CLR)
[M-CL]
[F-1•Ω] [F-2•≈]
[F-4•SPACE]
[F-3•DEL]
Keypad[ABC]/[abc] [123]/[Symbol]
