8-9
8
SCANS

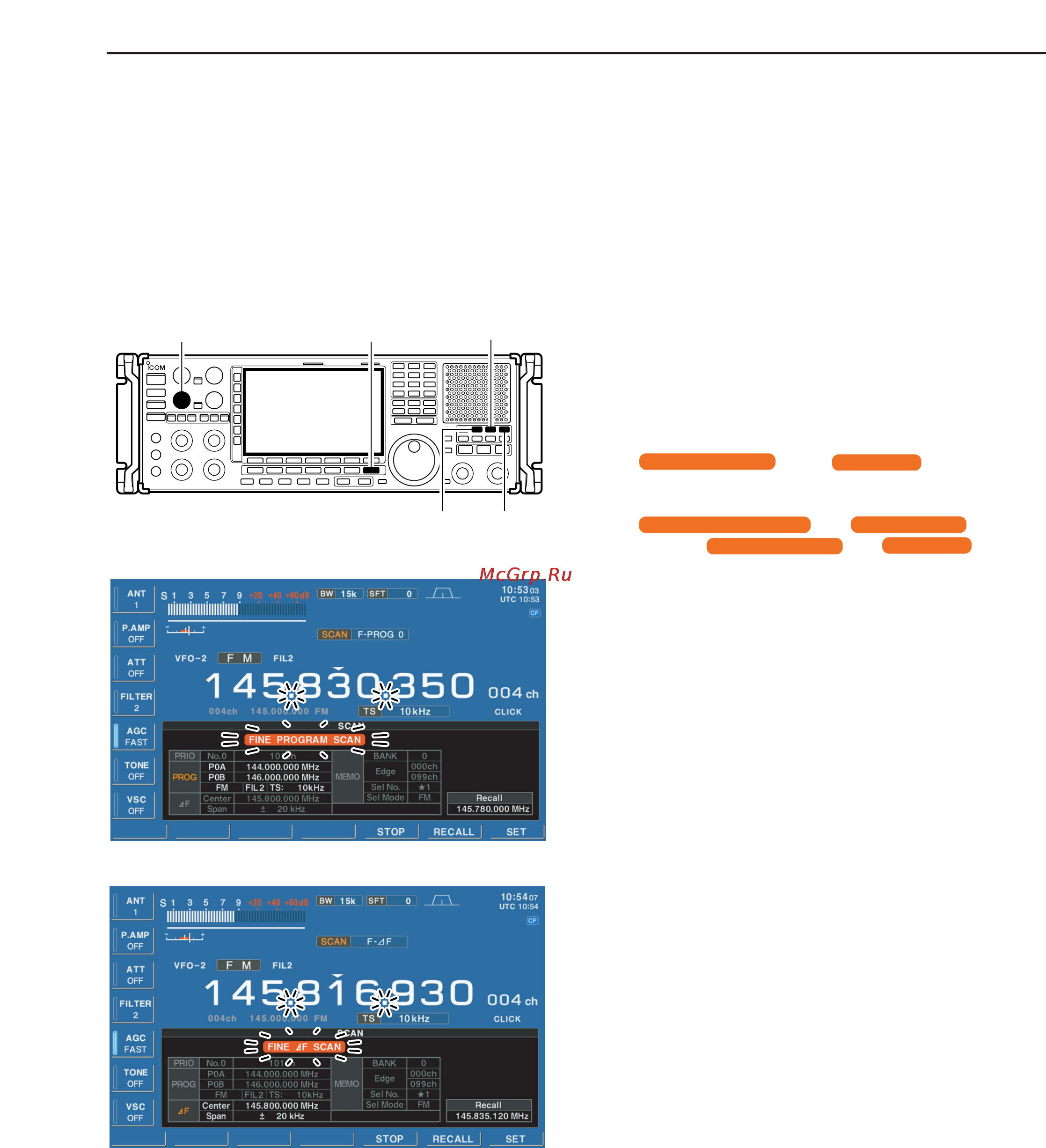

■ Fine programmed scan/fine ∂F scan operation
In fine scan (programmed or ∂F), the scan speed de-
creases when the squelch opens, but the receiver
keeps scanning. The scanning tuning step shifts from
50 Hz to 10 Hz when the squelch opens.
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [F-5•SCAN] to select the scan screen.
e Set for programmed scan or ∂F scan as described
at p.8-6 and p.8-8.
r Push [PROG] or [∂F] to start a scan.
•“ ” or “ ” and decimal
points blink while scanning.
t Push [FINE] to start a fine scan.
•“ ” or “ ” blinks in-
stead of “ ” or “ ,” respec-
tively.
y When the scan detects a signal, the scan speed de-
creases but scan does not stop.
u Push [PROG] or [∂F] to stop the scan; push [FINE]
to cancel the fine scan.
• Pushing [F5•STOP] also cancels the scan.
• Pushing [EXIT/SET] closes the scan screen.
i Push and hold [F-6•RECALL] for 1 sec. to recall the
frequency that is set before starting the scan, if de-
sired.
:F SCAN
PROGRAM SCAN
FINE :F SCAN
FINE PROGRAM SCAN
:F SCAN
PROGRAM SCAN
[EXIT/SET][SQUELCH]
[:F]
[PROG]
[FINE]
