11-2
■ Set mode description
Set mode is used for programming infrequently
changed values or conditions of functions. The IC-
R9500 has a level set mode, display set mode, timer
set mode, accessory set mode, others set mode and
CF/USB-Memory set mode.
DD
Set mode operation
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [F-7•SET] to select set mode menu screen.
• Pushing and holding [EXIT/SET] for 1 sec. also selects
set mode menu screen.
e Push [F-1•LEVEL], [F-2•ACC], [F-3•DISP],
[F-4•TIME], [F-5•OTHERS] or [F-7•CF/USB] to
enter the desired set mode.
r For level, accessory, display and others set mode,
push [F-7•WIDE] to toggle wide and normal screen.
t Push [F-1•Y] or [F-2•Z] to select the desired item,
then rotate main dial to adjust/select the desired
value or condition.
• Pushing [F-3•Ω≈] operation may be necessary for
some items.
y Push [EXIT/SET] twice to exit set mode.

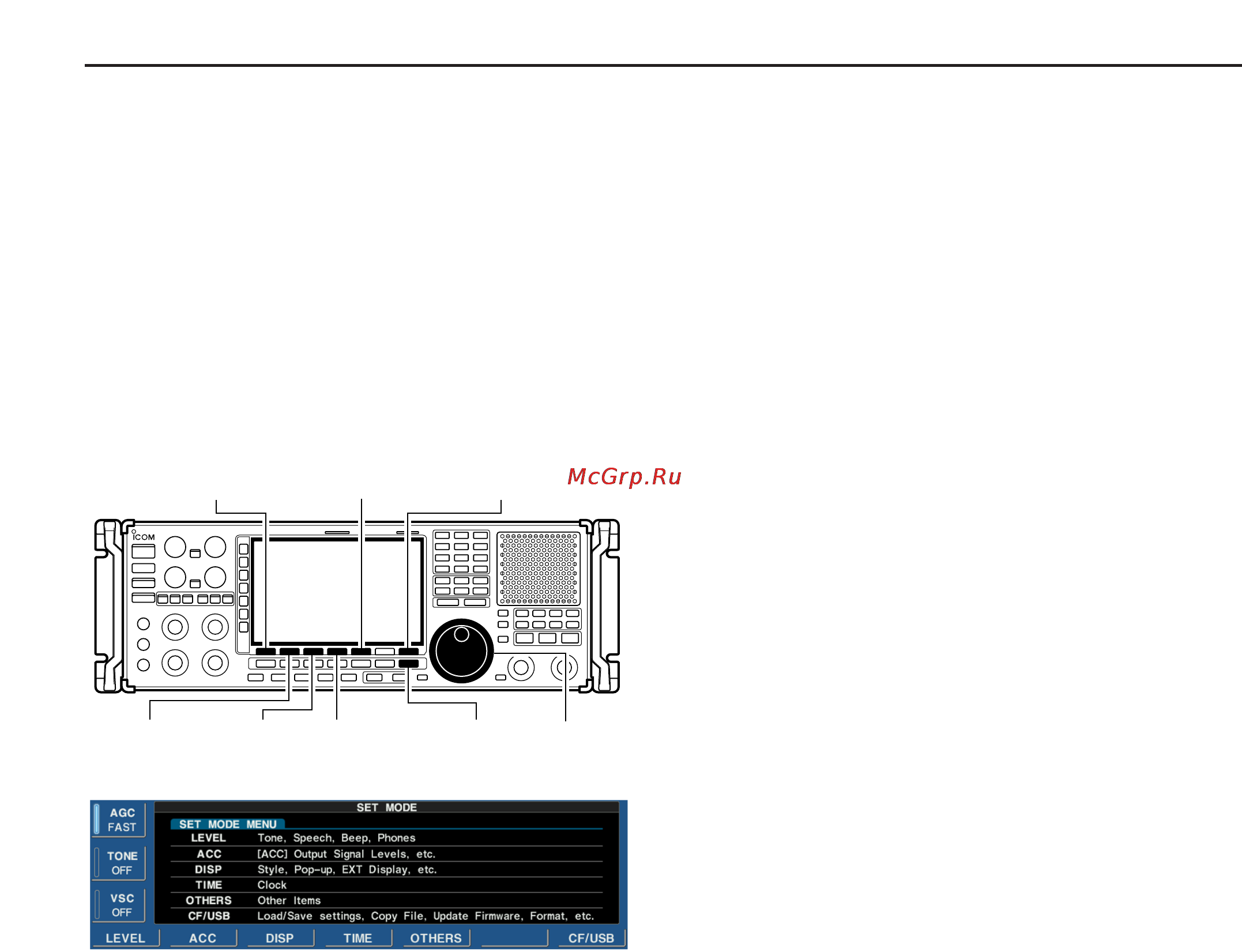

[EXIT/SET] Main dial
[F-1•LEVEL]
[F-2•ACC] [F-3•DISP]
[F-5•OTHERS]
[F-4•TIME]
[F-7•CF/USB]
11
SET MODE
