10-4

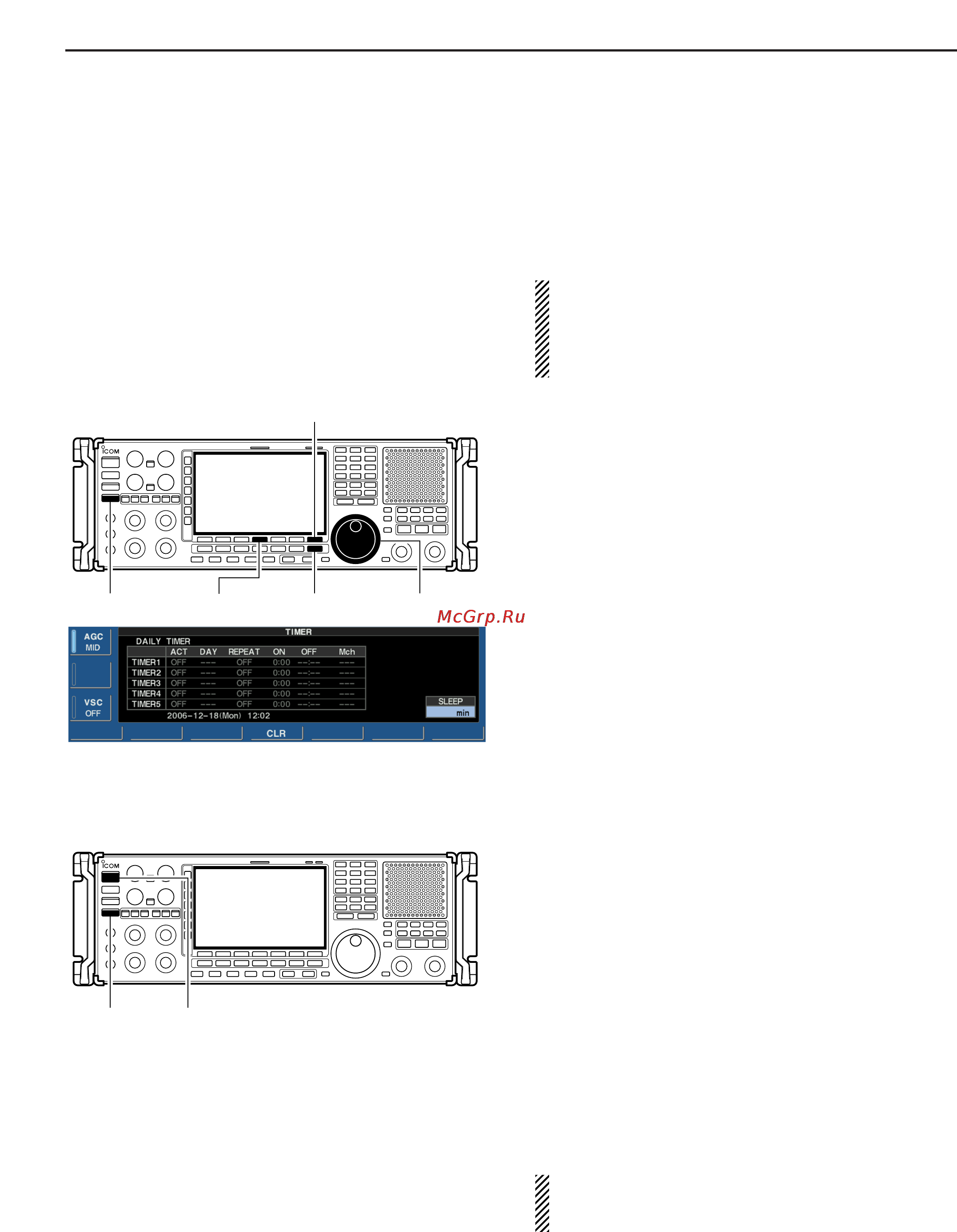

■ Setting sleep timer
The sleep timer turns the receiver power OFF auto-
matically after a set period. The timer can be set to
5–120 min. in 5 min. steps.
The sleep timer function counts the ‘minute’ unit,
and does not count the ‘second’ unit. For example,
when the sleep timer is started at 12:00 59, first one
minute past for just 1 sec. That is way it has max.
59 sec. an error. This is normal, not a malfunction.
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [TIMER] for 1 sec. to select timer set screen.
e Push [F-7•SLEEP] to select the sleep timer set con-
dition.
• “– – –” blinks.
r Set the desired time period using the main dial.
• “TIMER–set Push [SET]” blinks.
• Push [F-4•CLR] to select “– – –” to cancel the setting.
t Push [F-7•SET] to set the time.
• Push [EXIT/SET] to cancel the setting.
• The timer indicator above [TIMER] switch lights green.
y Push [EXIT/SET] to exit timer set screen.
u The receiver emits 10 beeps and turns OFF after
the sleep timer period elapses.
• The timer indicator blinks while beeping.
• Push [TIMER] momentarily to cancel the sleep timer, if
desired.
■ Timer operation
q Preset the daily timer as described previously.
w Push [TIMER] momentarily to turn the timer function
ON.
• The timer indicator above this switch lights green when
the timer function is ON.
e Push and hold [POWER] for 1 sec. to turn the power
OFF.
• The timer indicator lights continuously.
r When the set time arrives, the power is automati-
cally turned ON.
t The receiver emits 10 beeps and turns OFF after
the power-off period elapses.
• The timer indicator blinks while beeping.
• Push [TIMER] momentarily to cancel the sleep timer, if
desired.
The timer action in timer set screen must be turned
ON to enable the timer operation, described above
“Setting sleep timer” steps r.
[TIMER] [POWER]
[EXIT/SET][TIMER] Main dial[F-4•CLR]
[F-7•SLEEP]/[F-7•SET]
10
CLOCK AND TIMERS
