4-16
4
RECEIVE MODES
DD

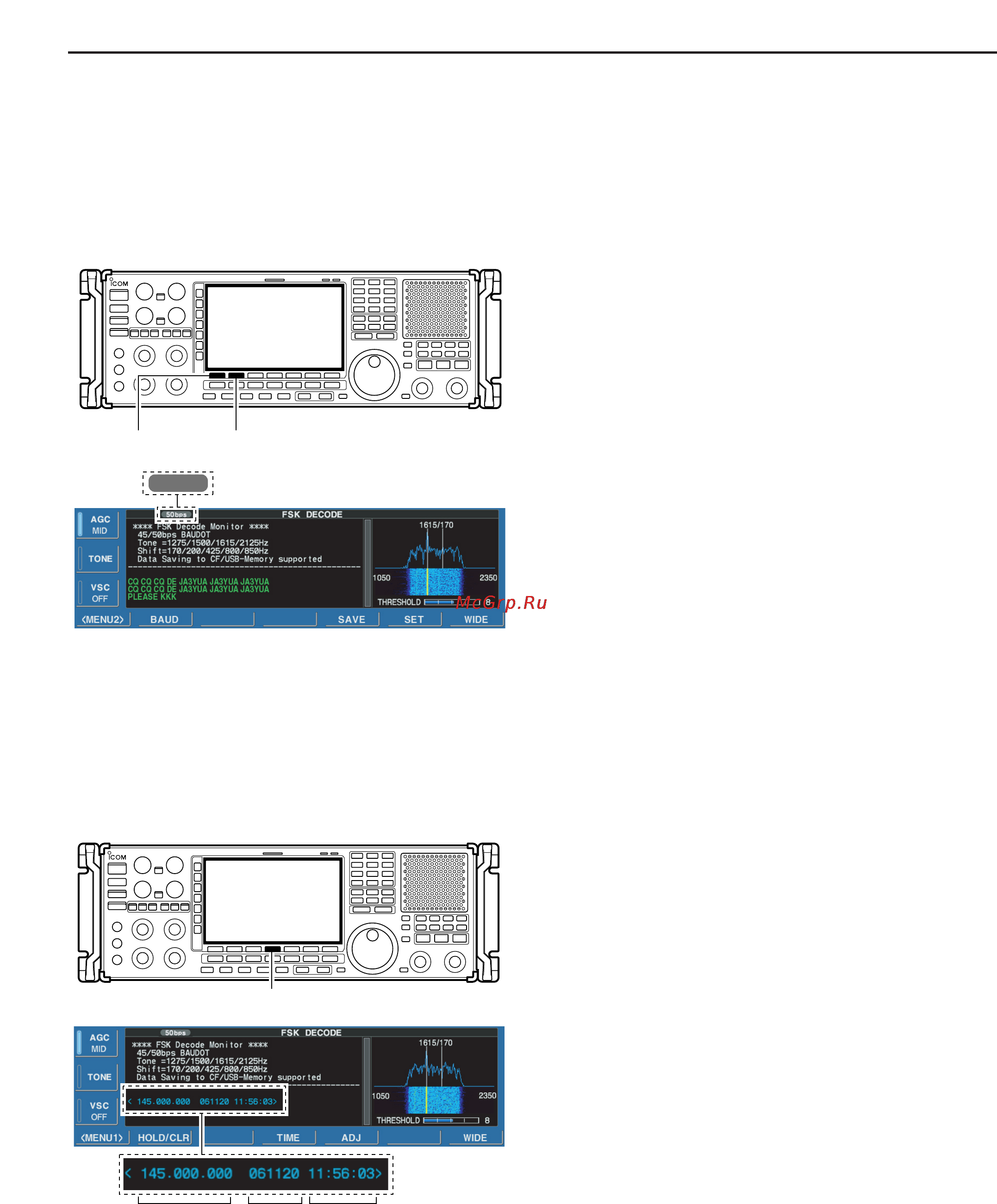

Setting FSK baud rate
The data transfer rate can be selected from two
speeds, 45 bps and 50 bps.
q Select the FSK decoder screen as described on
page 4-13.
w Push [F-1•MENU1] to select the second FSK de-
code menu.
e Push [F-2•BAUD] to select the desired data trans-
fer rate.
• 45 bps and 50 bps are available.
50 bps
Selected baud rate appears
[F-1•MENU1]
[F-2•BAUD]
DD
Time stamp function
Time stamp function is used to add the time or fre-
quency information when receiving a signal. Frequency
information can be turned OFF in FSK decode set
mode.
q Select the FSK decoder screen as described on
page 4-13.
w Push [F-4•TIME] to add the time stamp information.
• Frequency , date and time information are added on the
decoder screen.
e Continue receiving.
Frequency Date Time
[F-4•TIME]
