Icom IC-R9500 [180/194] Options

14-4

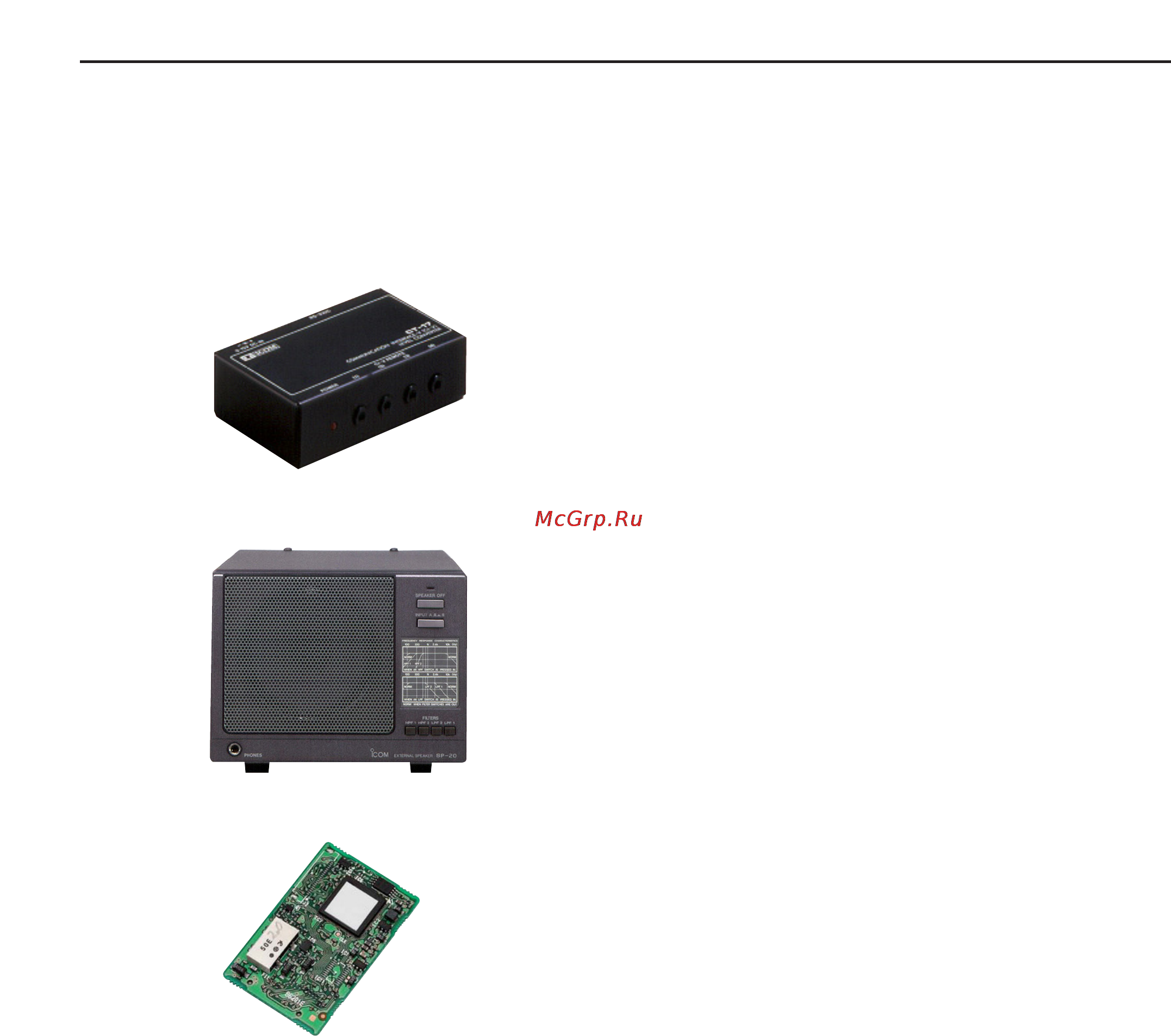

■ Options

• CT-17 CI-V LEVEL CONVERTER

For remote receivers control using a PC. You can

change frequencies, operating mode, memory

channels, etc. (software is not included)

• SP-20 EXTERNAL SPEAKER

4 audio filters; headphone jack; can connect to 2

receivers.

• Input impedance : 8 Ω

• Max. input power : 5 W

• UT-122 DIGITAL UNIT

Provides P25 (digital) mode operation.

SPECIFICATIONS AND OPTIONS
