12-9
12
MAINTENANCE

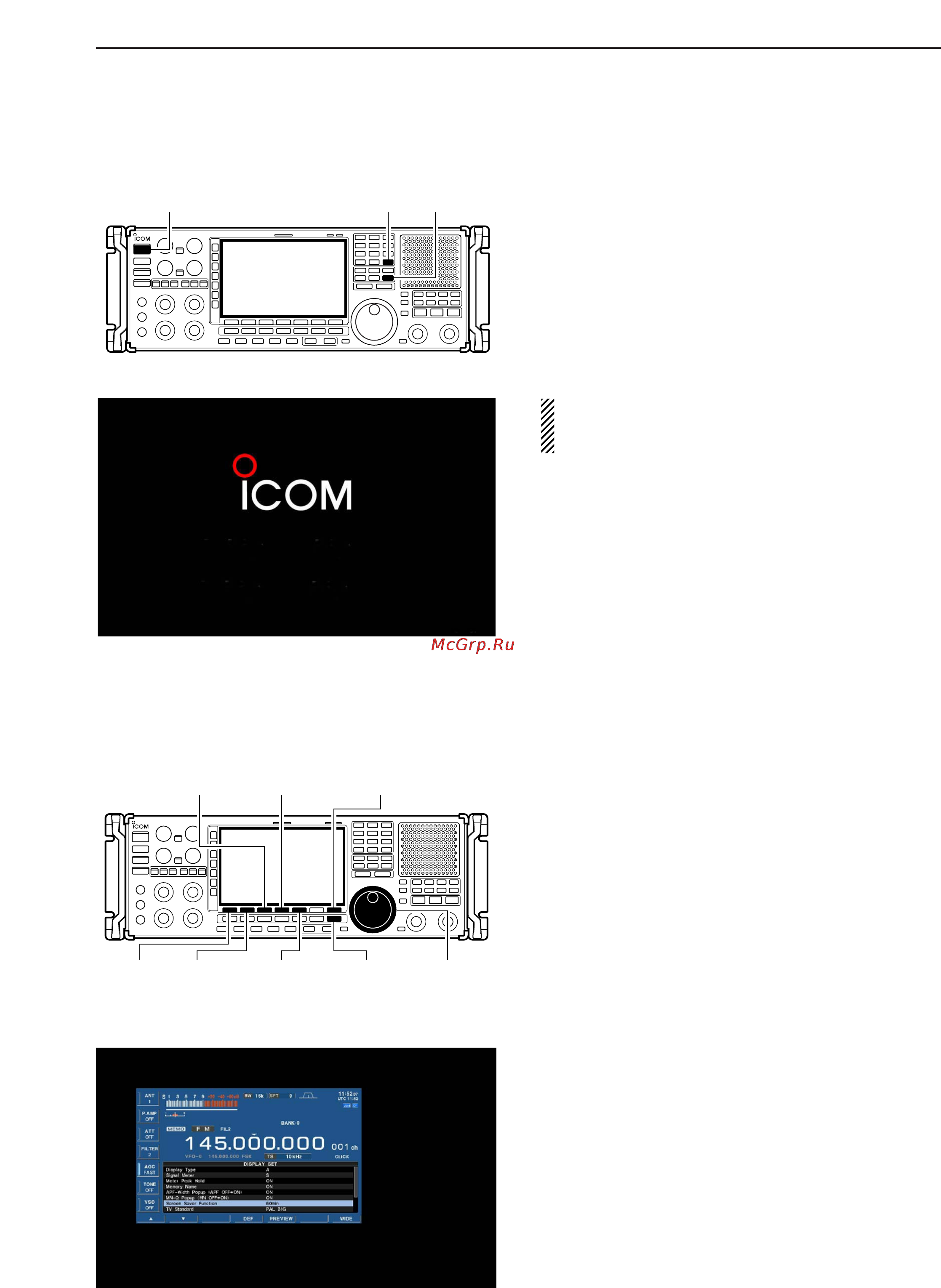

■ Resetting the CPU
q Turn the main power switch on the rear panel ON.
• Make sure the receiver power is still OFF.
w While pushing and holding [CE] and [M-CL], push
[POWER] to turn power ON.
• The internal CPU is reset.
• The CPU start-up takes approx. 5 sec.
• The receiver displays its initial VFO frequencies when
resetting is complete.
e Correct the set mode settings after resetting, if de-
sired.
NOTE: Resetting CLEARS all programmed con-
tents in memory channels and returns programmed
values in set mode to default values.
■ Screen saver function
The IC-R9500 has a screen saver function to protect
the LCD from the “burn-in” effect.
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [F-7•SET] to select set mode menu screen.
e Push [F-3•DISP] to enter the display set mode.
r Push [F-1•Y]/[F-2•Z] several times to select the
“Screen Saver Function” item.
t Rotate main dial to select the desired time period
for the screen saver activation from 15, 30, 60 min.
and OFF.
• Deactivate the screen saver with “OFF” selection.
• Push and hold [F-5•PREVIEW] to display the indication
for your reference.
y Push [EXIT/SET] twice to exit the set mode.
[F-1•Y] [F-2•Z]
Main dial[EXIT/SET]
[F-4•DEF] [F-7•SET]/[F-7•WIDE]
[F-3•DISP]
[F-5•PREVIEW]
[CE] [M-CL][POWER]
ALL CLEAR
iR9500
