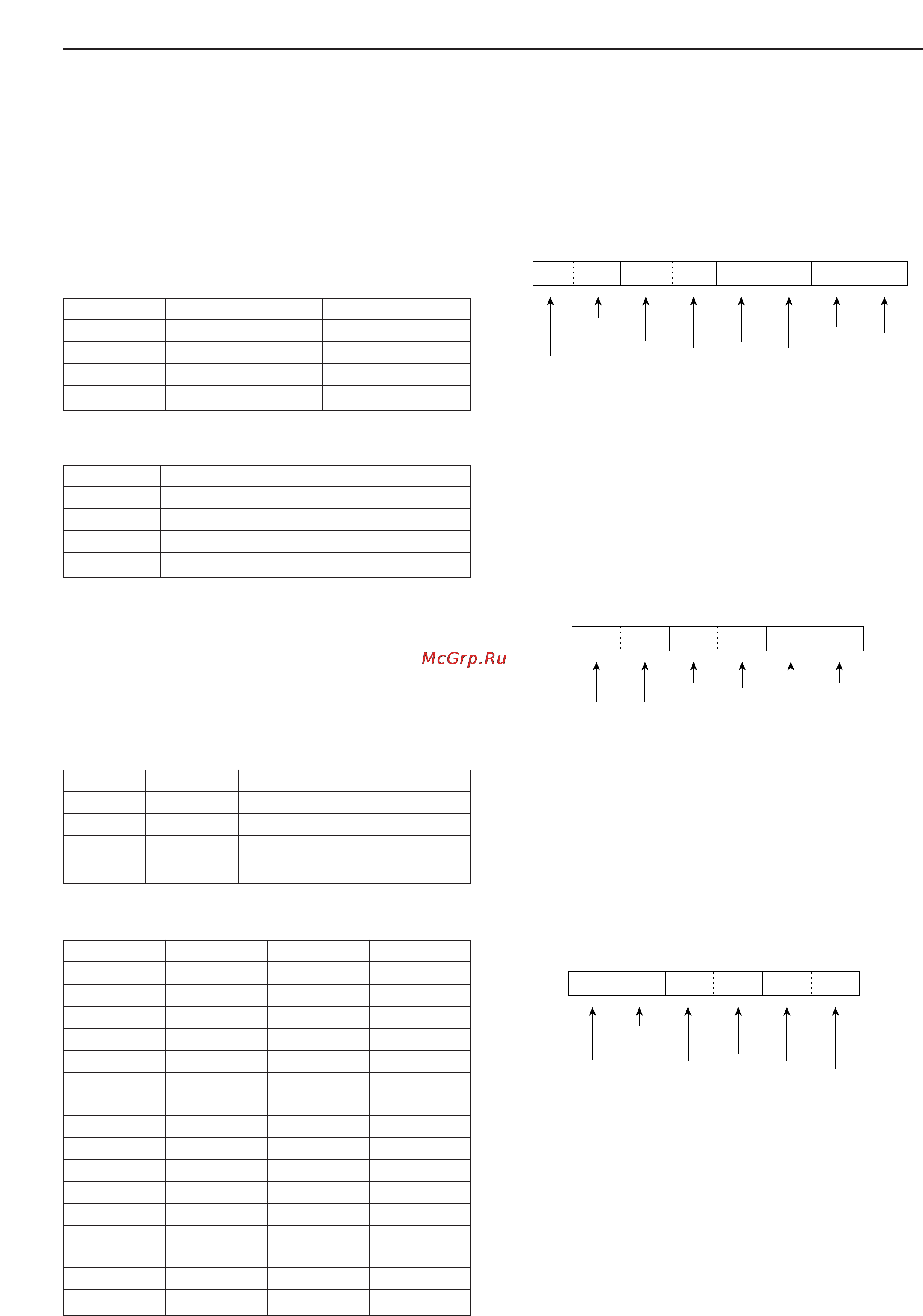

13-10
13
CONTROL COMMAND
DD
To send/read memory contents
When sending or reading memory contents, additional
codes must be added to appoint the memory channel
as follows.
➥ Additional code: 0000–1219
• Memory channel code
• Memory bank code
DD
Codes for memory name, bank name,
opening message and clock 2 name
contents
To send or read the desired memory name settings,
the character codes as follows are used.
• Character’s code
• Character’s code— Symbols
DD
Offset frequency setting
The following data sequence is used when sending or
reading the offset frequency setting.
DD
Tone squelch frequency setting
The following data sequence is used when sending or
reading the tone frequency setting.
DD
DTCS squelch code setting
The following data sequence is used when sending or
reading the DTCS code setting.
DTCS Polarity
†, ‡
: 0. 1
100 digit: 0–7
10 digit: 0–7
1 digit: 0–7
Fixed digit: 0
†
Fixed digit: 0
q
†
00X X X
we
X
†
Not necessary when normal is set.
‡
0=Normal, 1=Reverse
100Hz digit: 0–2
10 Hz digit: 0–9
1 Hz digit: 0–9
0.1 Hz digit: 0–9
Fixed digit: 0*
Fixed digit: 0*
q*
00XXX
we
X
*Not necessary when setting a frequency.
1 kHz digit: 0–9
100 Hz digit: 0 (fixed)
100 kHz digit: 0–9
10 kHz digit: 0–9
10 MHz digit: 0–9
1 MHz digit: 0–4
q
0XXXXXX
we r
0
1 GHz digit: 0 (fixed)
100 MHz digit: 0–4
Character ASCII code Description
0–9 30–39 Numerals
A–Z 41–5A Alphabetical characters
a–z 61–7A Alphabetical characters
space 20 Word space
Character ASCII code Character ASCII code
!21#23
$24%25
&26¥5C
?3F” 22
’27`60
^5E+2B
–2D✱ 2A
/2F.2E
,2C:3A
;3B=3D
<3C>3E
(28)29
[5B]5D
{7B}7D
|7C_5F
–
7E @ 40
Code Bank number Memory Cnannel
0000–0999 Bank-0–Bank-9 0–999
1000–1099 Bank-A (Auto) A00–A99
1100–1199 Bank-S (Skip) S00–S99
1200–1219 Bank-P (Scan edge) P0A–P9B
Code Bank number
00–09 Bank-0–Bank-9
10 Bank-A (Auto)
11 Bank-S (Slip)
12 Bank-P (Scan edge)
