Инструкция по эксплуатации Страница: 31

Icom IC-R9500 [31/194] D rear panel 2

2-7

INSTALLATION AND CONNECTIONS

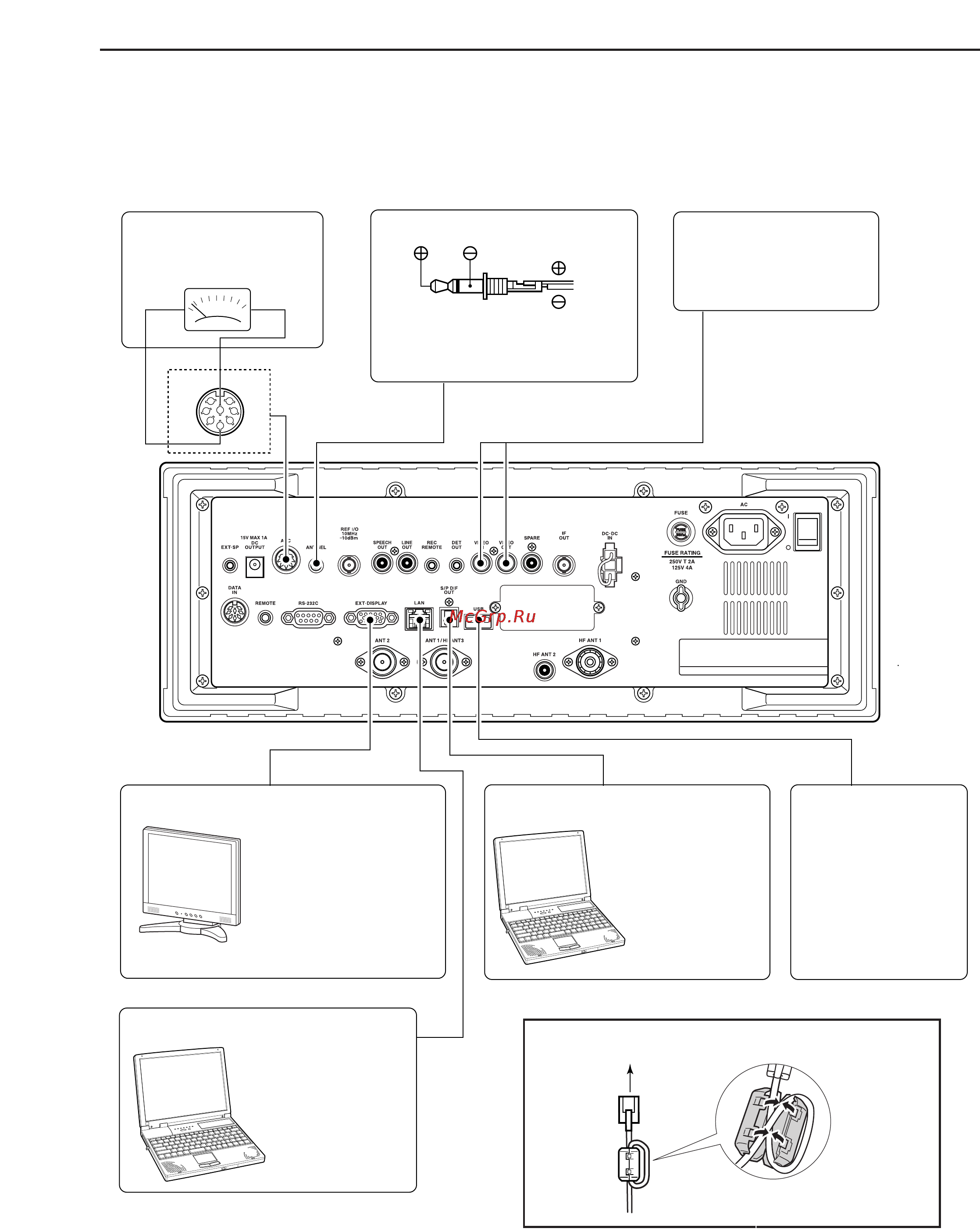

Rear panel—2

For Ferrite bead installation

LAN

socket

(example: LAN cable)

External Display

Connects a PC-style

monitor display (at least

800×600 resolution).

Video output signal can

be turned ON and OFF

in set mode (p. 11-9)

Video equipment

Connects a video re-

corder, etc.

No signals come out from [VID-

EO OUT] for USA versions.

Connects a PC

for audio signal

data (48 kHz, 16-

bit) output.

Connects a USB

equipment such as

memory, hub or

keyboard.

[S/P DIF IN/OUT]

[USB]

Connects a PC

via a LAN for CPU

firmware update.

[METER]

Connects an external

meter, etc.

Meter

Ethernet connector (p. 15-6)

MOUT

GND

[ACC]

ANT SEL

When the [ANT] switch is ON:

13.8 V DC output 100 mA max.
