7-4
7
MEMORY OPERATION
■ Memory channel programming
Memory channel programming can be performed ei-
ther in VFO mode or in memory mode.
DD
Programming in VFO mode
q Set the desired frequency, operating mode and fil-
ter width in VFO mode.
w Rotate [M-CH] (and [BANK]) to select the desired
memory channel.
• Memory list screen is convenient for selecting the de-
sired channel.
• Memory channel contents appear in the memory chan-
nel readout (below the frequency readout).
• “--.---.--” appears if the selected memory channel is a
blank channel (and does not have contents).
e Push and hold [MW] for 1 sec. to program the dis-
played frequency, operating mode, etc., into the
memory channel.
DD
Programming in memory mode
q Select the desired memory channel with [M-CH] in
memory mode.
• Memory channel contents appear in the memory chan-
nel readout (below the frequency readout).
• “--.---.--” appears if the selected memory channel is a
blank channel (and does not have contents).
w Set the desired frequency and operating mode in
memory mode.
•To program a blank channel, use direct frequency entry
with the keypad.
e Push and hold [MW] for 1 sec. to program the dis-
played frequency and operating mode into the mem-
ory channel.
[MW] [M-CH][BANK]
Push for 1 sec.
Beep
Beep
Beep
Rotate

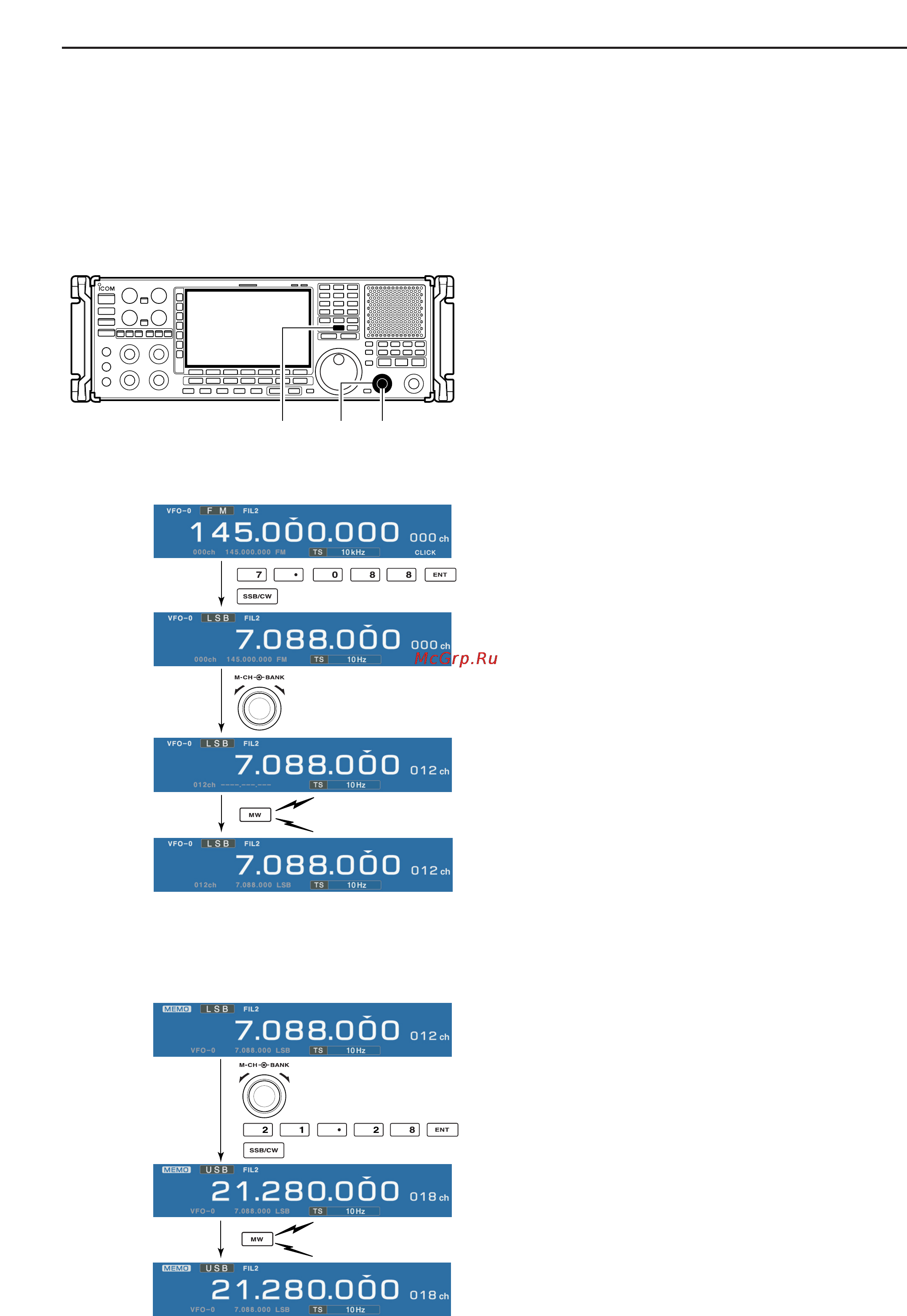

[EXAMPLE]: Programming 7.088 MHz/LSB into mem-
ory channel 12.
Push for 1 sec.
Beep
Beep
Beep
Rotate
[EXAMPLE]: Programming 21.280 MHz/USB into mem-
ory channel 18.
