Mode select memory scan operation
To operate memory scan in a specific mode (ignoring
other modes), the mode select memory scan is avail-
able.
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Set the [SQUELCH] control open or closed.
• See page 8-3 for squelch condition.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [MODE] to start the mode select memory
scan.
• Scan screen appears and memory mode is selected au-
tomatically.
•“ ” and decimal points
blink during mode select memory scan.
t When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch condition.
y To cancel the scan, push [MODE].
• Pushing [F5•STOP] also cancels the scan.
• Pushing [EXIT/SET] closes the scan screen.
2 or more memory channels with same operating
mode must be programmed for mode select mem-
ory scan to start.

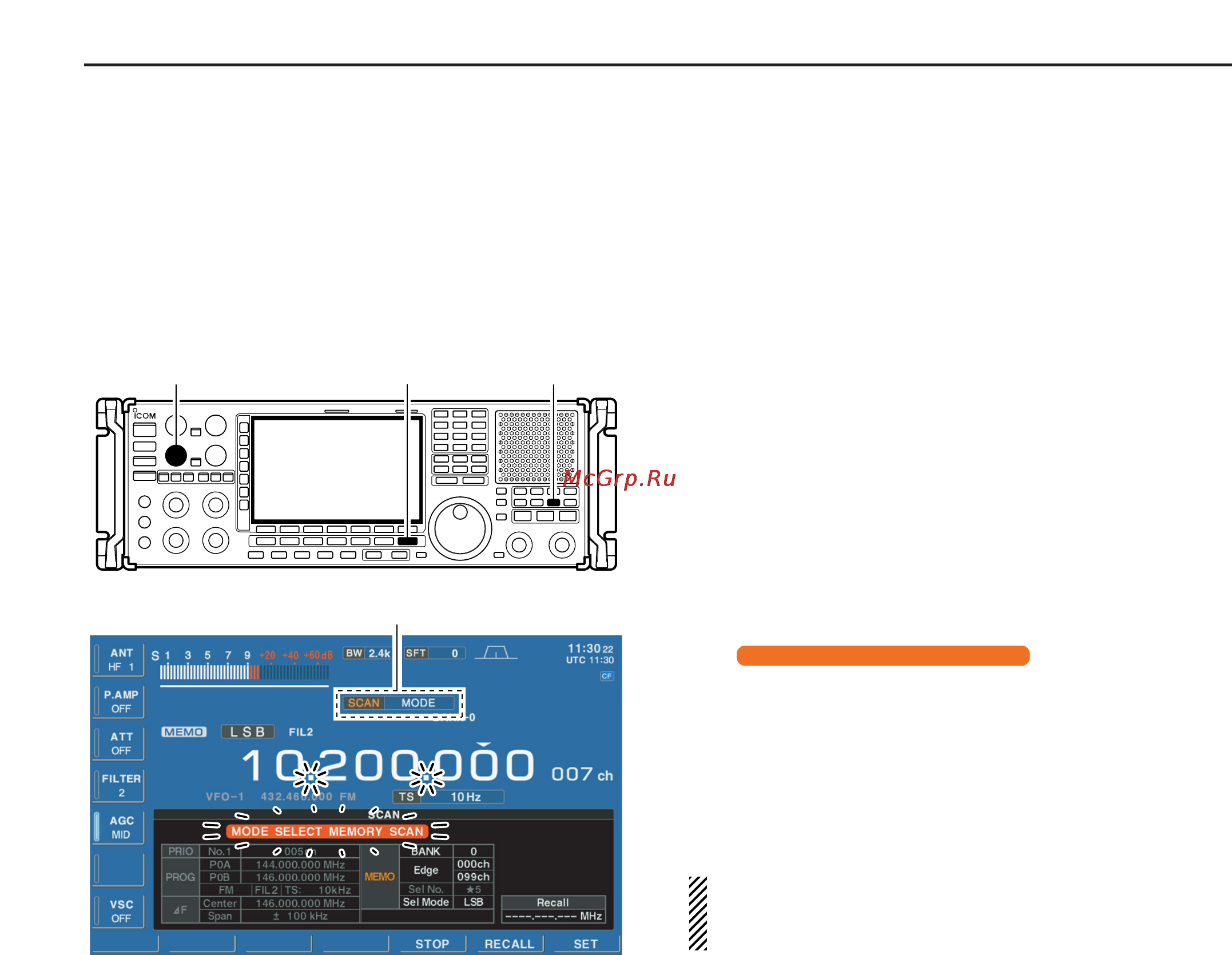

MODE SELECT MEMORY SCAN
Scan indicator appears
[EXIT/SET] [MODE][SQUELCH]
