5-6
DD

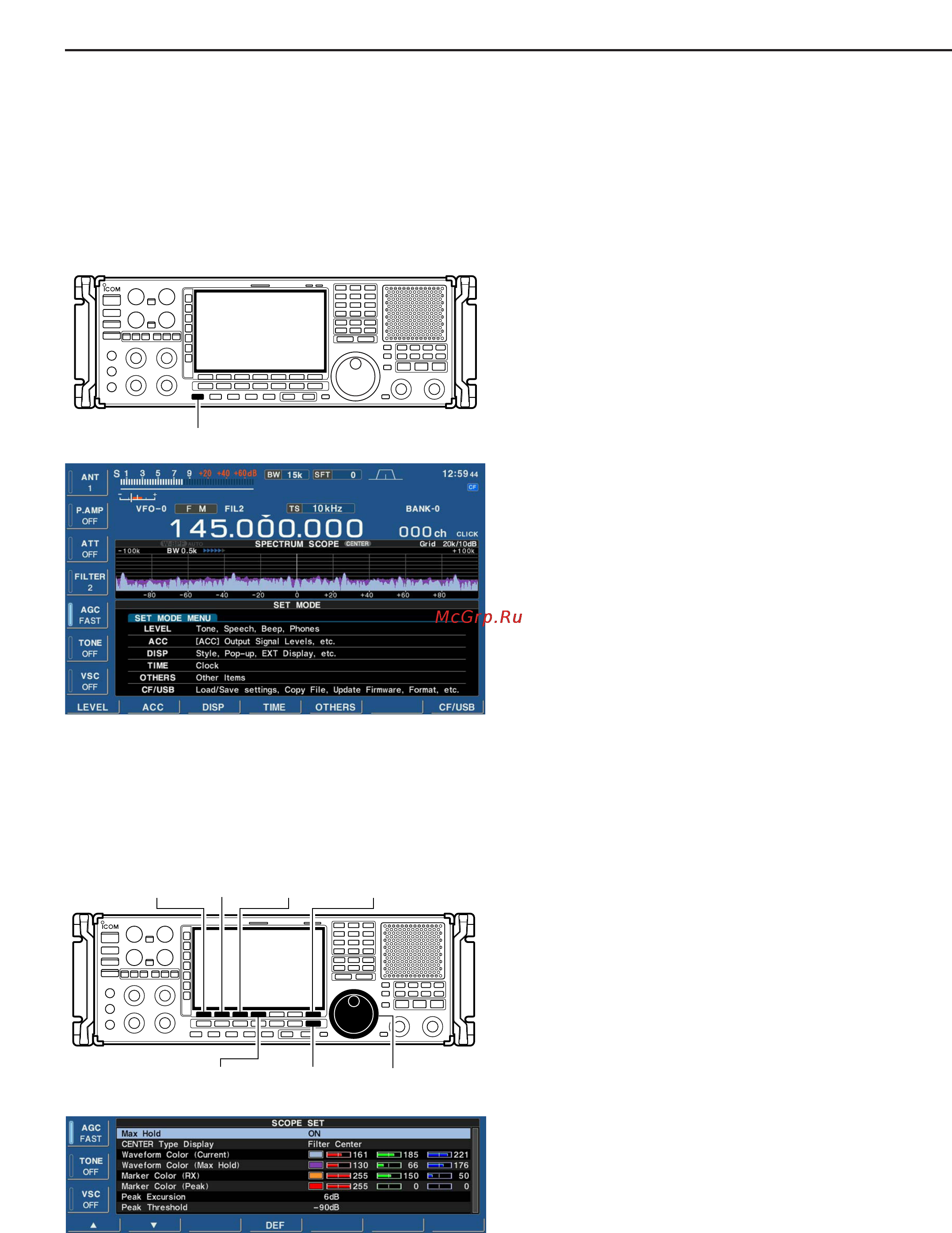

Mini scope screen indication
The mini scope screen can be displayed with another
screen display, such as set mode menu, decoder
screen, memory list screen, etc. simultaneously.
q Set the scope mode (center or fixed), marker, at-
tenuator, span, etc. in advance. (pgs. 5-2, 5-3)
w Push [M.SCOPE] to toggle the mini scope indica-
tion ON and OFF.
[M.SCOPE]
5
FUNCTIONS FOR RECEIVE
DD
Scope set mode
This set mode is used to set the waveform color, cen-
ter frequency indication for center mode, etc.
q During spectrum scope display ON, push
[F-1•MENU1] to select the second scope menu.
w Push [F-7•SET] to enter scope set mode screen.
• Push [F-7•WIDE] to toggle the screen size between nor-
mal and wide.
e Push [F-1•Y] or [F-2•Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push and hold [F-4•DEF] for 1 sec. to select the default
condition or value.
• Push [F-3•Ω≈] to select the set contents for some
items.
t Push [EXIT/SET] to exit from set mode.
[EXIT/SET] Main dial
[F-1•Y] [F-2•Z]
[F-3•Ω ≈]
[F-4•DEF]
[F-7•WIDE]
