8-6
8
SCANS
■ Programmed scan
Programmed scan searches for signals within a speci-
fied frequency range, using the selected tuning step in-
crements. The result is like ‘automatically’ rotating of
the main dial.
DD
Setting
q Push [EXIT/SET] several times to close a multifunc-
tion screen, if necessary.
w Push [F-5•SCAN] to select scan setting screen.
e Push [F-2•PROG] once to enter the programmed
scan selection mode.
r Rotate the main dial to select the desired scan
edges.
•Apair of P0A and P0B to P9A and P9B are available.
t Push [F-2•PROG] to enter the start edge frequency
programming, then edit the desired frequency using
the keypad.
y Push [F-2•PROG] to enter the end edge frequency
programming, then edit the desired frequency using
the keypad.
u Push [F-2•PROG] to enter the operating mode se-
lection, then rotate main dial to select the desired
operating mode.
i Push [F-2•PROG] to enter the filter selection, then
rotate main dial to select the desired filter.
o Push [F-2•PROG] to enter the tuning steps selec-
tion, then rotate main dial or edit using the keypad to
select the desired tuning steps.
!0 Push [F-2•PROG] to set the programmed scan.

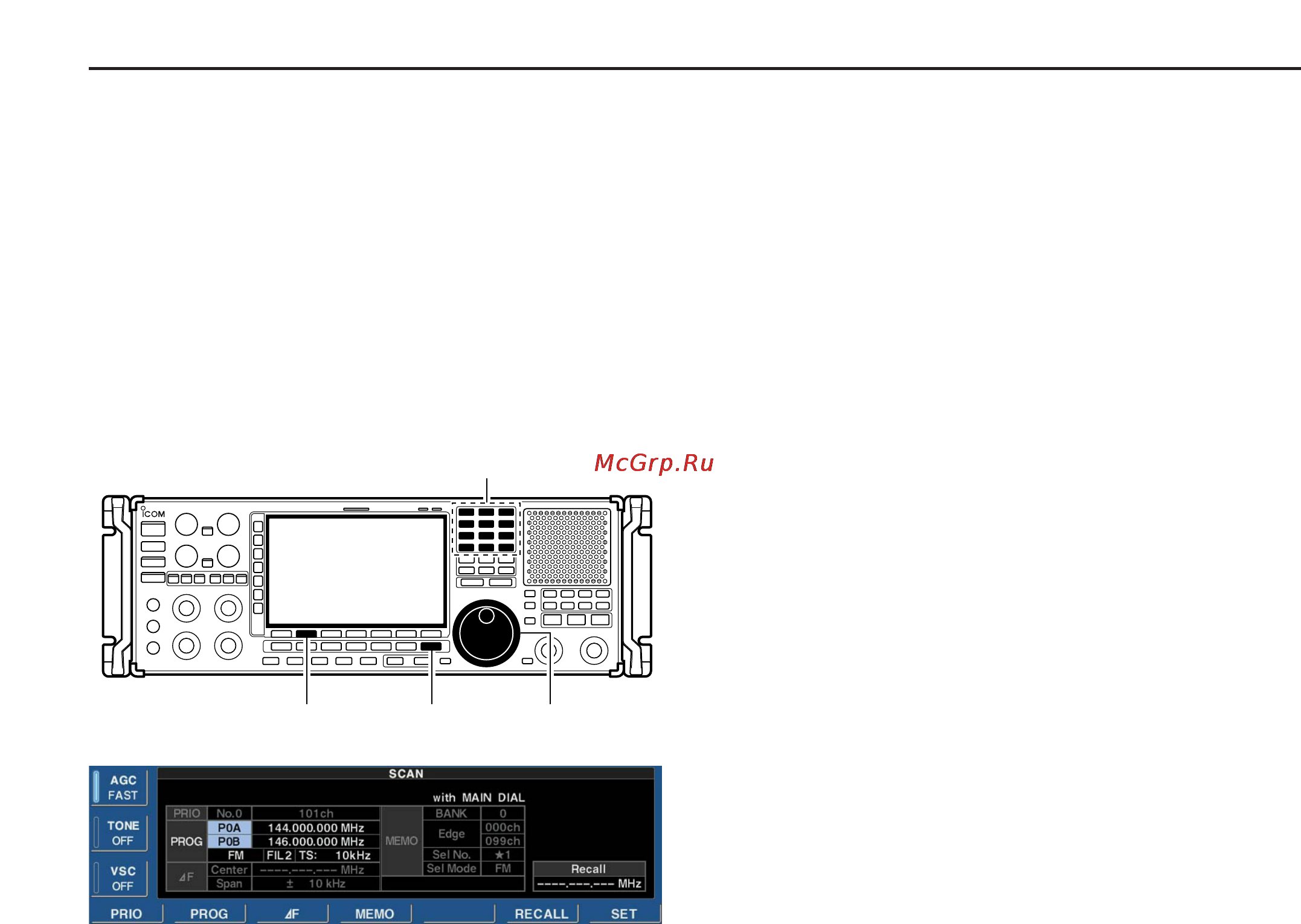

[F-2•PROG] [EXIT/SET] Main dial
Keypad
