Инструкция по эксплуатации Страница: 144

Icom IC-R9500 [144/194] Cf card usb memory set menu

11-16

SET MODE

■ CF card/USB-Memory set menu

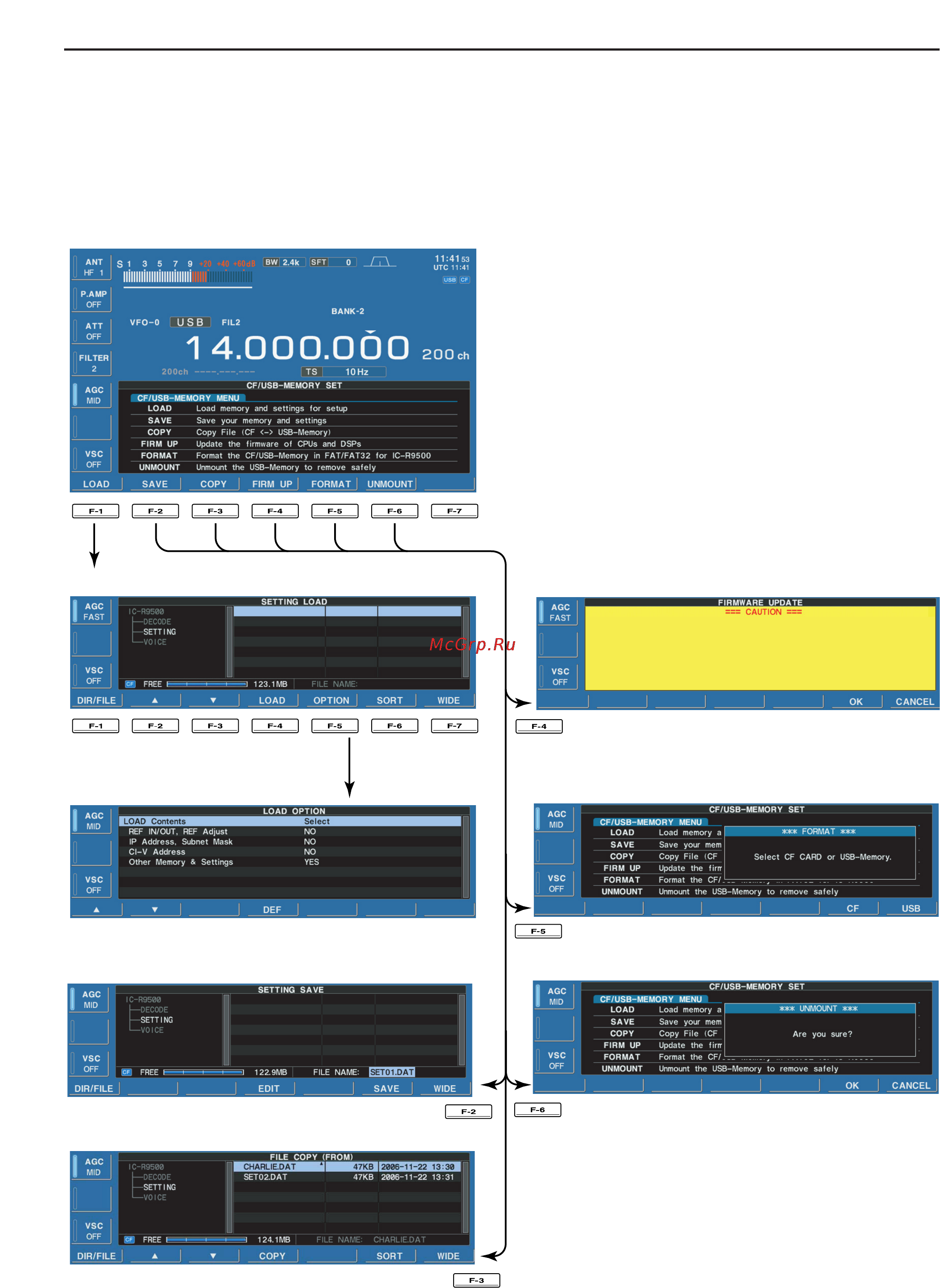

CF/USB-Memory set screen arrangement

Updating the firmware is very risky. If you make a mistake, the IC-R9500 may

not operate properly, and repair at Icom Inc, (Japan) may be the only way to

fix it.

You undertake the updating of the firmware at your own risk and responsou undertake the updating of the firmware at your own risk and responsibility.

Please refer to the firmware download homepage and/or the instruction manual

for the correct procedures in updating the firmware.

• CF/USB-Memory set menu

• Setting load screen (p. 11-19)

• Load option set mode (p. 11-17)

• Copy files (p. 11-21)

• Format menu (p. 11-23)

• Setting save screen (p. 11-18)

• Unmount USB-Memory (p. 11-22)

• Firmware update (p. 15-4)
