7-9
7
MEMORY OPERATION
DD

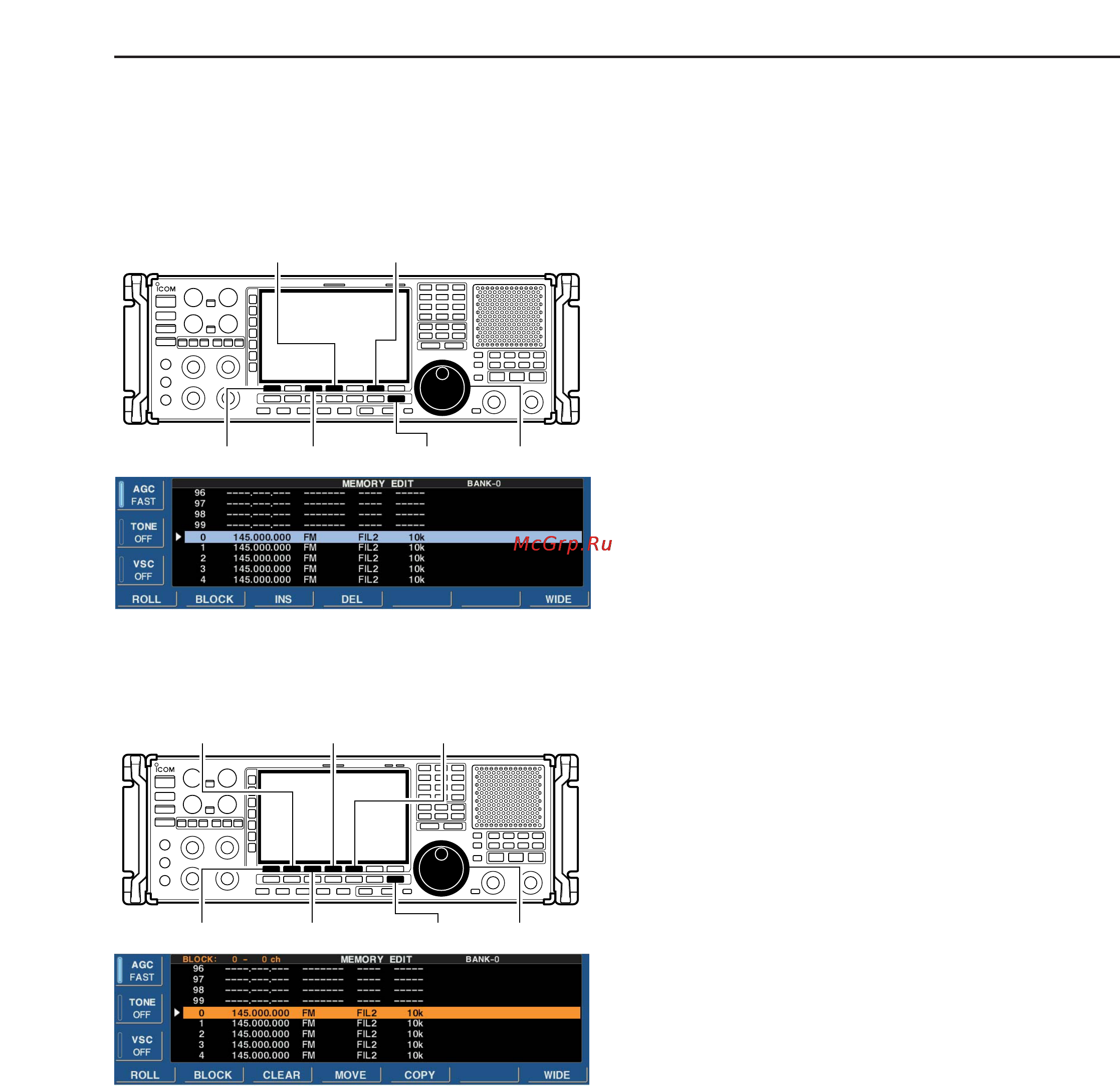

Editing memory channel
q Select memory list screen as described at page 7-7.
w Push [F-6•EDT/BANK] to display the memory edit
screen.
e While pushing and holding [F-1•ROLL], rotate main
dial to select the desired memory channel.
• [M-CH] can also be used.
r Push [F-3•INS] to insert the new channel above the
highlited channel. Or push and hold [F-4•DEL] for 1
sec. to delete the highlited memory channel.
• When inserting a channel, below the channels scroll
down.
• When deleting a channel, remaining channels scroll up.
t Push [EXIT/SET] to return to memory list screen.
• Editing plural channels
q While pushing and holding [F-1•ROLL], rotate main
dial to select the desired memory channel.
• [M-CH] can also be used.
w Push [F-2•BLOCK] to set the selected memory
channel.
• Background color of selected channel changes orange.
• Selected channel number is dysplayed.
e While pushing and holding [F-1•ROLL], rotate main
dial to select another edge channel.
• [M-CH] can also be used.
r Push [F-2•BLOCK] to set the selected memory
channel.
• Background color of selected channels changes orange.
t Operate the following actions, if desired.
• Clear channels:
➥ Push and hold [F-3•CLEAR] for 1 sec. to clear
the selected channels.
• Remaining channels scroll up.
•Move channels:
z While pushing and holding [F-1•ROLL], rotate
main dial to select the channel which you want
to move the selected channels.
• [M-CH] can also be used.
x Push and hold [F-3•MOVE] for 1 sec. to move
the the channels.
• Copy channels:
z While pushing and holding [F-1•ROLL], rotate
main dial to select the channel which you want
to inset the selected channels.
• [M-CH] can also be used.
x Push and hold [F-4•COPY] for 1 sec. to copy
the channels.
y Push [EXIT/SET] to return to memory list screen.
Main dial
[F-1•ROLL] [F-3•CLEAR]
[F-2•BLOCK]
[EXIT/SET]
[F-5•COPY][F-4•MOVE]
Main dial
[F-1•ROLL] [F-3•INS] [EXIT/SET]
[F-6•EDT/BANK][F-4•DEL]
