2-10
2
INSTALLATION AND CONNECTIONS
■ Transceive function
Icom CI-V transceivers or receivers can be connect-
ed via the [REMOTE] jack. The frequency and mode
settings will follow* when either radio is changed.
* When a set frequency is out-of-range for one of the con-
nected transceivers or receivers, the connected radio’s
frequency/mode does not change.
Connect to [REMOTE] jack
[ACC]
Pin 3
Connect [ACC] socket when the IC-
R9500 is connected with transceiver.
This connection mutes the IC-R9500
when transceiver transmits.
• Be sure the “CI-V Transceive” item is turned ON in the others set mode (p. 11-14).

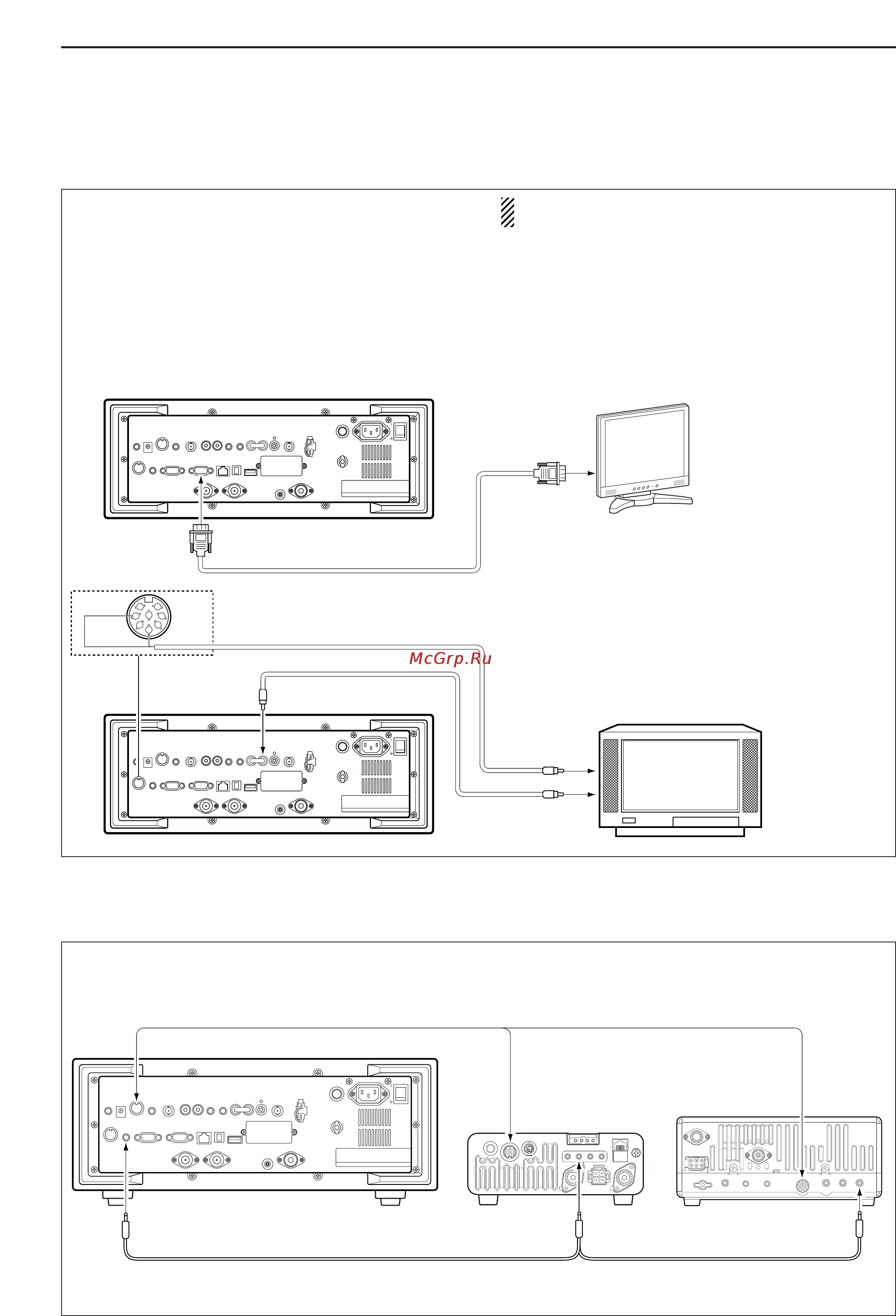

■ Monitor display connection
A monitor display can be connected to the IC-R9500
via the [DATA IN] socket and [EXT-DISPLAY]. You
can monitor the LCD monitor information on a large
size display.
The IC-R9500 includes a picture signal decoder.
When connecting a TV set equipped with a VIDEO IN
jack, you can monitor TV signals such as amateur
TV.
NOTE: Video output from [DATA IN] is available an
NTSC system only.
External Display
Connects a PC-style
monitor display (at least
800×600 resolution).
Video output signal can
be turned ON and OFF
in display set mode.
(p. 11-9)
1
2
3
45
67
8
TV set
Video output signal can be selected
‘VIDEO IN’ or ‘LCD’ in display set (Vid-
eo) mode. (p. 11-25)
*
1
No signals come out from [VIDEO OUT]
for USA versions.
*
2
[EXT-DISPLAY]
VIDEO
GND
[DATA IN] [VIDEO OUT]
[VIDEO IN]
*
2
TV signal only
*
1
LCD output including TV signal
or
