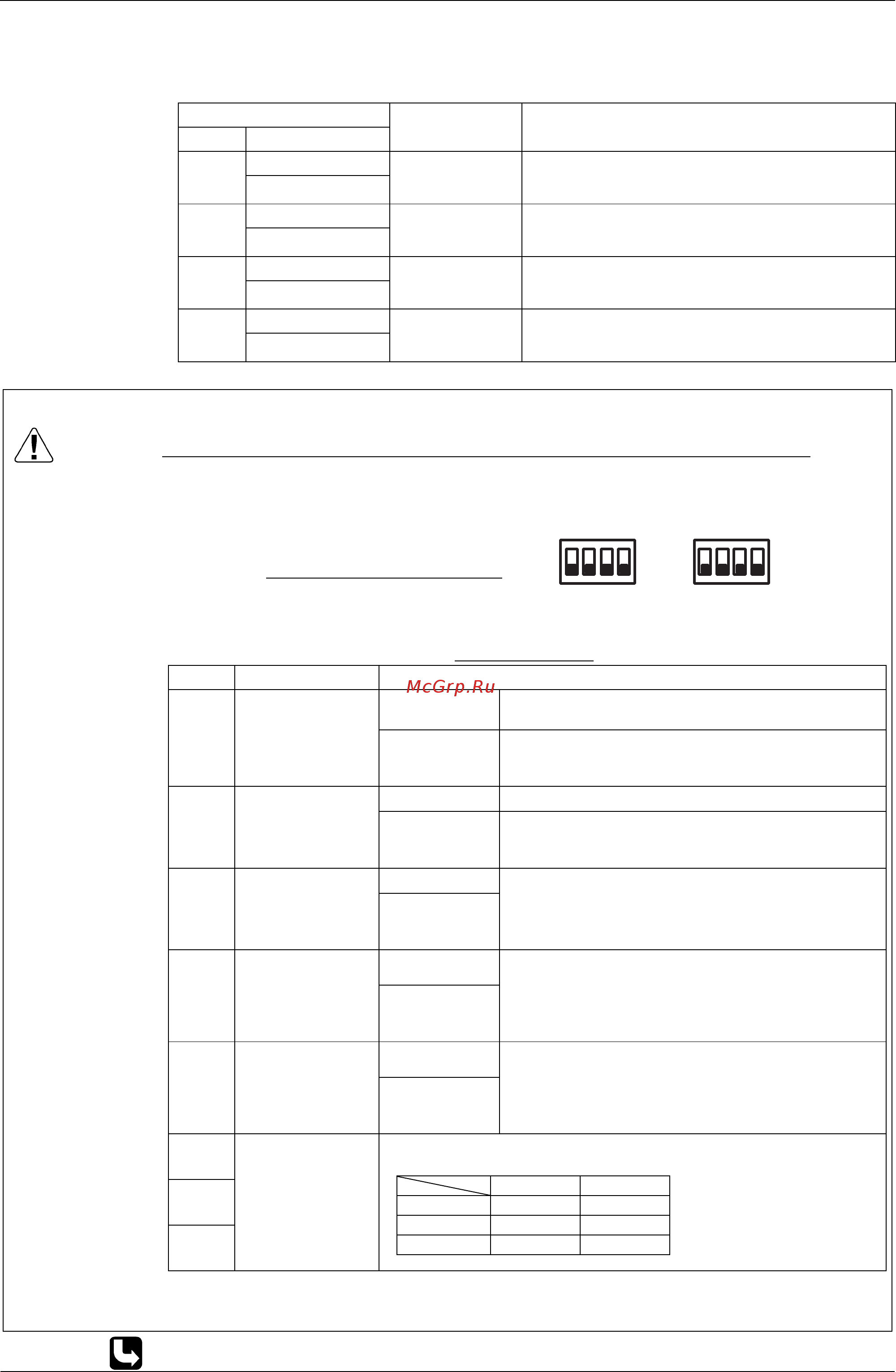

Field Setting Si39-502A
108 Test Operation
Setting by dip switches
Using dip switches on the PC board enables field setting shown below. However, make no
changes of factory settings except for DS1-1.
Refer “DS1-1~4, DS2-1~4 setting detail” on next page.
Dipswitch
Setting item Description
No. Setting
DS1-1
ON
Cool / Heat select
Used to set cool / heat select by remote controller
equipped with outdoor unit.
OFF (Factory set)
DS1-2
~DS1-4
ON
Not used Do not change the factory settings.
OFF (Factory set)
DS2-1
~4
ON
Not used Do not change the factory settings.
OFF (Factory set)
DS3-1,
2
ON
Not used Do not change the factory settings.
OFF (Factory set)
Caution
Setting at replacement by spare PC board
DIP switch Setting after changing the main P.C.Board(A1P) to spare parts P.C.B.
After the replacement by the spare PC board, be sure to make settings shown below.
When you change the main P.C.Board(A1P) to spare parts P.C.B., please carry out the following
setting.
DIP Switch Detail
∗ If the DS1-1~4, DS2-1~4 setting has not been carried out, error code “UA” is displayed and unit
can not be operated.
DS No. Item Contents
DS1-1 Cool/Heat change
over setting
ON COOL/HEAT setting is made with the use of a remote
controller mounted to the outdoor unit.
OFF
(Factory
setting of spare
PC board)
COOL/HEAT setting is not made with the use of a
remote controller mounted to the outdoor unit.
DS1-2 Power supply
specification
ON 200V (mainly domestic Japan)
OFF
(Factory
setting of spare
PC board)
400V (mainly overseas)
DS1-3 Cooling only/Heat-
pump setting
ON Make no changes of factory settings of the spare PC
board.
OFF
(Factory
setting of spare
PC board)
DS1-4 Model setting
ON
Make the following settings according to models of
outdoor units. (All models are set to OFF at factory.)
OFF
(Spare parts
PC board)
DS2-1 Domestic Japan or
overseas setting
ON
Make no changes of factory settings of the spare PC
board.
OFF
(Spare parts
PC board)
DS2-2 Model setting
DS2-3
DS2-4
1 2 3 4 1 2 3 4
DS1 DS2
ON
OFF
ON
OFF
Initial conditions of dip switches
Make the following settings according to models of outdoor units.
(All models are set to OFF at factory.)
RXYQ8M
RXYQ10M
DS2-2 OFF ON
DS2-3 ON ON
DS2-4 OFF OFF
