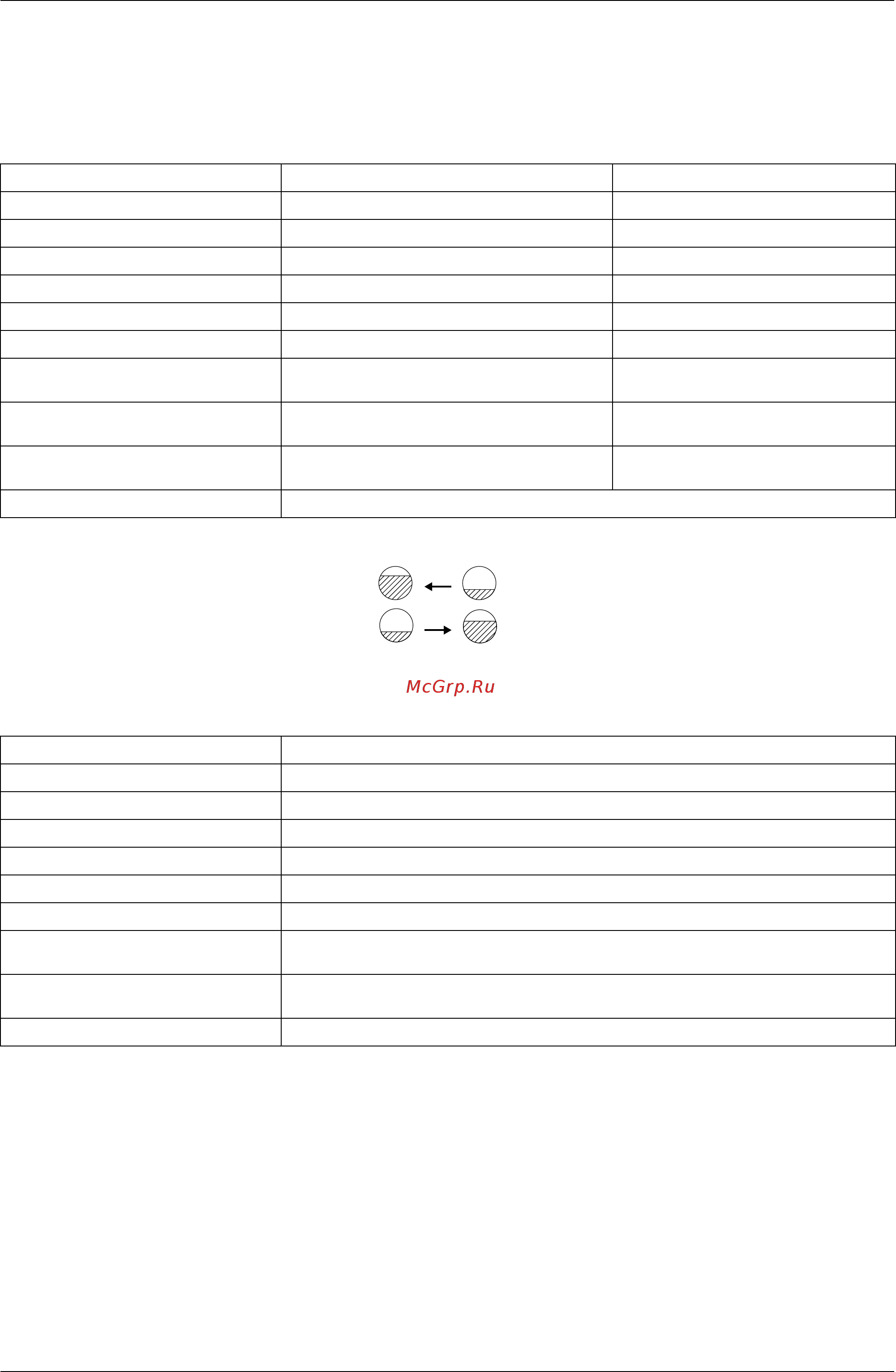

Si39-502A Special Control
Function 67
3.6.3 Stopping Operation of Slave Units During Master Unit is in Operation
with Multi-Outdoor-Unit System
While the master unit is in operation, this mode is used to set the refrigerant flow rate to a required level using a slave
unit in the stopped mode.
In cooling operation: The system operates in Mode A or Mode B listed in the table below.
The changeover operation for mode A and B is performed for the reason that the required refrigerant amount varies
depending on the indoor unit operation capacity.
In heating operation: The system operates with following Mode.
Actuator Mode-A operation Mode-B operation
Compressor OFF OFF
Outdoor unit fan STEP4 OFF
Four way valve OFF Holds ON
Main motorized valve (EV1) 150 pls to 300 pls 0 pls
Subcooling motorized valve (EV2) 0 pls 0 pls
Hot gas bypass valve (SVP) ON ON
Receiver gas discharging valve
(SVG)
OFF OFF
Non-operating unit liquid pipe stop
valve (SVSL)
OFF ON
Mode transition conditions To Mode B when Tc
-
Tl >0.27×(Tc
-
Ta) +6
To Mode A when gas shortage signal
is sent from indoor unit
Ending conditions Slave units are required to operate.
Actuator Operation
Compressor OFF
Outdoor unit fan OFF
Four way valve ON
Main motorized valve (EV1) 0 pls
Subcooling motorized valve (EV2) 0 pls
Hot gas bypass valve (SVP) OFF
Receiver gas discharging valve
(SVG)
OFF
Non-operating unit liquid pipe stop
valve (SVSL)
OFF
Ending conditions Slave units are required to operate.
Mode A : Operating unit collects refrigerant.
Mode B : Stopping unit storage refrigerant.
Operating
unit
Stopping
unit
∗ Mode A or B operation
