Daikin RXYQ10MY1K [188/310] Outdoor unit refrigerant overcharged
![Daikin RXYQ10MY1K [188/310] Outdoor unit refrigerant overcharged](/views2/1714922/page188/bgbc.png)

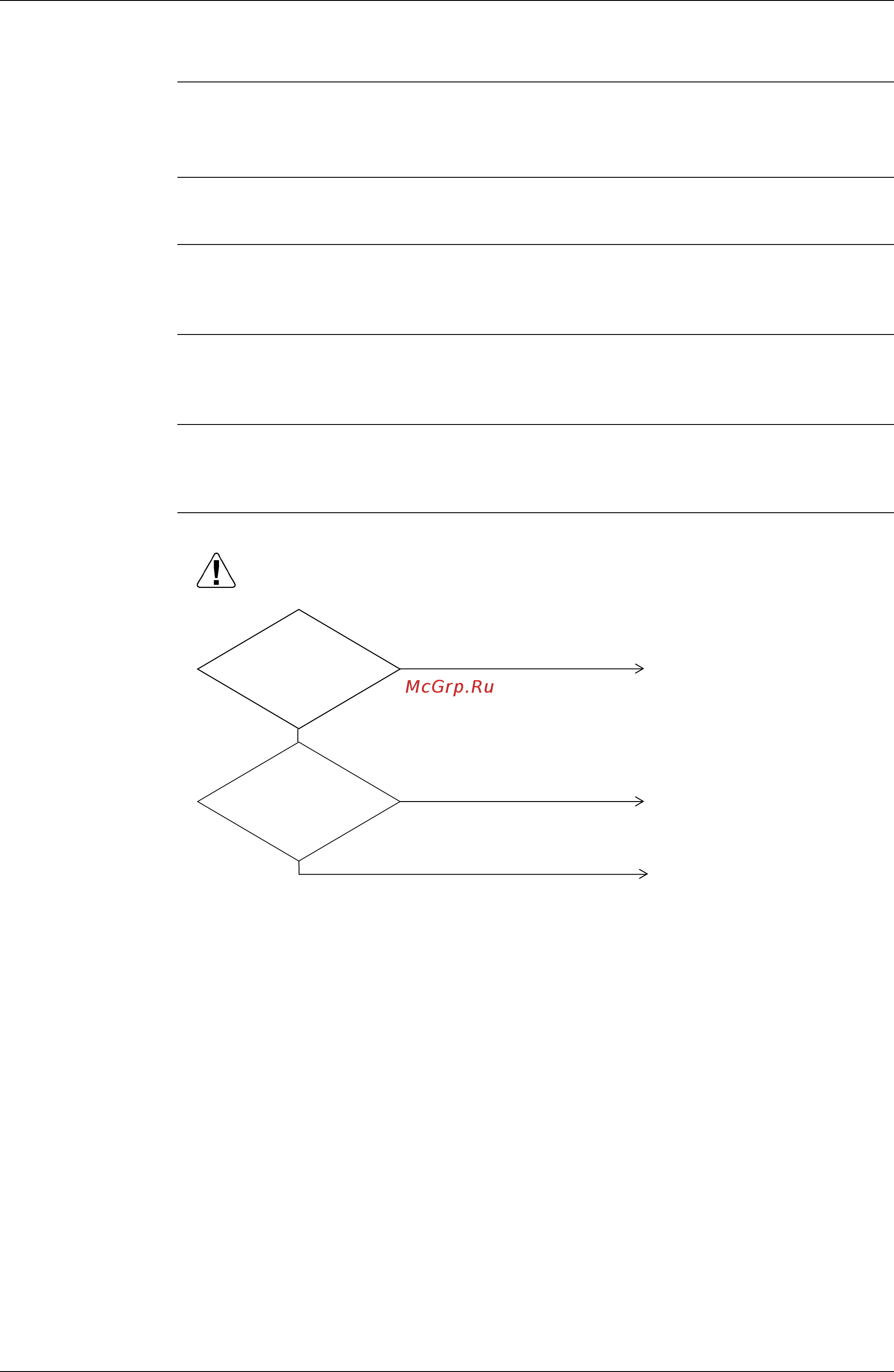

Si39-502A Troubleshooting by Indication on the Remote Controller
Troubleshooting 177
3.21
“
F6
”
Outdoor Unit: Refrigerant Overcharged
Remote
Controller
Display
F6
Applicable
Models
RXYQ8~30MY1K (E), YLK (E)
Method of
Malfunction
Detection
Refrigerant overcharge is detected from the suction pipe and subcooling heat exchanger gas
pipe temperature during check operation.
Malfunction
Decision
Conditions
When the suction pipe and subcooling heat exchanger gas pipe temperature is lower than
evaporating temperature during check operation.
Supposed
Causes
Refrigerant overcharge
Disconnection of the suction pipe thermistor
Disconnection of the subcooling heat exchanger gas pipe thermistor
Troubleshooting
(V2797)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Are the
suction pipe and
subcooling heat exchanger
gas pipe thermistor
installed on pipes
correctly?
Is the
characteristic of the
suction pipe and subcooling
heat exchanger gas
pipe thermistor
normal?
Refrigerant overcharged.
YES
NO
NO
Replace thermistor.
Install thermistor correctly.
YES
