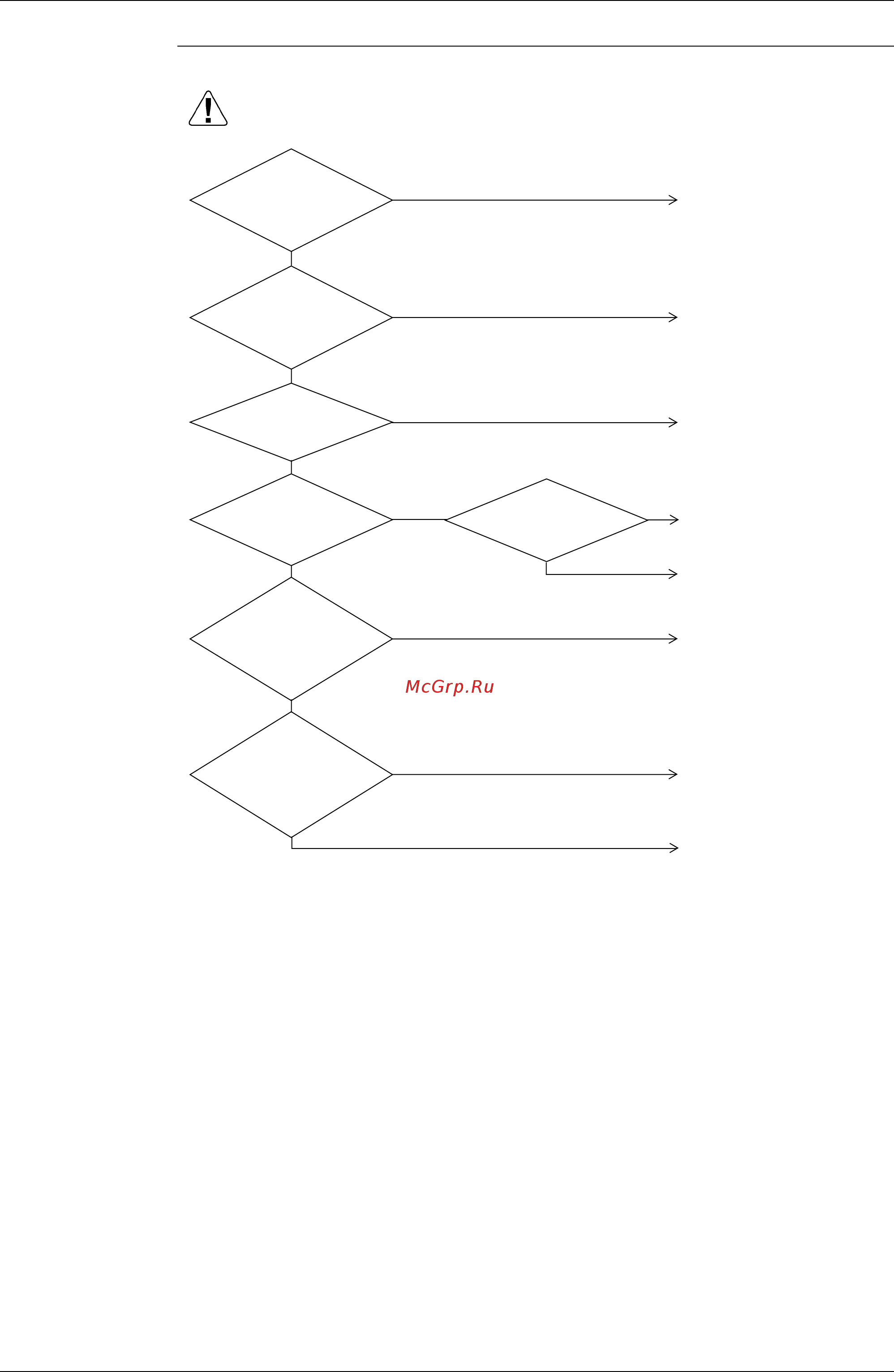

Si39-502A Troubleshooting (OP: Schedule Timer)
Troubleshooting 221
Troubleshooting
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
(V2836)
Is
the power supply
turned on for indoor
units displaying
malfunction?
Is
transmission wiring
disconnected or wired
incorrectly?
Is
the transmission
wiring with the master
controller disconnected or
wired incorrectly?
Is the
master controller's
connector for setting
master controller
disconnected?
Set the group No. correctly.
Replace indoor unit PC board.
Fix the wiring correctly.
Fix the wiring correctly.
Connect the connector
correctly.
Replace the schedule timer.
Reset power supply
simultaneously for all optional
controllers for centralized
control.
NO
YES
NO
YES
YES
NO
NO
Turn indoor unit's power
supply.
YES
NO
NO
YES
YES
YES
NO
Has
an indoor unit
once connected been
removed or its address
changed?
Is the group
No. of malfunctioning
indoor units set?
Is
transmission with all
indoor units
malfunctioning?
