Si39-502A Troubleshooting by Indication on the Remote Controller
Troubleshooting 171
Troubleshooting
Note: Abnormal case

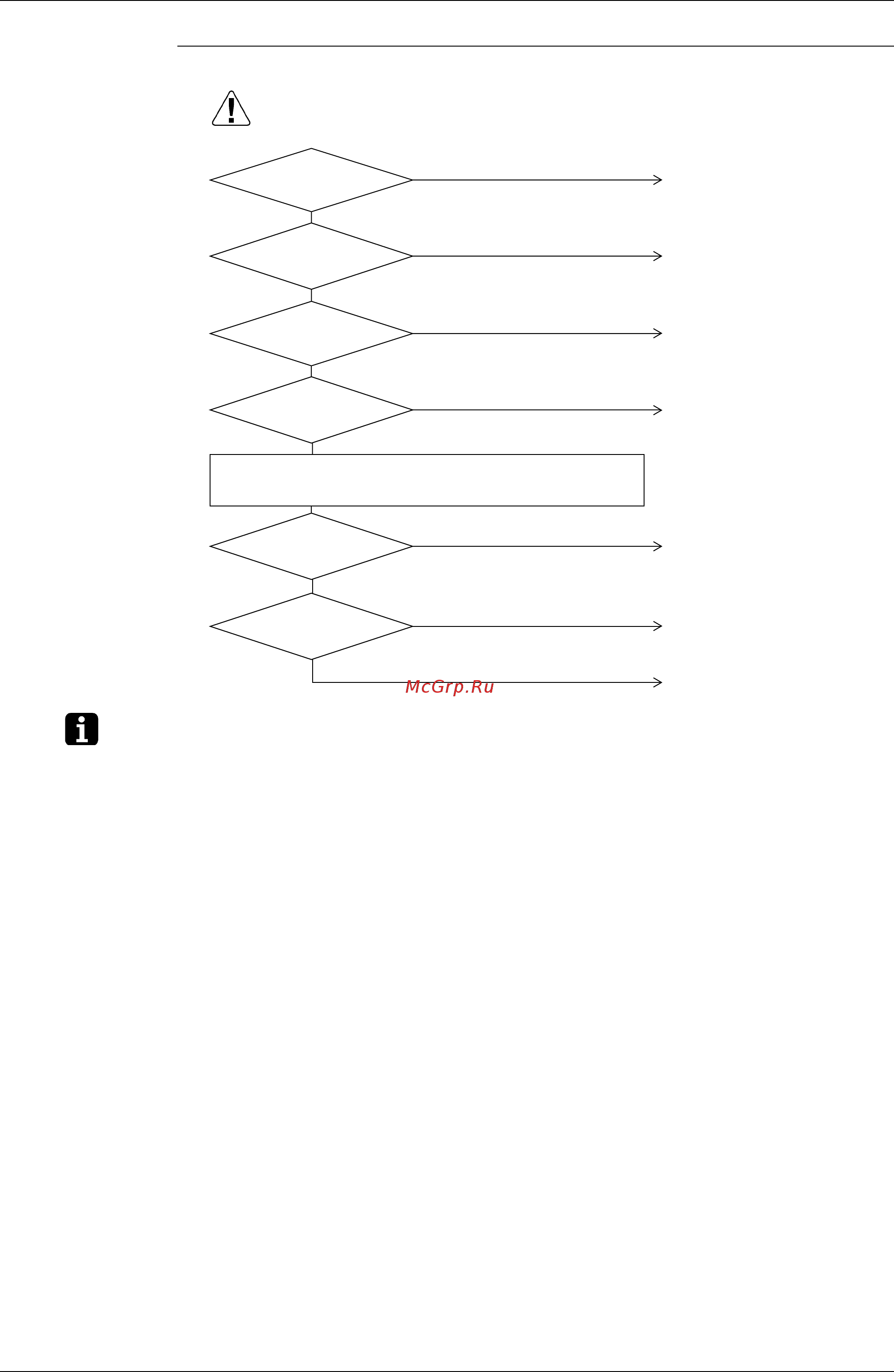

The current sensor value is 0 during STD compressor operation.
The current sensor value is more than 15.0A during STD compressor operation.
Is the stop valve open?
NO
Obstacle
exists around the air
discharge port.
YES
Is the power
supply voltage
normal?
NO
NO
NO
YES
NO
Is the
magnetic switch
(K2M, K3M)
normal?
Is
above wiring
correct?
NO
Is
current sensor
correct?
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Check the wiring from power supply ~ current sensor (A5P, A6P) ~
MgS (K2M, K3M) ~ compressor
Open the stop valve.
Remove the obstacle.
Correct the power voltage.
Replace the magnetic
switch.
Correct wiring.
Replace the corresponding
current sensor
(A5P or A6P).
Replace compressor.
(V3051)
YES
YES
YES
YES
