Troubleshooting by Indication on the Remote Controller Si39-502A
178 Troubleshooting
3.22
“
H7
”
Outdoor Unit: Abnormal Outdoor Fan Motor Signal
Remote
Controller
Display
H7
Applicable
Models
RXYQ8~30MY1K (E), YLK (E)
Method of
Malfunction
Detection
Detection of abnormal signal from fan motor.
Malfunction
Decision
Conditions
In case of detection of abnormal signal at starting fan motor.
Supposed
Causes
Abnormal fan motor signal (circuit malfunction)
Broken, short or disconnection connector of fan motor connection cable
Fan Inverter PC board malfunction

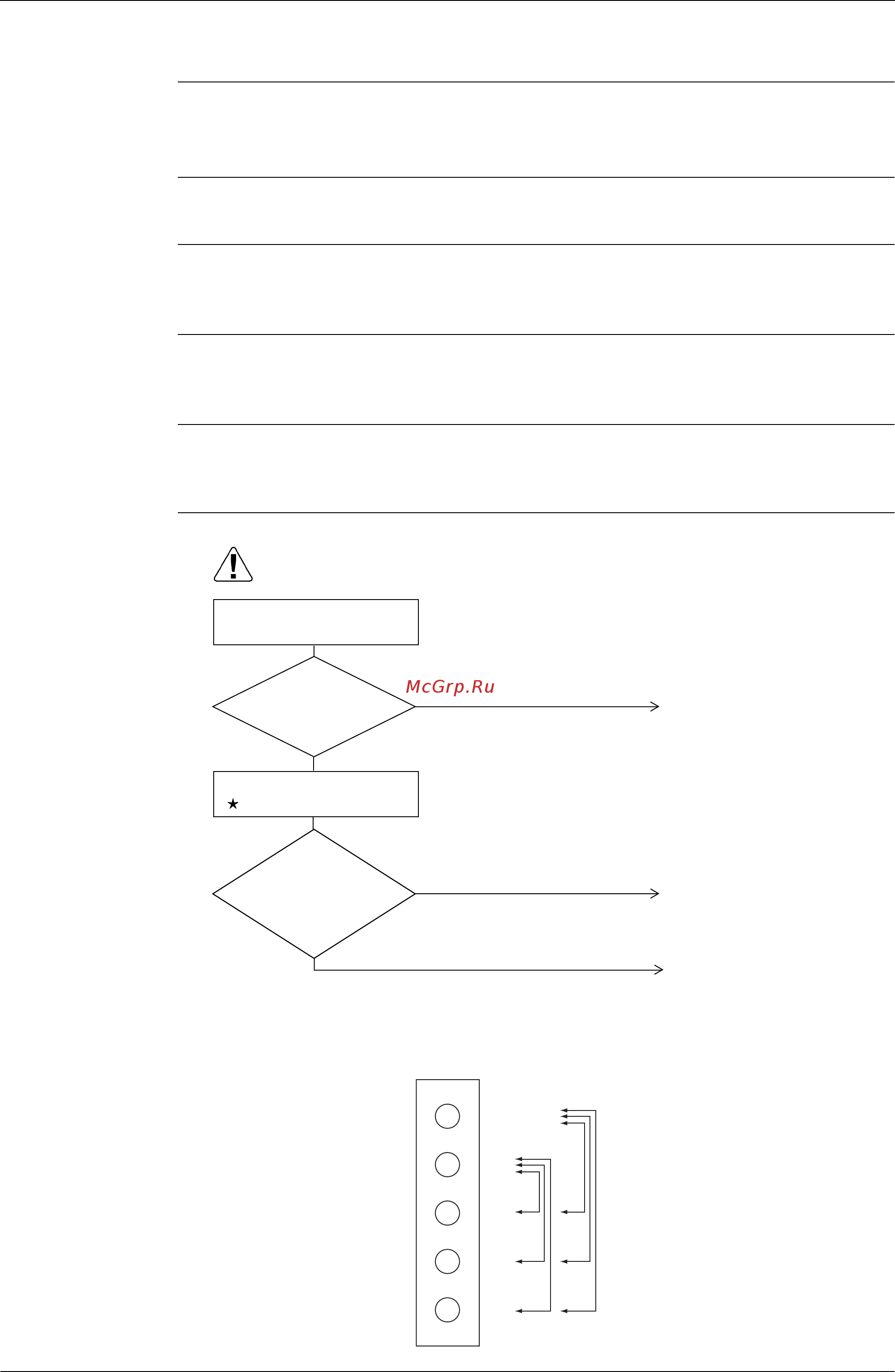

Troubleshooting
1: Disconnect connector (X2A) and measure the following resistance.
(V3069)
Turn power off.
Check of fan motor connector.
( 1)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Is the fan
motor connector
X2A connected to PC board
for Fan inverter
correctly?
The
resistance of
fan motor read wire
connector pins between
Vcc-UVW and
GND-UVW
balanced?
Replace fan motor.
Replace fan inverter PC Board.
(A3P)
YES
NO
Connect correctly.
NO
YES
X2A
GND
(V2799)
Measure the
resistance
between Vcc-
UVW and
GND-UVW.
5 Gray
Vcc
W
V
U
4 Pink
3 Orange
2 Blue
1 Yellow
