Piping Installation Point Si39-502A
272 Appendix
5. Piping Installation Point
NOTE
• The outdoor unit multi connection piping kit that is sold separately as an option (BHFP22M90 ·
135K) is necessary for the multi installation of outdoor units.
See the installation manual attached to the kit with attention to installation restrictions described in
“connecting the refrigerant piping” when installing.

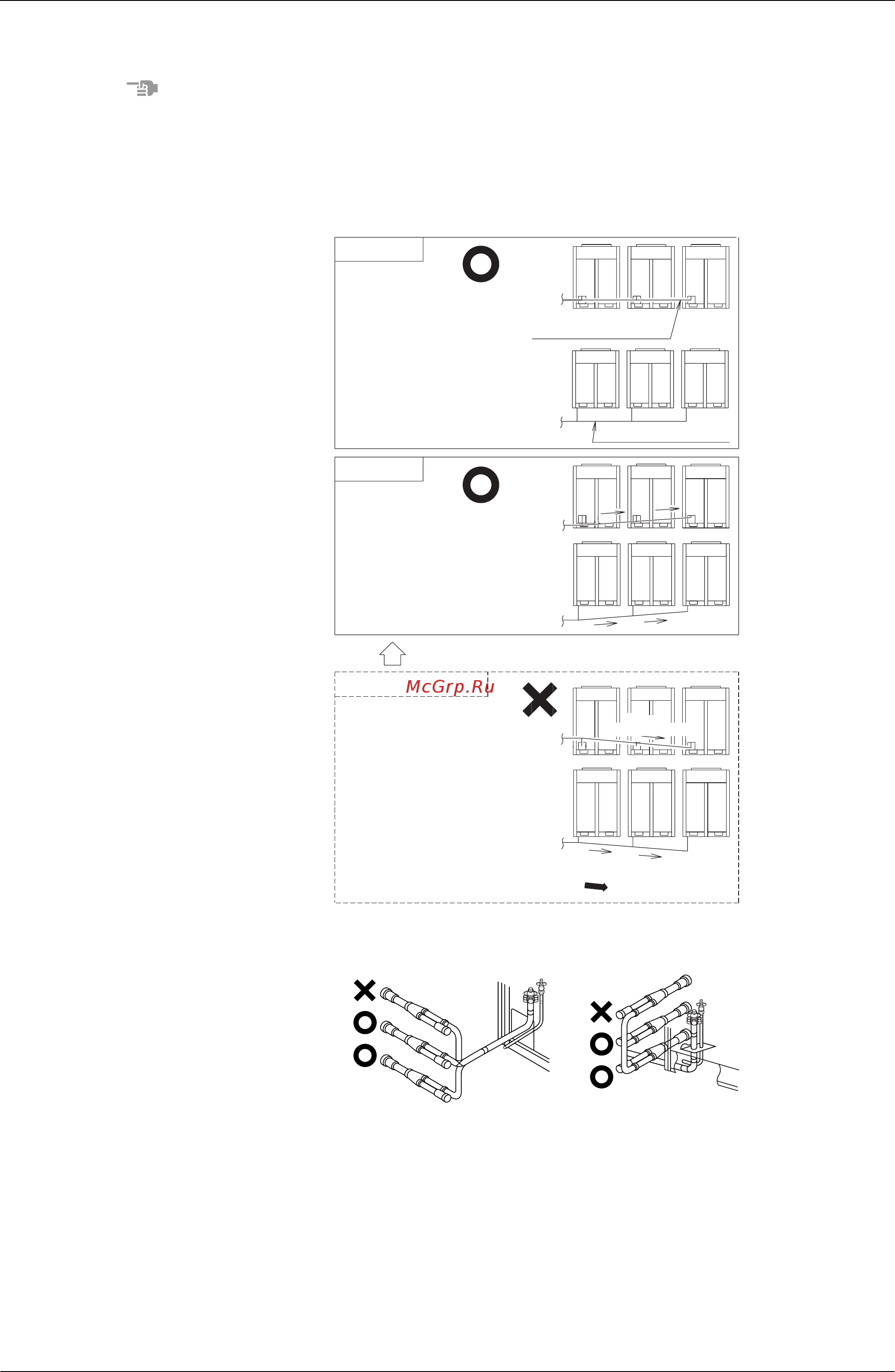

1. To avoid the risk of oil detention in the piping between the outdoor units must be routed level
or slightly upward.
2. To avoid the risk of oil detention in the stopping unit, always connect the shutoff valve and
the piping between outdoor units as shown in the figure A or figure B.
Pattern 1
Pattern 2
Prohibited pattern
Change to pattern 1 or pattern 2
to indoor unit
Piping between outdoor units
Piping between outdoor units
to indoor unit
to indoor unit
to indoor unit
to indoor unit
to indoor unit
Downward inclination
Downward inclination
Oil remains in piping
A
B
A
B
