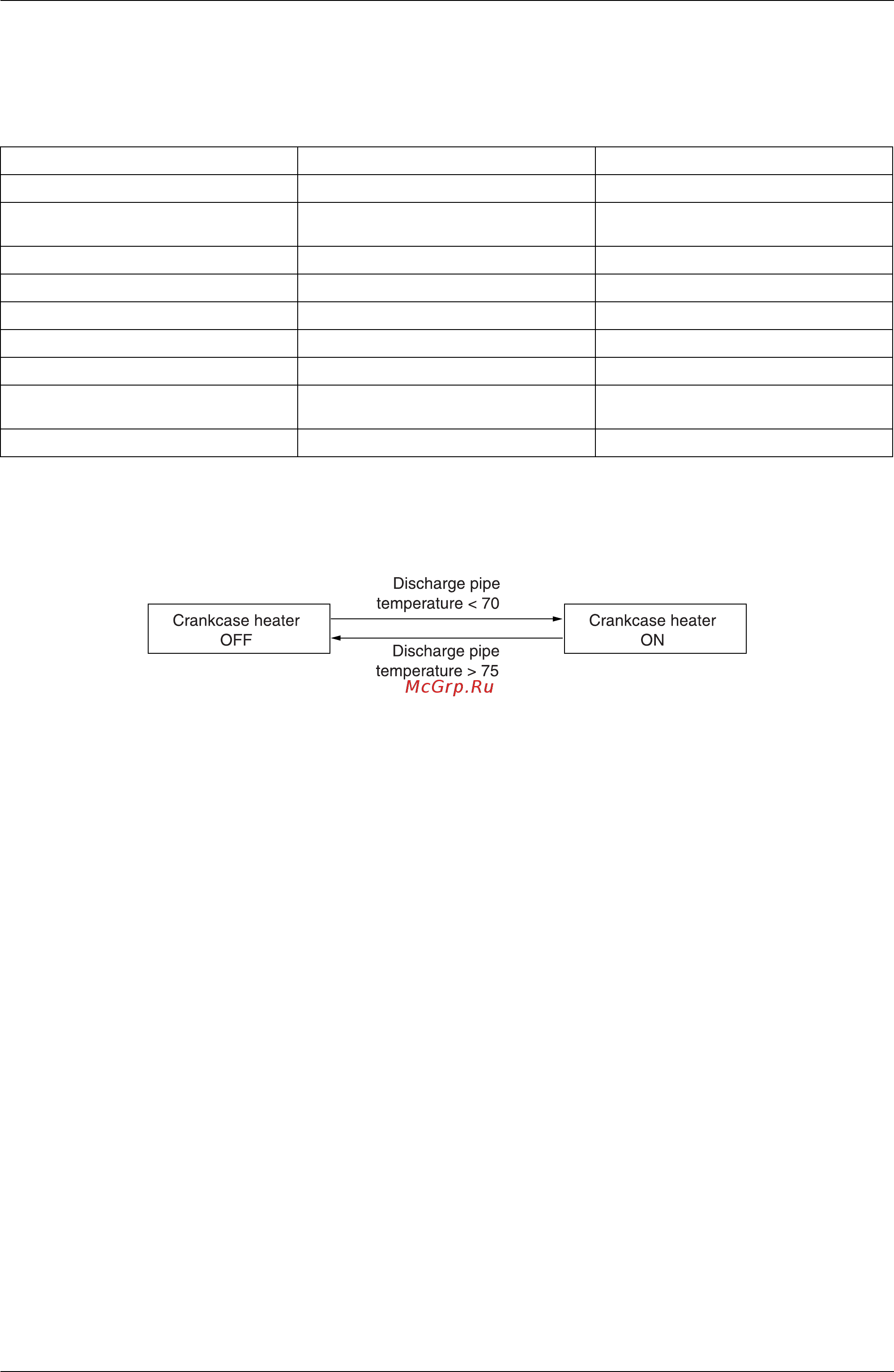

Si39-502A Special Control
Function 65
3.5 Standby
3.5.1 Restart Standby
Used to forcedly stop the compressor for a period of five minutes, in order to prevent the frequent ON/OFF of the
compressor and equalize the pressure within the refrigerant system.
3.5.2 Crankcase Heater Control
In order to prevent the refrigerant from melting in the compressor oil in the stopped mode, this mode is used to control
the crankcase heater.
Actuator Operation Remarks
Compressor OFF
Outdoor unit fan
Ta>30°C: STEP4
Ta≤30°C: OFF
Four way valve Holds
Main motorized valve (EV1) 0 pls
Subcooling motorized valve (EV2) 0 pls
Hot gas bypass valve (SVP) OFF
Receiver gas discharging valve (SVG) OFF
Non-operating unit liquid pipe stop
valve (SVSL)
ON
Ending conditions 5 min.
˚C
˚C
