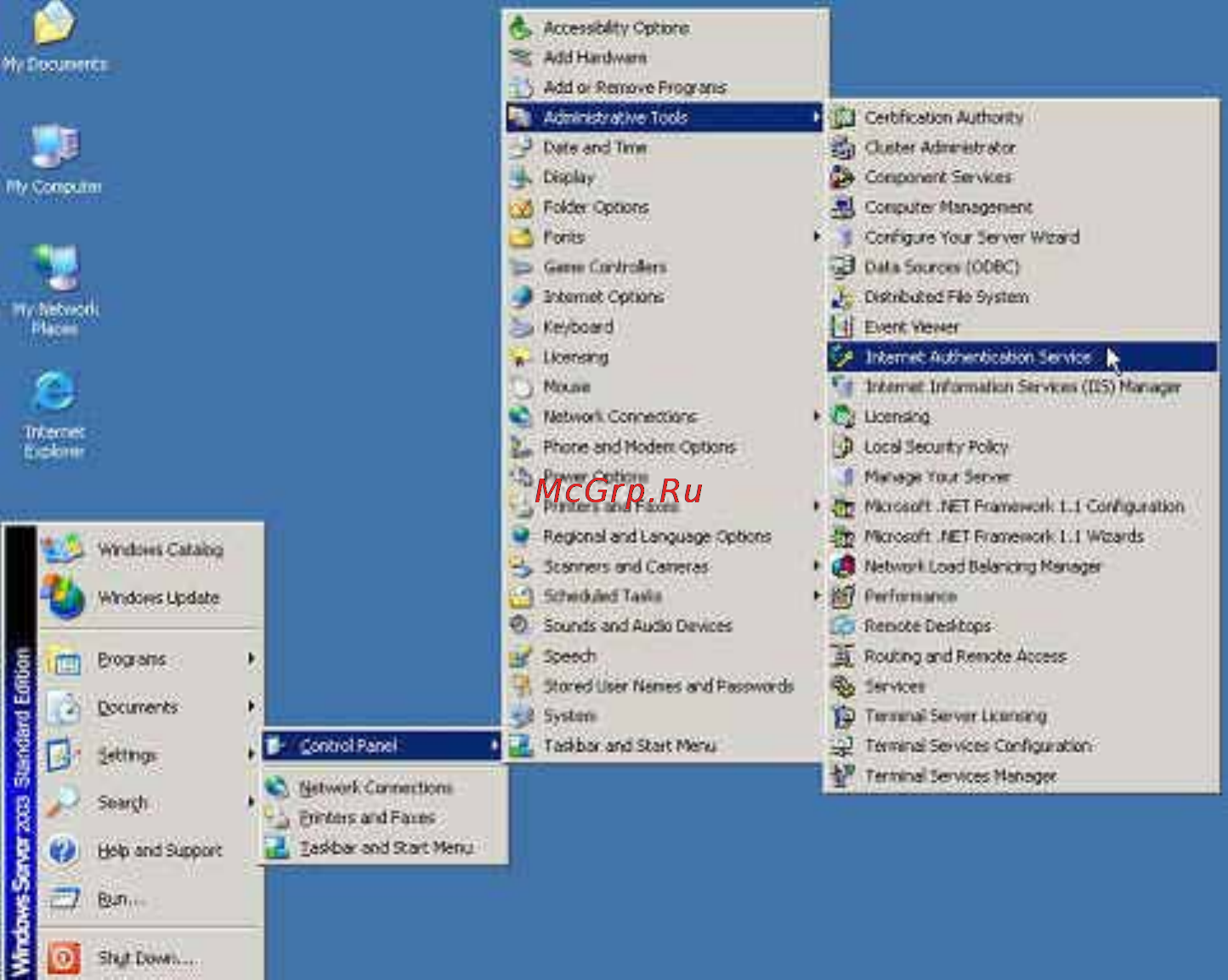

STEP 4﹒Click [Start] Æ [Control Panel] Æ [Administrative Tools], Choose [Internet

Authentication Service]

Choose Internet Authentication Service

９９
