Planet SG-1000 [63/262] Under dhcp situation assign the specific ip to static users and restrict them to access ftp net service only through policy

5.1 Under DHCP situation, assign the specific IP to static users and

restrict them to access FTP net service only through policy

STEP 1﹒Select LAN in Address and enter the following settings:

 Click New Entry button

 Name: Enter Rayearth

 IP Address: Enter 192.168.3.2

 Netmask: Enter 255.255.255.255

 MAC Address : Enter the user’s MAC Address（00:B0:18:25:F5:89）

 Select Get static IP address from DHCP Server

 Click OK

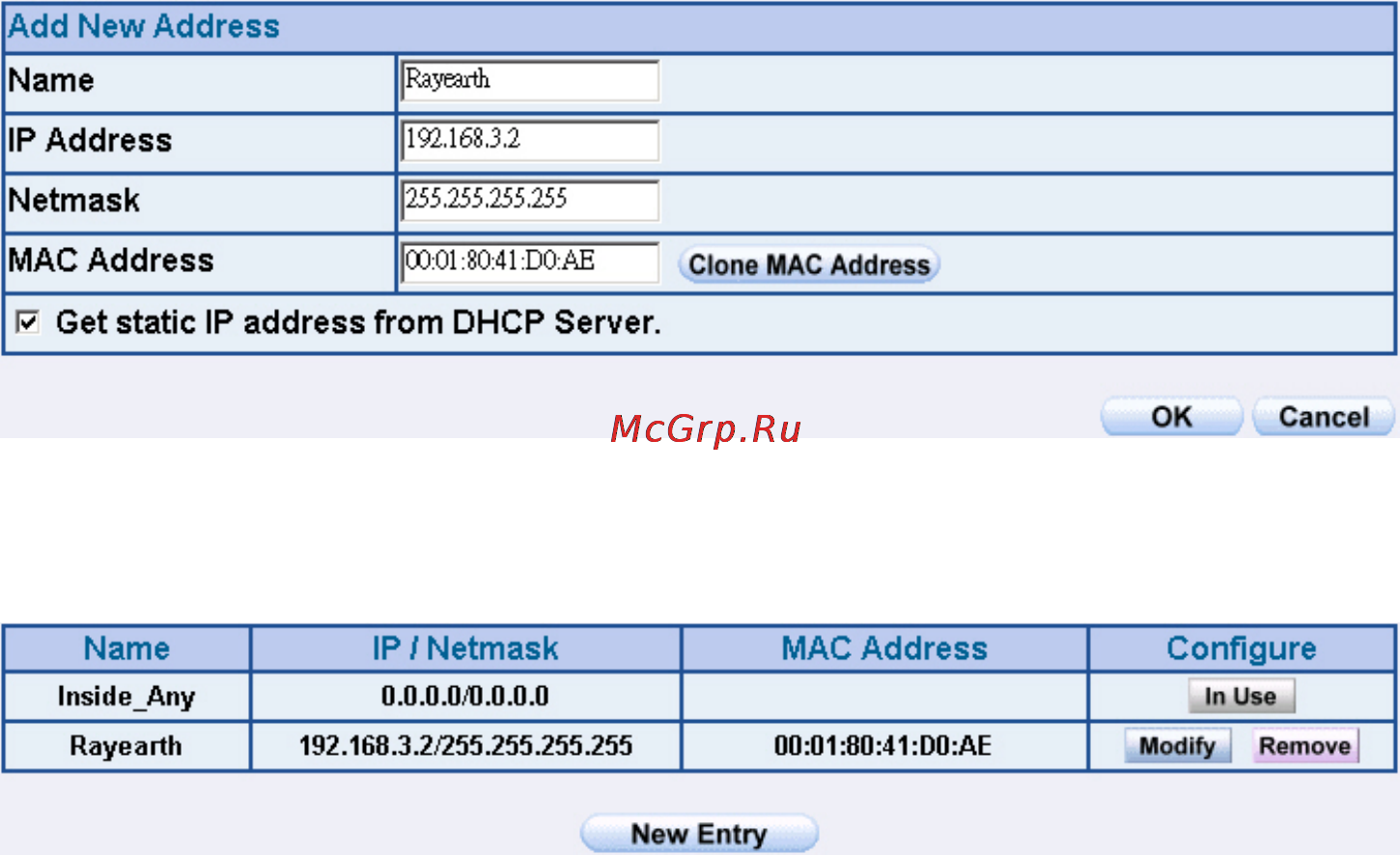

Setting LAN Address Book Web UI

Complete the Setting of LAN

６２
