Planet SG-1000 [197/262] Forbid the users to access to specific network take specific wan ip and content blocking for example

Forbid the users to access to specific network. (Take specific WAN IP

and Content Blocking for example)

STEP 1﹒Enter the following setting in URL Blocking, Script Blocking, P2P

Blocking, IM Blocking, and Download Blocking in Content Blocking

function:

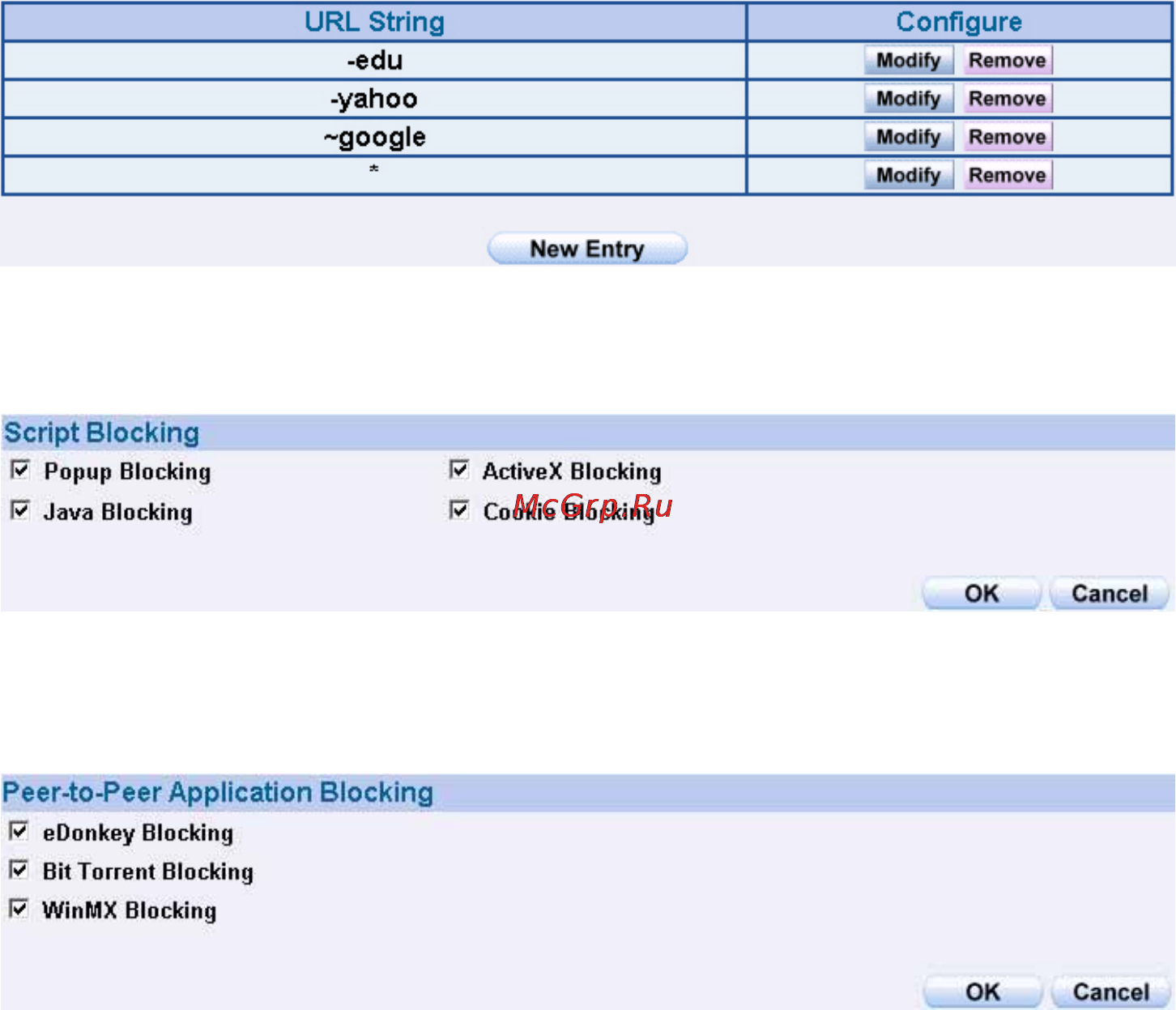

URL Blocking Setting

Script Blocking Setting

P2P Blocking Setting

１９６
