Инструкция по эксплуатации Страница: 73

Planet SG-1000 [73/262] Allow external user to communicate with internal user by voip through policy voip port tcp 1720 tcp 15328 15333 udp 15328 15333

6.1 Allow external user to communicate with internal user by VoIP

through policy. (VoIP Port: TCP 1720, TCP 15328-15333, UDP 15328-

15333)

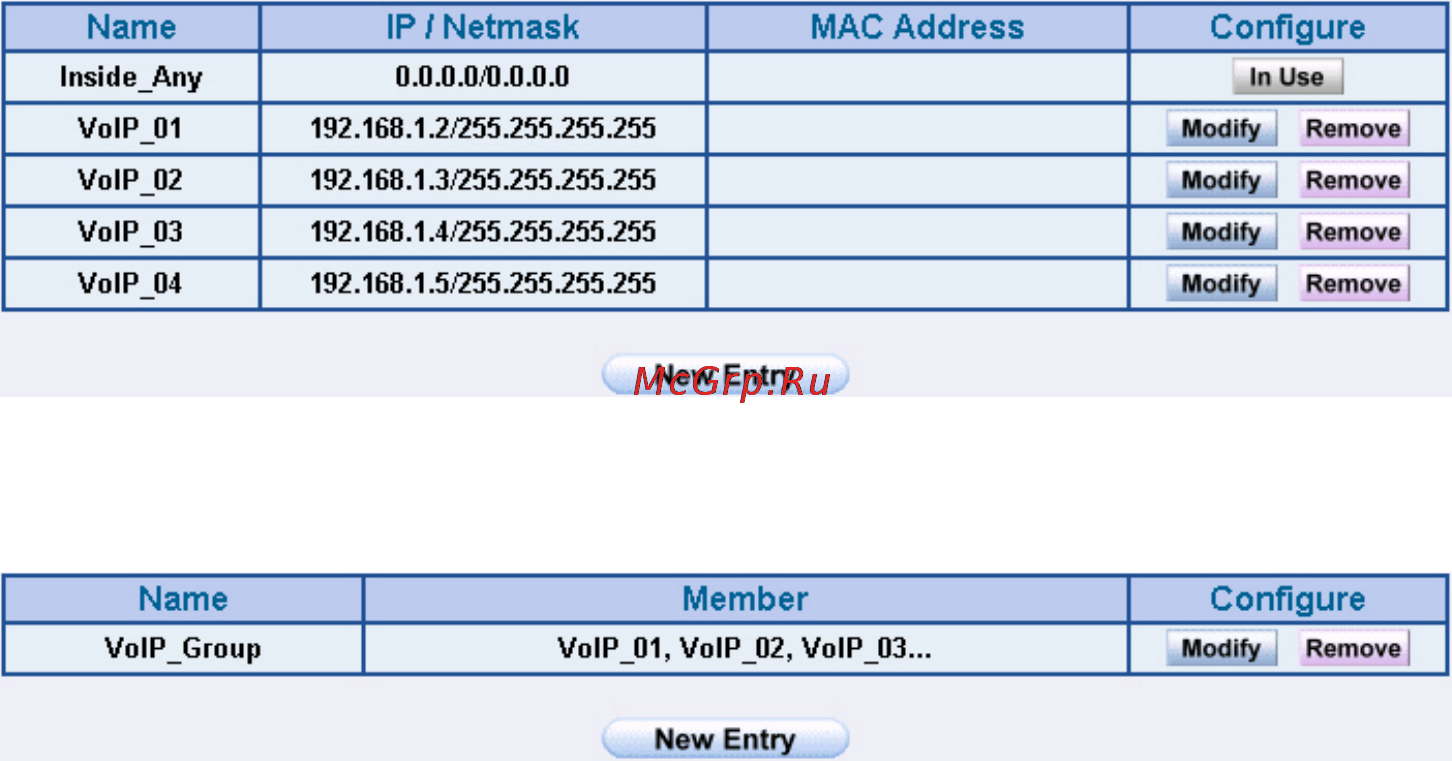

STEP 1﹒Set LAN and LAN Group in Address function as follows:

Setting LAN Address Book Web UI

Setting LAN Group Address Book Web UI

７２
