3.8 Language

Select the Language version (English Version/ Traditional Chinese Version or

Simplified Chinese Version) and click OK.

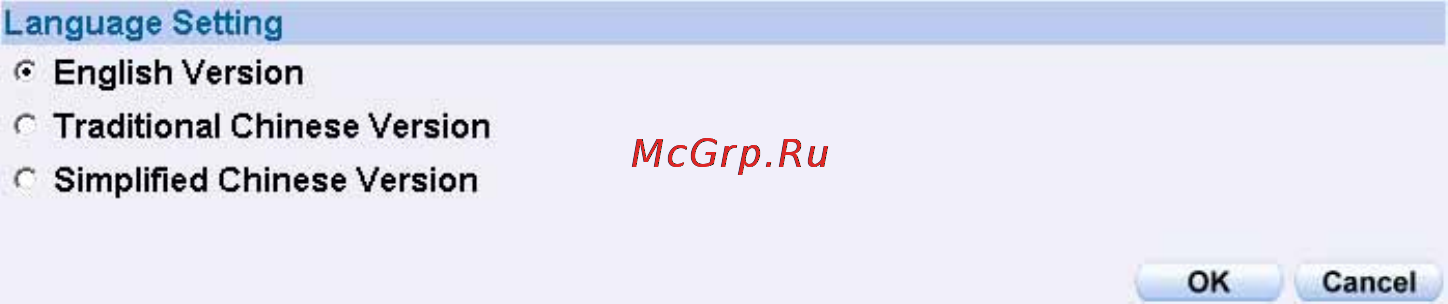

Language Setting Web UI

４２
