18.1 WAN Statistics
STEP 1﹒Enter WAN in Statistics function, it will display all the statistics of
Downstream/Upstream packets and Downstream/Upstream record that pass
WAN Interface.

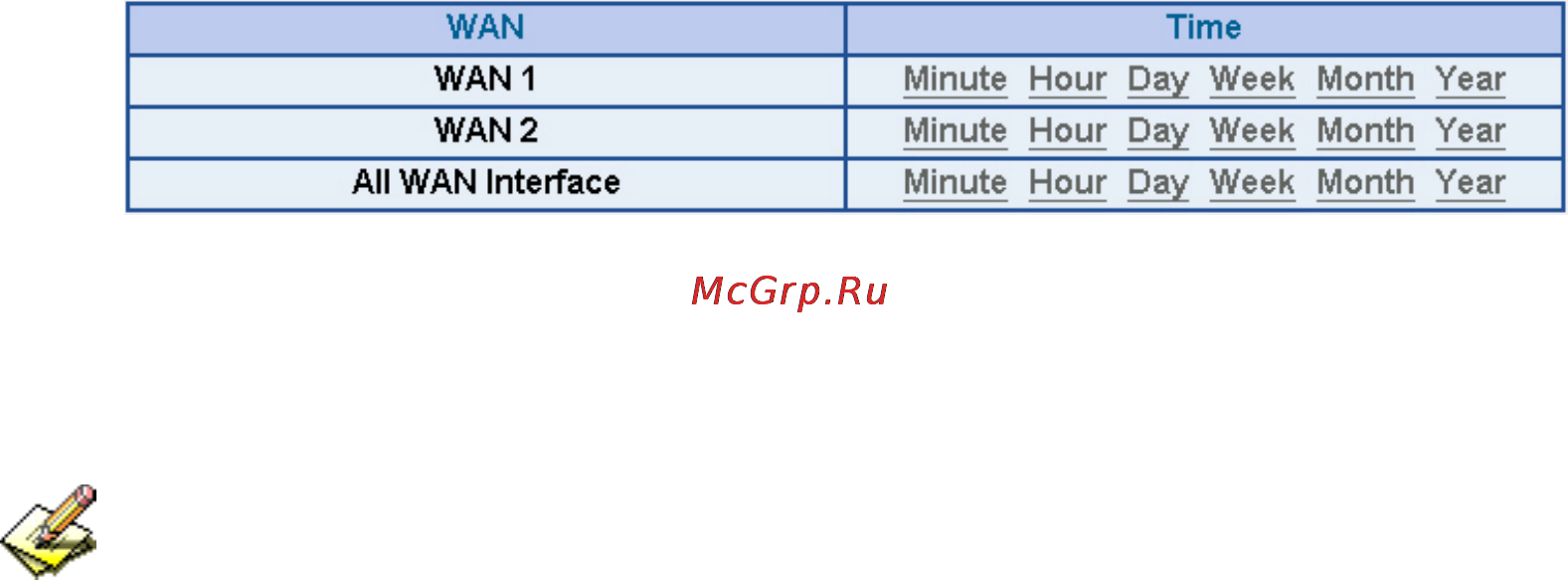

WAN Statistics function
Time: To detect the statistics by minutes, hours, days, months, or years.
WAN Statistics is the additional function of WAN Interface. When enable WAN
Interface, it will enable WAN Statistics too.
STEP 2﹒In the Statistics window, find the network you want to check and click
Minute on the right side, and then you will be able to check the Statistics
figure every minute; click Hour to check the Statistics figure every hour;
click Day to check the Statistics figure every day; click Week to check the
Statistics figure every week; click Month to check the Statistics figure every
month; click Year to check the Statistics figure every year.
